Ubiquiti Networks

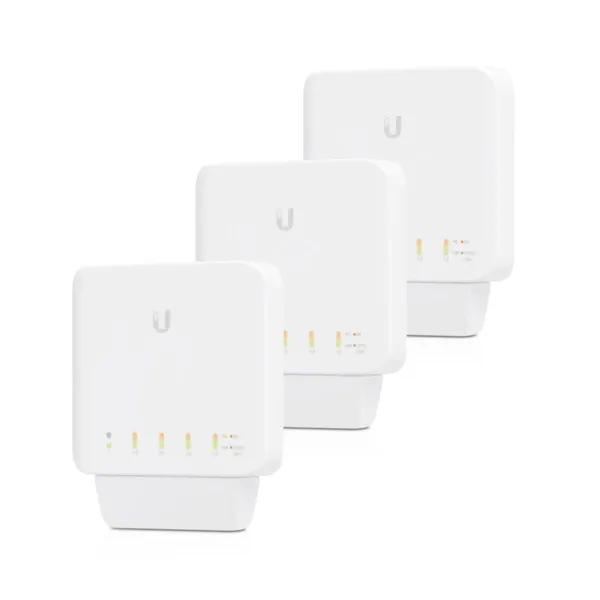

Ubiquiti USW-Flex UniFi Switch Flex 46W 5-Port 802.3af 3-Pack

MPN: USW-FLEX-3

SKU: UBI-USW-FLEX-3

$280


  • (1) GbE, 802.3bt PoE++ RJ45 input

  • (4) GbE, 802.3at PoE+ RJ45 ports

  • Up to a 46W total PoE supply*

  • Weatherproof design

  • Multiple mounting options

Availability Available 2 in stock.
Description
<p>USW-FLEX</p> <p>Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.</p> <p>The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options.</p> <p>Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.</p> <p>&nbsp;</p>
USW-FLEX
Dimensions122.5 x 107.1 x 28.0 mm
(4.82 x 4.22 x 1.10")
Weight230 g
(8.11 oz)
Networking Interfaces(5) 10/100/1000 Mbps RJ45 Ports
Management InterfaceEthernet In-Band
Power Method (Port 1)
PoE Mode 1:
PoE Mode 2:
PoE Mode 3:

802.3af/at (Pins 1, 2+; 3, 6-)
802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
54V / 1.1A PoE Adapter
PoE Out (Ports 2-5)802.3af (Pins 1, 2+; 3, 6-)
Max. Power Consumption (Excluding PoE Output)7W
Supported Voltage Range
802.3af Mode
802.3at/bt Mode

44V - 57V
50V - 57V
LEDs
System
RJ45 Data Ports

Status
PoE; Link/Speed/Activity
ESD/EMP Protection± 16kV Air, ± 16kV Contact
Operating Temperature-40 to 55° C
(-40 to 131° F)
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC
