Ubiquiti Networks

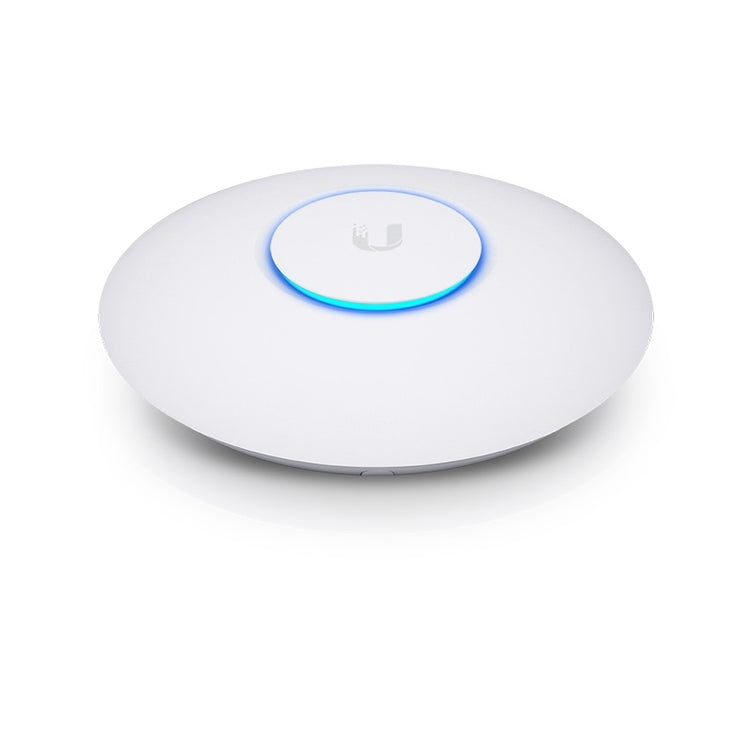

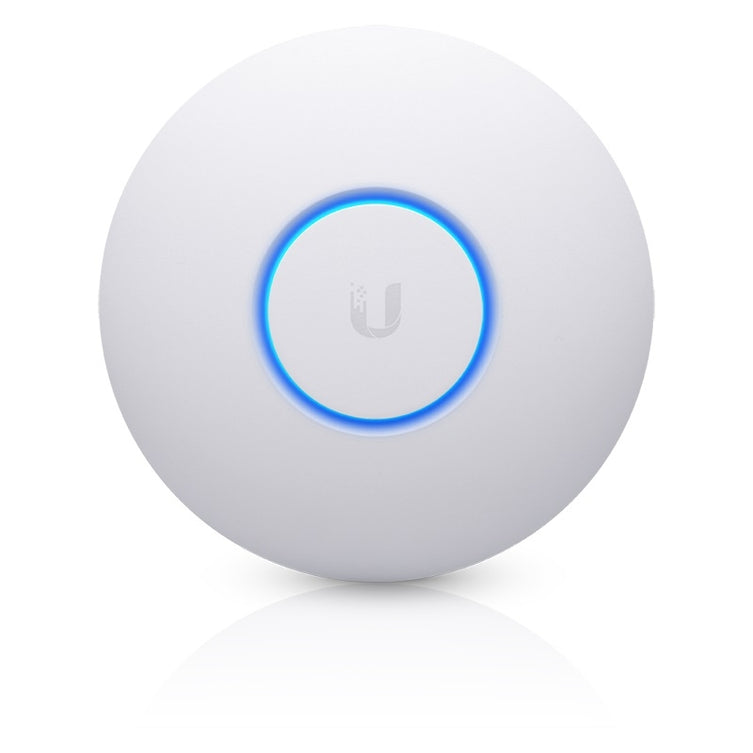

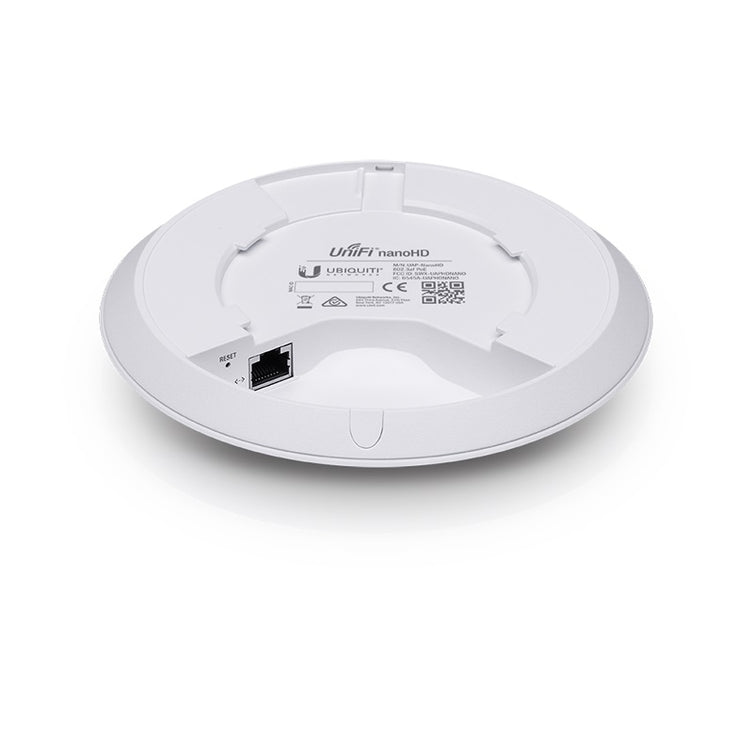

Ubiquiti UniFi Compact 802.11ac Wave 2 MU-MIMO Enterprise Access Point (3-Pack)

MPN: UAP-NANOHD-3-US

SKU: UBI-UAP-NANOHD-3-US

$527
Availability
Description

US Version, 3 Pack, PoE Injector Not Included



Deploy the UniFi nanoHD AP in high-density environments requiring maximum
wireless performance and minimal footprint. The UniFi nanoHD AP features
simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3af PoE
compatibility.



  • Low-Profile Mounting: The UniFi nanoHD
    AP’s low-profile ceiling mount (sold separately) allows you to seamlessly
    integrate the AP into its environment. Same mount as UAP-AC-Lite.

  • Compact Form Factor: The compact design
    delivers a cost-effective combination of value and performance.

  • LED: The unique LED provisioning ring
    provides administrator location tracking and alerts for each device.

  • Power over Ethernet (PoE) Standard: The
    UniFi nanoHD AP can be powered by an 802.3af PoE compliant switch. We
    recommend powering your UniFi devices with a UniFi PoE Switch (sold
    separately). The UniFi nanoHD AP is compatible with all UniFi PoE Switches
    and 48V adapters.

  • Superior Processing Power: The UniFi
    nanoHD AP is capable of complex operations (guest control, filtering, and
    other resource-intensive tasks) that may slow down a lesser-equipped AP.


*PoE injector is not included for 5 Packs


UAP-HD-NANO
Dimensions 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29")
Weight
With Mounting Kits
300 g (10.6 oz)
315 g (11.1 oz)
Networking Interface (1) RJ45 GbE
Buttons (1) Reset to Defaults
Power Method 802.3af
Power Supply UniFi Switch (PoE)
Max. Power Consumption 10.5W
Operating Frequency 2.4 GHz
5 GHz
Max. TX Power
2.4 GHz
5 GHz

23 dBm
26 dBm
Antenna Gain
2.4 GHz
5 GHz

2.8 dBi
3 dBi
MIMO
2.4 GHz
5 GHz

2x2
4x4
Throughput
2.4GHz
5GHz

300 Mbps
1733 Mbps
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
