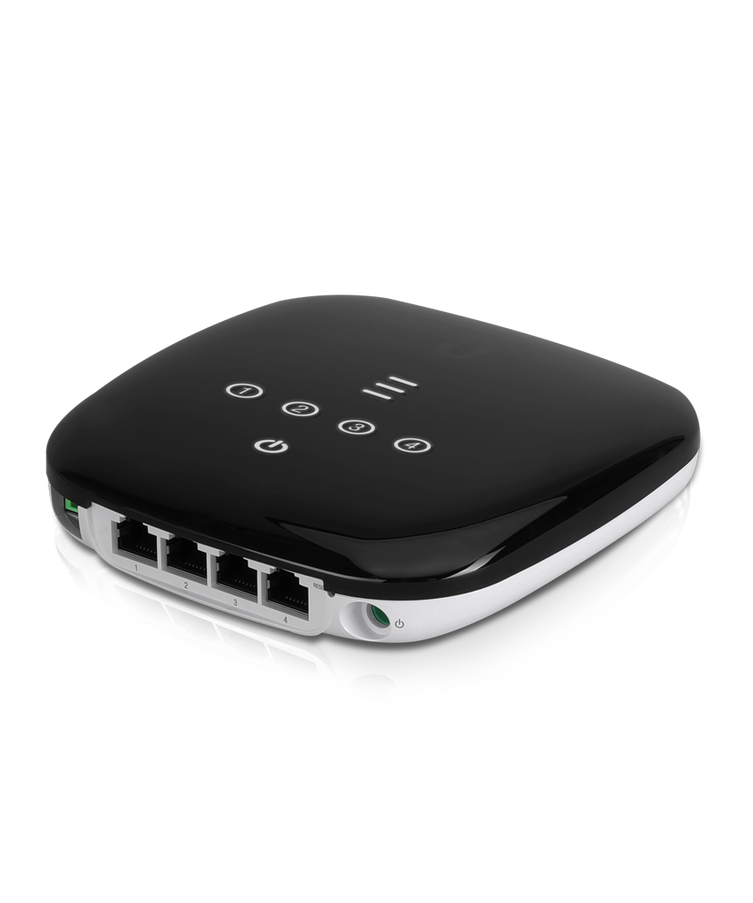

Ubiquiti Networks UF-WiFi-US UFiber GPON CPE WiFi US

<p>Ubiquiti UFiber Loco 4N WiFi Gigabit Passive Optical Network CPE is a robust, high‑performance GPON CPE that offers routing, four LAN ports, and Wi-Fi. It is powered by 24V passive PoE or a 24V, 0.5A power adapter.<br><br></p> <h2>Features</h2> <p><br>• High-Performance GPON CPE<br>• GPON WAN Port SC/APC Fiber Connector<br>• 4-Port RJ45 10/100/1000 VLAN-aware Switch<br>• 802.11n WiFi<br>• LED diodes for easy diagnostics<br>• Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream<br>• Powerful Layer 2/3 Management Features<br><br></p> <h2>Specifications</h2> <p><br>• Dimensions 126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25")<br>• Weight 190 g (6.70 oz)<br>• Networking Interfaces (1) SC/APC, GPON WAN<br>&nbsp; &nbsp; (4) Gigabit RJ45, Ethernet LAN<br>&nbsp; &nbsp; (1) Wi-Fi, 802.11n<br>• Networking Interface Speeds GPON WAN, ITU G.984<br>&nbsp; &nbsp; 2.488 Gbps Downstream<br>&nbsp; &nbsp; 1.244 Gbps Upstream<br>• GbE LAN Wi-Fi<br>&nbsp; &nbsp; 10/100/1000 Mbps<br>&nbsp; &nbsp; 300 Mbps<br>• Management Interface In-Band Ethernet/PON<br>• Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm, RX: -28 to -8dBm<br>• Power Method DC Jack, 24VDC, 24V Passive PoE (Pins 4, 5+; 7, 8-)<br>• Power Supply 100-240VAC / 50-60 Hz Universal AC/DC, Power Adapter: 24V / 0.5A<br>• Max. Power Consumption 7W<br>• Supported Voltage Range 20 to 28V<br>• Processor Specs MIPS, 900 MHz<br>• Memory Information 256 MB DDR<br>• Buttons (1) Reset<br>• Operating Temperature -10 to 45° C (14 to 113° F)<br>• Operating Humidity 10 to 90% Non-condensing<br>• Certifications CE, FCC, IC</p>
