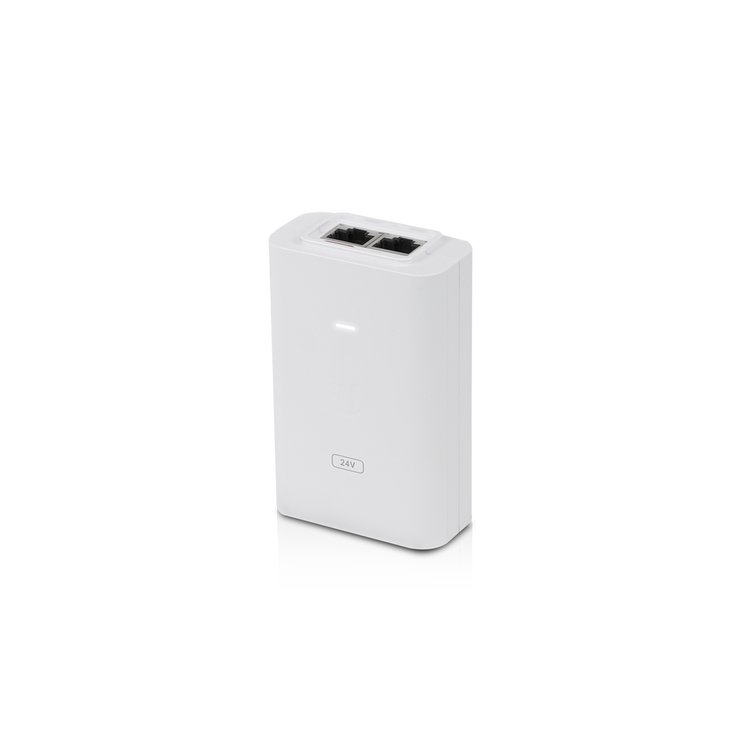

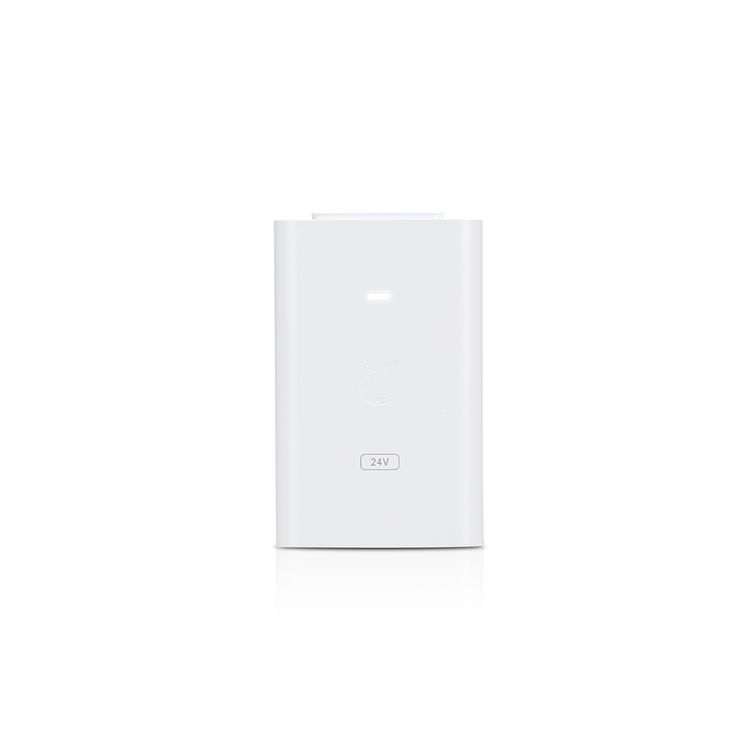

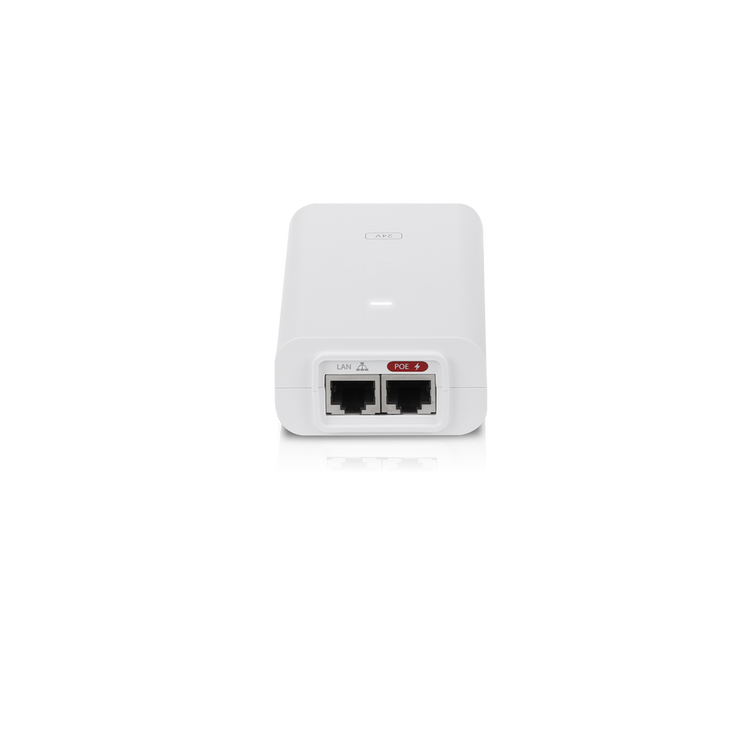

Ubiquiti PoE Injector 24VDC, 24W, Gigabit
Ubiquiti PoE Injector 24VDC, 24W, Gigabit
Ubiquiti PoE Injector 24VDC, 24W, Gigabit
Ubiquiti PoE Injector 24VDC, 24W, Gigabit

Ubiquiti Networks

Ubiquiti PoE Injector 24VDC, 24W, Gigabit

MPN: POE-24-24W-G-WH

SKU: UBI-POE-24-24W-G-WH

$14.50
$15


  • Output Voltage: 24VDC @ 1.0A

  • Gigabit LAN Port : Yes

  • 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)

Availability Available 3 in stock.
Ask about this product
Delivery and Return
Description

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
POE-24-24W-G
Dimensions 96 x 62 x 35 mm (3.78 x 2.44 x 1.38")
Weight 166 g (5.86 oz)
Output Voltage 24VDC @ 1.0A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 750mA @ 90VAC
Inrush Current <100A Peak @ 25°C
Efficiency 86.2+%
Output Ripple 200mV p-p
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering -
Operating Temperature 0 to 40° C
(32 to 104° F)
Storage Temperature -30 to 70°C
(-22 to 158° F)
Operating Humidity 5 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
