Ubiquiti Networks

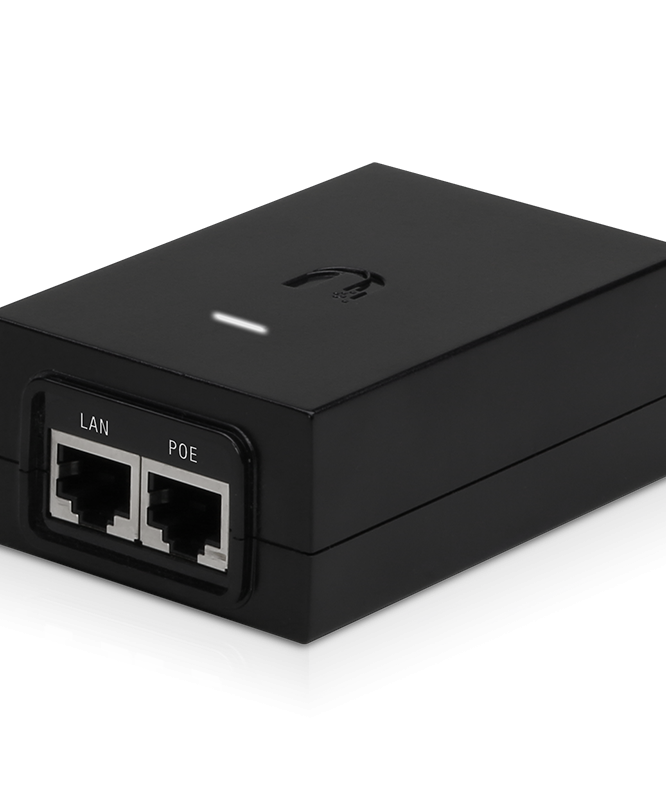

Ubiquiti POE-50-60W airFiber PoE Adapter with Gigabit LAN Port (50V, 1.2A) with US cord
MPN: POE-50-60W
SKU: UBI-POE-50-60W
$29
Share
| Specifications | |
|---|---|
| Model | POE-50-60W |
| Dimensions | 101 x 60 x 33 mm (3.98 x 2.36 x 1.30”) |
| Weight | 192 g (6.77 oz) |
| Output voltage | 50VDC @ 1.2A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 1.3A @ 120V AC, 0.75A @ 230V AC |
| Inrush current | <100A peak @120V AC, <200A peak @ 230V AC |
| Efficiency | 85+% |
| Output ripple | 1% max. |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | No |
| 4-pair powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Operating humidity | 35 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL |
