Ubiquiti Networks

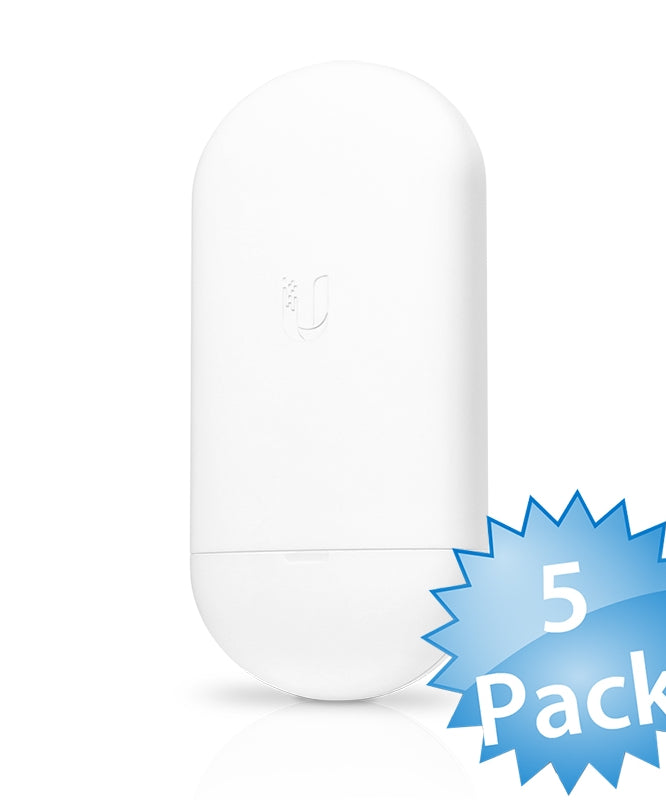

Ubiquiti NanoStation AC Loco 5 GHz airMAX ac Radio 5-Pack

MPN: Loco5AC-5-US

SKU: UBI-LOCO5AC-5-US

$240
$249

Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.



  • 5 GHz

  • 450+ Mbps throughput

  • Dedicated spectral analysis radio

Availability Available 1 in stock.
Description

Ubiquiti airMAX NanoStation AC Loco 5 Pack - US

Introducing a 5 GHz airMAX ac Radio, the Ubiquiti NanoStation AC Loco sets the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation M. The NanoStation AC and NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management. The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.



  • Access Point PtMP airMAX Mixed Mode
  • airMAX ac Protocol Support
  • Long-Range Point-to-Point (PtP)
  • Link Mode
  • Selectable Channel Width
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
  • Automatic Channel Selection
  • Transmit Power Control:
  • Automatic/Manual
  • Automatic Distance Selection
  • (ACK Timing)
  • Strongest WPA2 Security

Note: NS-5ACL(US) doesn't include a power supply (NS-5AC US does include a power supply)

Mechanical
Dimensions 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33")
Weight 0.18 kg (6.35 oz)
Enclosure material UV-stabilized plastic
MountingPole mounting kit (Included)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.3A Gigabit PoE supply*
*PoE adapter not included.
Supported voltage range 24V ±10%
Max. power consumption 8.5W
LEDs Power, Ethernet, (4) signal strength
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain13 dBi
Channel bandwidths10/20/30/40/50/60/80 MHz
Cross-pol isolation20 dB min.
Max. VSWR1.8:1
Beamwidth45° (H-pol) / 45° (V-pol) / 45° (Elevation)
PolarizationDual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 - 2472 MHz
US/CA 2412 - 2462 MHz
