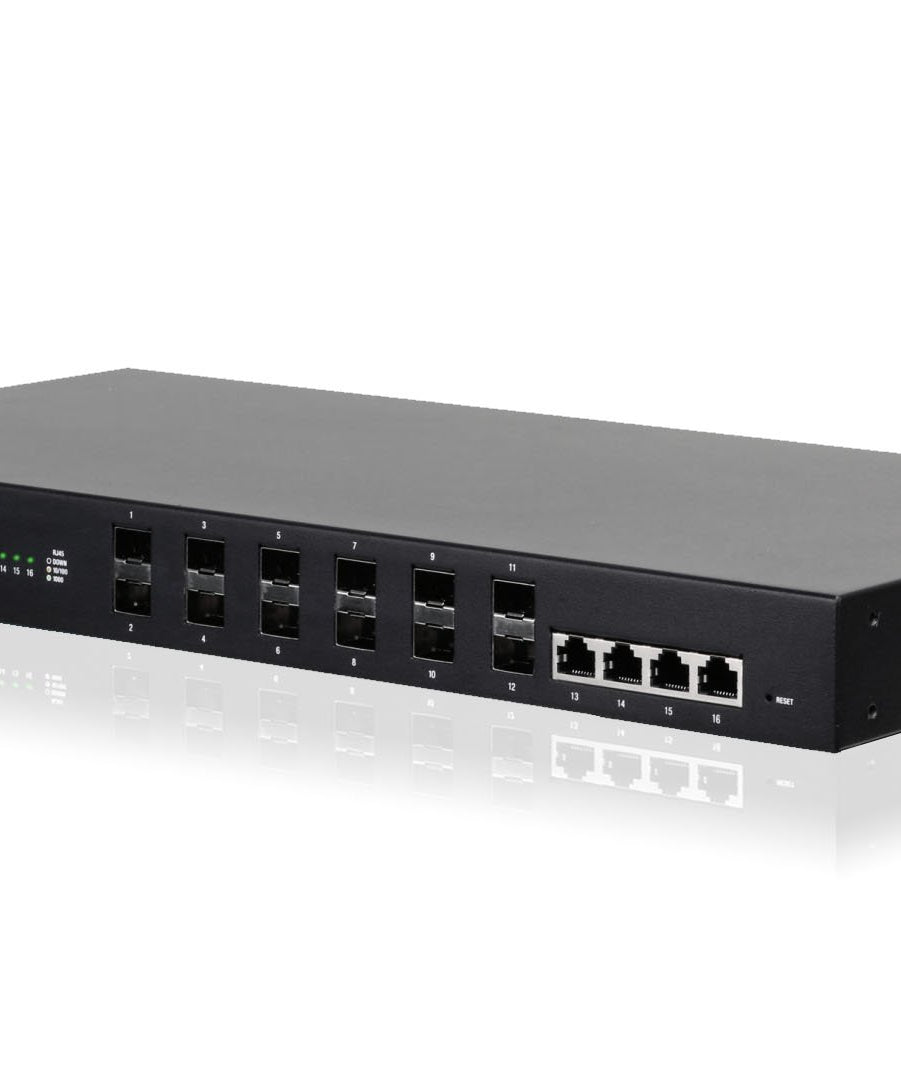

Ubiquiti ES-12F EdgeSwitch Managed Gigabit Fiber Switch, 12-Port SFP + 4-Port Gigabit RJ45

Build and expand your network with
Ubiquiti Networks® EdgeSwitch™
Fiber, part of the EdgeMAX® line of
products. The EdgeSwitch Fiber is a
fully managed, Gigabit fiber switch,
delivering robust performance
and intelligent switching for
high‑bandwidth networks.

The EdgeSwitch Fiber offers an
extensive suite of advanced Layer-2
switching features and protocols,
and also provides Layer-3 routing
capability.

Switching Performance
The EdgeSwitch Fiber offers the
forwarding capacity to simultaneously
process traffic on all ports at line rate
without any packet loss.

For its total, non-blocking throughput,
the EdgeSwitch Fiber supports up to
16 Gbps.

Distribution Layer
The EdgeSwitch Fiber offers high
performance and low latency as an
aggregation switch.

For fiber connectivity, it features
12 SFP ports, eight of which also
support 100 Mbps. For copper
connectivity, the EdgeSwitch Fiber
offers four Gigabit RJ45 ports.

Comprehensive User
Interface
Designed for convenient
management, the EdgeSwitch
Configuration Interface allows
administrators to configure and
monitor switch features in a graphical
user interface.

For advanced users, an
industry‑standard command-line
interface (CLI) is available through the
serial console port, telnet, and SSH.

Powerful Functionality
The EdgeSwitch Fiber uses a
sophisticated operating system that
provides basic switching features
and a variety of advanced features
including:

• MSTP/RSTP/STP


• VLAN, Private VLAN, Voice VLAN


• Link Aggregation


• DHCP Snooping, IGMP Snooping


• TACACS+, RADIUS, 802.1X, MAC
  Filtering, ACL


• DiffServ, CoS


• Static Routing, Policy-Based Routing


• DHCP Server Functionality
