Ubiquiti Networks

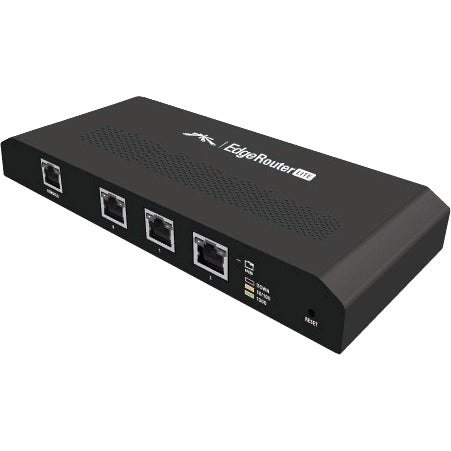

Ubiquiti ERLITE-3 EdgeRouter Lite 3-Port Gigabit Ethernet Router
MPN: ERLITE-3
SKU: UBI-ERLITE-3
Share
Powerful Routing Performance |
Carrier-Class Reliability |
| The EdgeRouter™ Lite routes up to 1 million packets per second to meet the needs of carrier-class networks. | The EdgeRouter™ Lite delivers uptime performance equal to leading carrier or enterprise technology solutions. |
 |
 |
Versatile Functionality |
EdgeOS™ - Advanced UI |
| Use the EdgeRouter™ Lite’s advanced feature set to run applications on the customizable open platform. | The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions. |
Ubiquiti EdgeMAX 3Gbps 3-Port Router
- Worlds first one million packet-per-second router
- Dual-core MIPS64 processor with hardware acceleration
- 3x RJ-45 Gigabit Ethernet ports
- Intuitive EdgeOS software for firewall, routing, and general network management
Advanced 3-Port Gigabit Router
Introducing the EdgeRouter™ Lite from Ubiquiti Networks, part of the EdgeMAX™ series. Housed in a compact, fanless form factor, the EdgeRouter Lite operates quietly as it delivers the powerful routing, security, and management features you require to efficiently run your network.
Direct Traffic Flow
Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet your network segmentation requirements. Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.
EdgeOS - Powerful Integrated Management Software
EdgeOS™ is a sophisticated operating system loaded with robust features, including:
- Static routes and support of routing protocols: OSPF, RIP, and BGP
- Firewall policies and NAT rules
- DHCP services
- Quality of Service (QoS)
- Network administration and monitoring tools
- Comprehensive IPv6 support.
EdgeOS provides an intuitive, easy-to-use graphical user interface that makes router features simple to configure and monitor. It even comes with an integrated command-line interface (CLI) right in the browser, allowing access to all the advanced functions of the router.
Ubiquiti Networks ERLite-3
| Processor | Dual core 500 MHz, MIPS64 with hardware acceleration for packet processing |
| System Memory | 512 MB DDR2 RAM |
| On-Board Flash Storage | 2 GB |
| Operating System | EdgeOS |
| Interface/Encapsulation | Ethernet 802.1q VLAN PPPoE GRE IP in IP Bridging Bonding (802.3ad) |
| Addressing | Static IPv4/IPv6 addressing DHCP/DHCPv6 |
| Routing | Static routes OSPF/OSPFv3 RIP/RIPng BGP (with IPv6 support) IGMP proxy |
| Security | ACL-based firewall Zone-based firewall NAT |
| VPN | IPSec site-to-site and remote access OpenVPN site-to-site and remote access PPTP remote access L2TP remote access PPTP client |
| Services | DHCP/DHCPv6 server DHCP/DHCPv6 relay Dynamic DNS DNS forwarding VRRP RADIUS client Web caching |
| Quality of Service (QoS) | FIFO Stochastic Fairness Queueing Random Early Detection Token Bucket Filter Deficit Round Robin Hierarchical Token Bucket Ingress Policing |
| Management | Web UI CLI (Console, SSH, Telnet) SNMP NetFlow LLDP NTP UBNT discovery protocol Logging |
| Packet Size | 64 Bytes: 1,000,000 pps 512 Bytes or Larger: 3 Gb/s (line rate) |
| Serial Console Port | 1 x RJ-45 serial port |
| Data Ports | 3 x 10/100/1000 Ethernet ports |
| Serial Console Port | Power |
| Data Ports | Speed Link Activity |
| Power Input | 12 VDC, 1 A power adapter (included) 9 to 24 V (supported voltage range) |
| Button | Reset |
| Wall Mount | Yes |
| Operating Temperature | 14 to 113°F (-10 to +45°C) |
| Operating Humidity | 90% (non-condensing) |
| Certifications | CE, FCC, IC |
| Dimensions | 7.78 x 3.58 x 1.10" (197.52 x 91.00 x 28.00 mm) |
| Weight | 10.2 oz (289.2 g) |
| Package Weight | 1.555 lb |
| Box Dimensions (LxWxH) | 9.55 x 5.2 x 2.95" |
