Tycon Power Systems

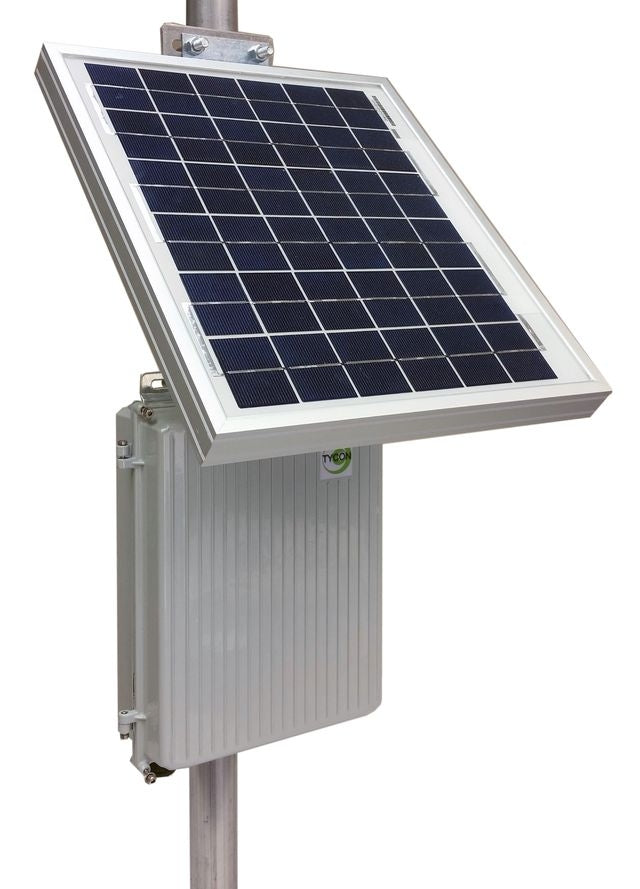

Tycon Power Systems RPDC12-9-15 RemotePro 2.5W Cont Power 12V
MPN: RPDC12-9-15
SKU: TYCON-RPDC12-9-15
Share
RPDC12-9-05 |
RPDC12-9-15 |
|
Rated Power Generation (6hrs peak sun) |
1.25W |
2.5W |
Reserve Time @ Rated Power |
40hrs |
21hrs |
POE Output Voltage (DC) |
No POE Out |
|
Secondary Volts Out (DC) |
12V 20A |
|
Battery Capacity (Amp Hrs) |
8.5Ah |
|
Battery Voltage (DC) |
12V |
|
Battery Type |
Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
|
Battery Life |
5 Years |
|
Controller Type |
PWM |
|
Overcharge Protection |
14.4V |
|
Over-discharge protection |
11.0V |
|
Over-discharge recovery volts |
12.0V |
|
Controller Self Consumption |
<0.3W |
|
Enclosure Type |
Die Cast Aluminum |
|
Enclosure External Size |
11 x 8.5 x 3.5” (279x216x89mm) |
|
Enclosure Internal Size |
10 x 7.75 x 3” (254x197x76mm) |
|
Space available for Customer Electronics |
7.75 x 5 x 1.25” (197x127x32mm) |
|
Solar Panel Dims |
11” X 9” (279 x 228 mm) |
14”X12” (355 x 305mm) |
Operating Temperature |
-30°C to +60°C (-22°F to 140°F) |
|
System Weight (no batteries) |
10lb (4.5kg) |
|
Battery Weight |
5.5lb (2.5kg) |
|
Wind Speed Rating |
110MPH (49m/s) |
|
Warranty |
3 Years |
