RadioWaves HPD3-11FX 3' HP 10.7-11.7GHz FX Direct to ...

BSC

RadioWaves HPD3-11FX 3' HP 10.7-11.7GHz FX Direct to UBNT

MPN: HPD3-11FX

SKU: HPD3-11FX

$1,432
Availability Available 2 in stock.
Ask about this product
Delivery and Return
Description

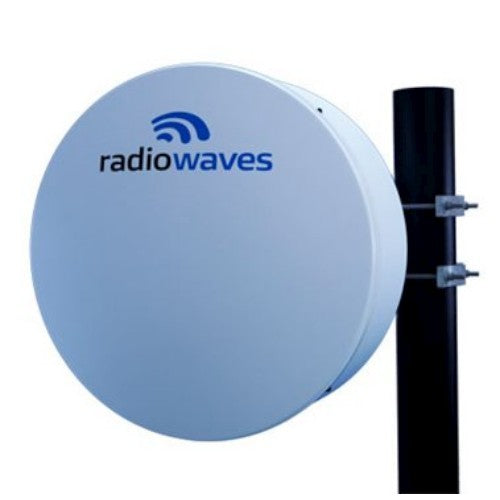

0.9 m | 3 ft High Performance Parabolic Reflector Antenna, Dual-polarized, 10.7-11.7GHz

The HP High Performance Series by RadioWaves offers a full line of high performance parabolic antennas engineered to provide ETSI class 2/3 radiation pattern performance as well as excellent gain.  RadioWaves field-proven pre-assembled antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance.  The included radome ensures robust and reliable performance under the most challenging conditions.  If it’s rugged, it must be RadioWaves!

FEATURES AND BENEFITS

  • High Performance ETSI Class 2/3* Parabolic Antennas – Excellent performance for a wide range of applications
  • Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality
  • Warranty – Industry leading 7-year warranty

*ETSI Class depends on frequency band


General Specifications


Antenna Type
High Performance Parabolic Reflector Antenna

Size, nominal
3 ft | 0.9 m

Polarization
Dual



Electrical Specifications


Operating Frequency Band
10.7 - 11.7 GHz


Half Power Beamwidth, Horizontal
2.1 degrees


Half Power Beamwidth, Vertical
2.1 degrees


Cross-Polarization Discrimination
30 dB


Front to Back Ratio (F/B)
62 dB


Gain, Low Frequency
38.1 dBi


Gain, Mid Frequency
38.5 dBi


Gain, High Frequency
39 dBi


VSWR
1.37:1


Return Loss
-16.1 dB




Mechanical Specifications


Fine Azimuth Adjustment
+/- 10 degrees

Fine Elevation Adjustment
+/- 10 degrees

Mounting Pipe Diameter, Min
2.5 inch | 5.1 cm

Mounting Pipe Diameter, Max
4.5 inch | 11.4 cm

Net Weight
50 lbs | 12.3 kg


Wind Velocity Operational
90 mph | 145 km/h

Wind Velocity Survival Rating
125 mph | 201 km/h

Mechanical Configuration
HP3

Axial Force (FA)
403 lbs | 1792 N


Side Force (FS)
200 lbs | 890 N


Twisting Moment (MT)
344 ft-lbs | 466 Nm


Operating Temperature Range
-40 to +60 C

Max Pressure, PSIG, (if waveguide interface)
5



Regulatory Compliance


FCC
Part 101 Cat. A

Industry Canada Compliance
SRSP310.7 B

ETSI
302217 R1 C3

RoHS-compliant
Yes



Shipping Information


Package Type
Wood Crate

Gross Weight
143 lbs | 69.8 kg

Dimensions, L x W x H
47 x 28 x 48in | 119 x 71 x 122 cm

Shipping Volume
36.56 cu ft | 1.04 cu m



Additional Comments


*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.




Technical Drawings



OL-HP3
