MikroTik RB912UAG-5HPnD RouterBOARD, 600MHz CPU, 64MB RAM, USB Port, 802.11a/n Wireless, mPCIe Slot, RouterOS L4

MPN: RB912UAG-5HPND

SKU: MIK-RB912UAG-5HPND

$79
Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

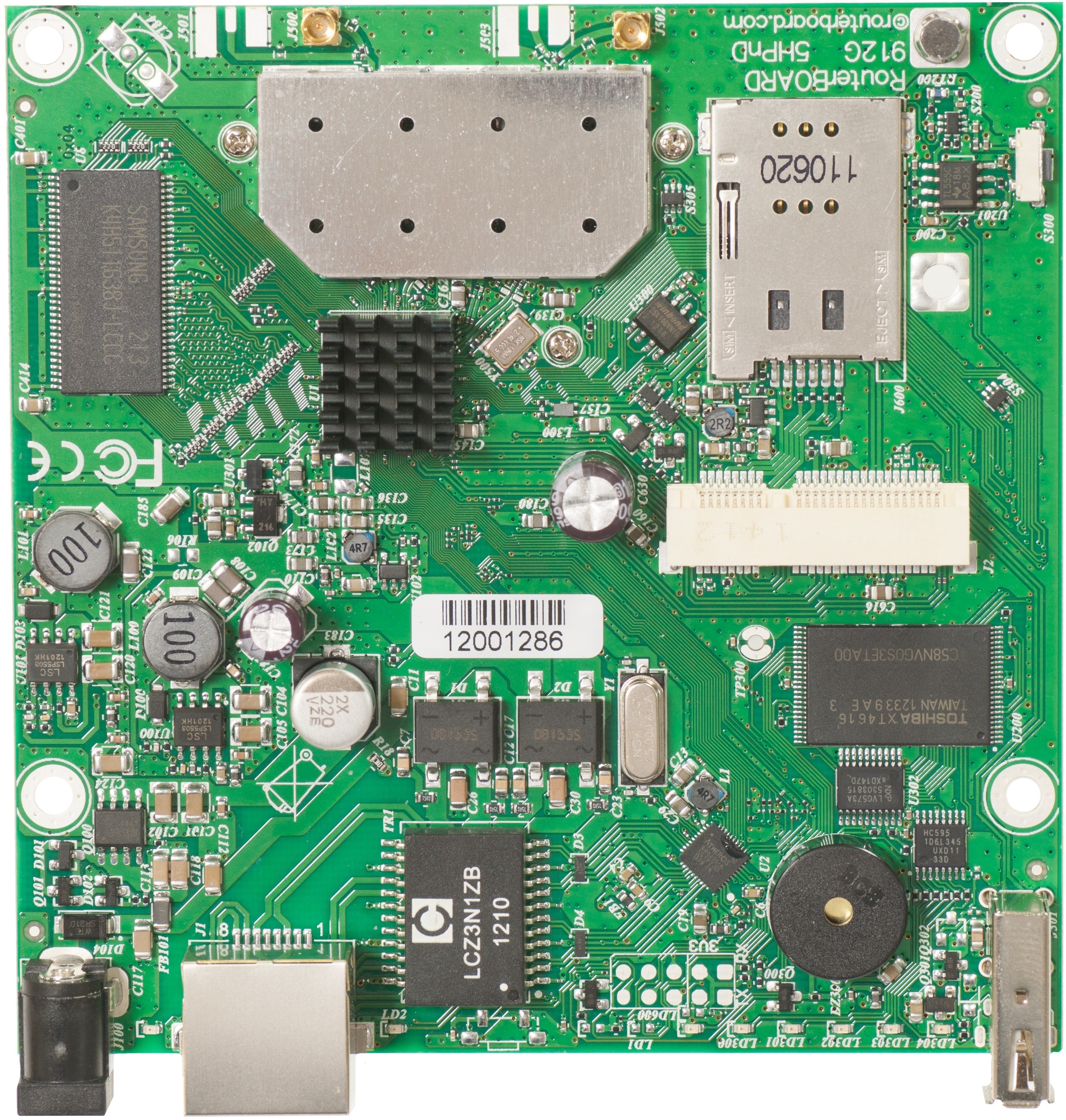

The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power 5GHz wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.


The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports







































































































































Product specifications

Product code
RB912UAG-5HPnD

CPU nominal frequency
600 MHz

CPU core count
1

Size of RAM
64 MB

Architecture
MIPS-BE

10/100 Ethernet ports
0

10/100/1000 Ethernet ports
1

MiniPCI slots
0

MiniPCI-e slots
1

Wireless chip model
AR9342-BL1A

Wireless standards
802.11a/n

Number of USB ports
1

Memory Cards
No

Power Jack
1

Supported input voltage
8 V - 30 V

802.3af support
No

PoE in
Yes

Voltage Monitor
Yes

PCB temperature monitor
Yes

CPU temperature monitor
No

Dimensions
105x105mm

Operating System
RouterOS

Operating temperature range
-40°C to +70°C

License level
4

Current Monitor
No

CPU
AR9342-BL1A

Max Power consumption
14W at 24V

SFP ports
0

SFP+ ports
0

USB slot type
USB type A

Number of chains
2

Serial port
None


Wireless specifications





































5 GHz


Transmit power (dBm)
Receive Sensitivity
Transmit power (mW)

6MBit/s
30
-96
1000

54MBit/s
27
-78
501

MCS0
30
-96
1000

MCS7
26
-75
398


wireless parameters may be limited in software, depending on your local
regulatory limitations



Ethernet test results









































































RB912UAG-5HPnD
AR9342 1G 1 port test

Mode
Configuration
1518 byte
512 byte
64 byte

kpps
Mbps
kpps
Mbps
kpps
Mbps

Bridging
none (fast path)
81.0
983.7
232.0
950.3
269.6
138.0

Bridging
25 bridge filter rules
81.0
983.7
86.0
352.3
87.6
44.9

Routing
none (fast path)
81.0
983.7
210.0
860.2
226.9
116.2

Routing
25 simple queues
81.0
983.7
103.9
425.6
106.6
54.6

Routing
25 ip filter rules
56.8
689.8
59.6
244.1
60.5
31.0


  • All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)

  • Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes

  • Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out

  • Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
