<h2 style="text-align: center;"><span class="productMainTitle"><br>MikroTik RB4011iGS+RM </span></h2>
<p> </p>
<p style="text-align: center;"><span class="productMainDescr">Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage and desktop case with rack ears</span></p>
<p> </p>
<p> </p>

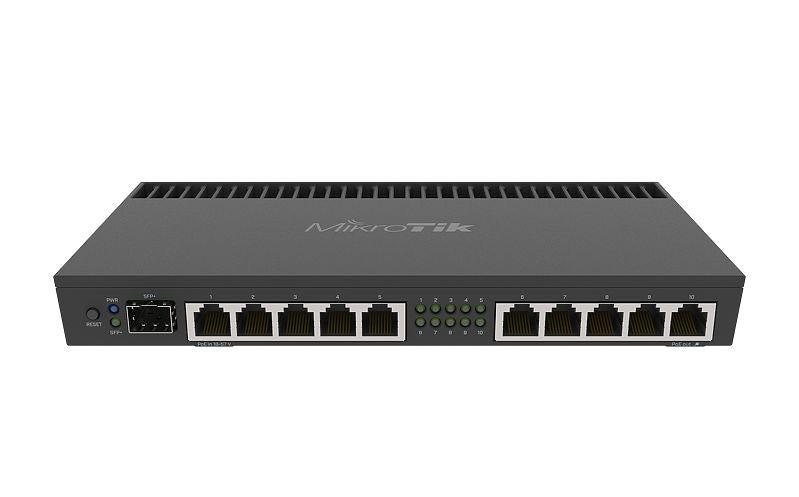

<p style="text-align: center;">RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!</p>
<p> </p>

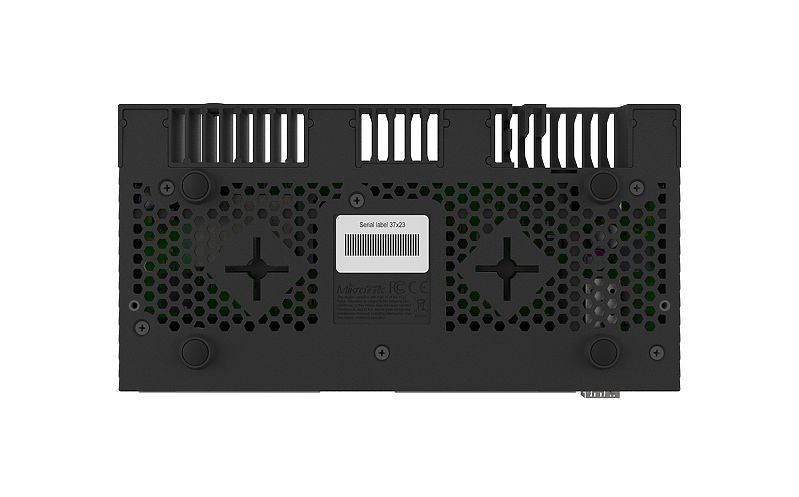

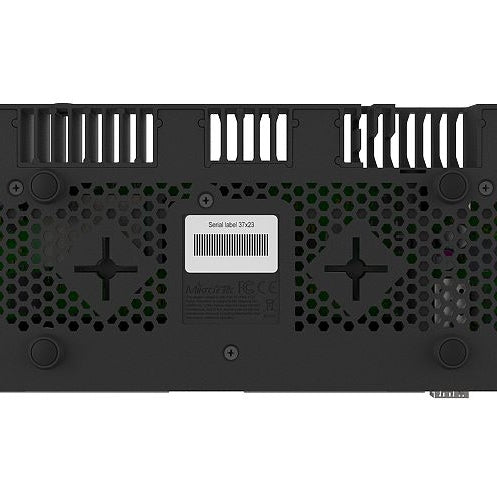

<p style="text-align: center;">The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.</p>
<p> </p>

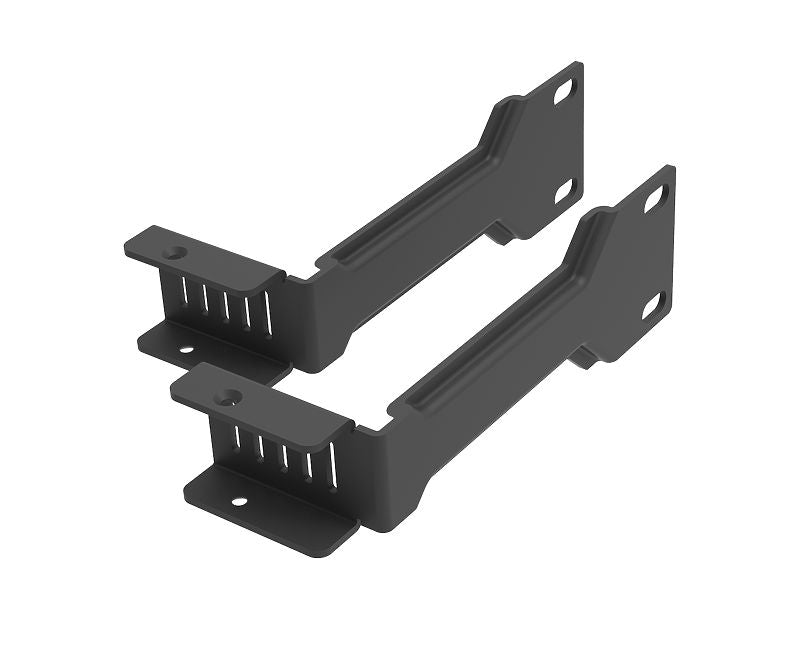

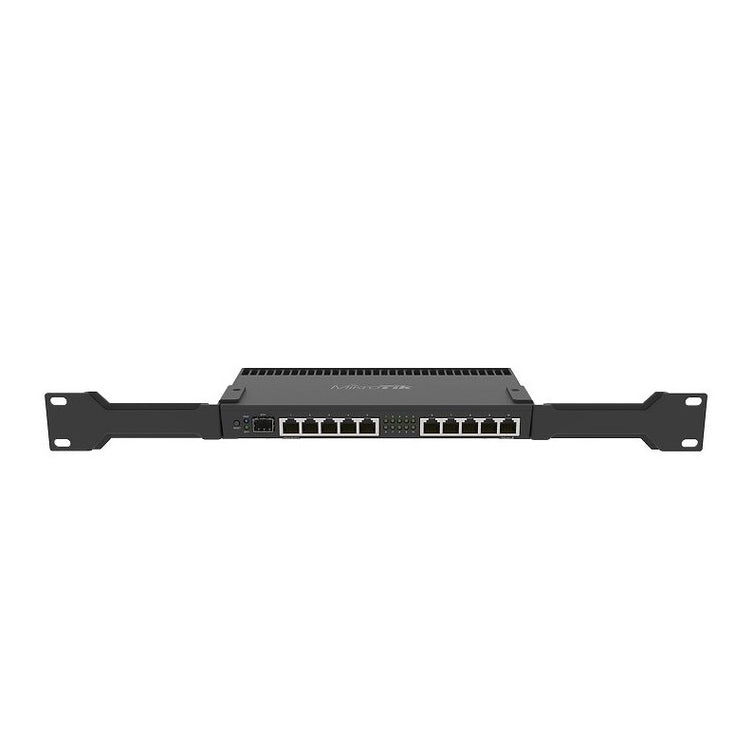

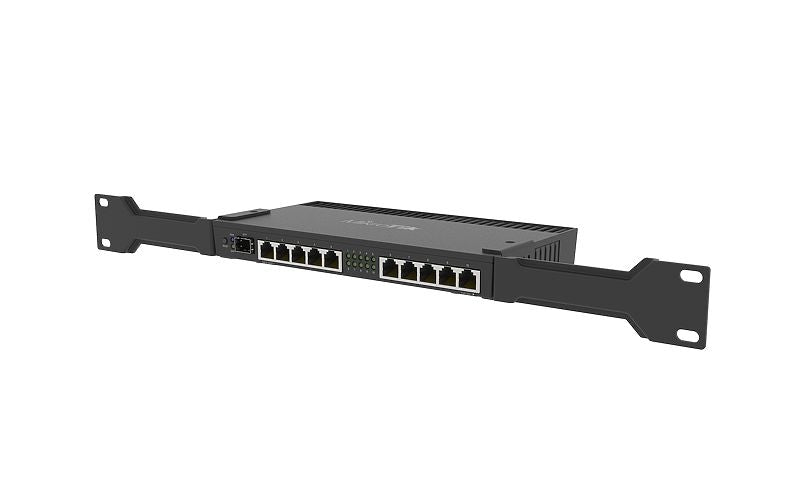

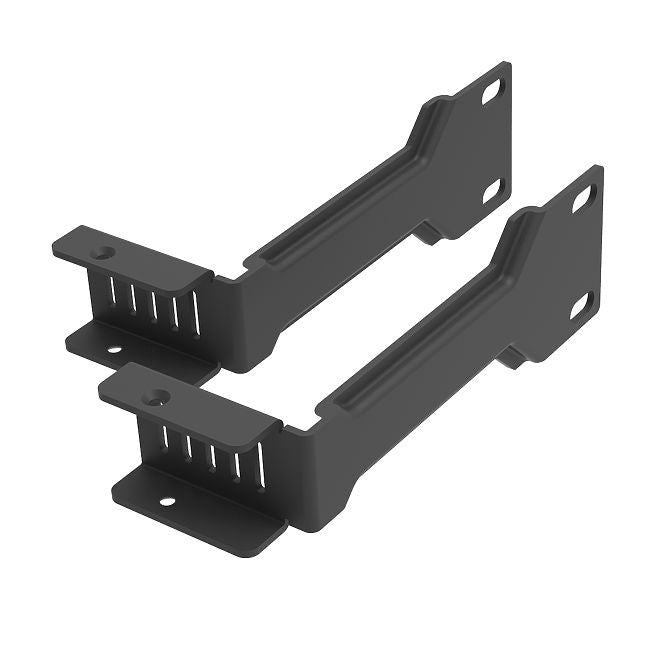

<p style="text-align: center;">RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.</p>
<p> </p>
<p style="text-align: center;"> </p>
<p> </p>
<h2>Ethernet test results</h2>
<div class="table-wrapper">
<table class="table9">
<thead>
<tr>
<td colspan="2">RB4011iGS+RM</td>
<td colspan="6">AL21400 1G/S+ all port test</td>
</tr>
<tr>
<td rowspan="2">Mode</td>
<td rowspan="2">Configuration</td>
<td colspan="2">1518 byte</td>
<td colspan="2">512 byte</td>
<td colspan="2">64 byte</td>
</tr>
<tr>
<td>kpps</td>
<td>Mbps</td>
<td>kpps</td>
<td>Mbps</td>
<td>kpps</td>
<td>Mbps</td>
</tr>
</thead>
<tbody>
<tr>
<td>Bridging</td>
<td>none (fast path)</td>
<td class="kpps size1518">806,4</td>
<td class="mbps size1518">9,792.9</td>
<td class="kpps size512">2312,9</td>
<td class="mbps size512">9,473.6</td>
<td class="kpps size64">5509,7</td>
<td class="mbps size64">2,821.0</td>
</tr>
<tr>
<td>Bridging</td>
<td>25 bridge filter rules</td>
<td class="kpps size1518">806,4</td>
<td class="mbps size1518">9,792.9</td>
<td class="kpps size512">1037,4</td>
<td class="mbps size512">4,249.2</td>
<td class="kpps size64">1153,2</td>
<td class="mbps size64">590.4</td>
</tr>
<tr>
<td>Routing</td>
<td>none (fast path)</td>
<td class="kpps size1518">806,4</td>
<td class="mbps size1518">9,792.9</td>
<td class="kpps size512">1923,3</td>
<td class="mbps size512">7,877.8</td>
<td class="kpps size64">5092,3</td>
<td class="mbps size64">2,607.3</td>
</tr>
<tr>
<td>Routing</td>
<td>25 simple queues</td>
<td class="kpps size1518">806,4</td>
<td class="mbps size1518">9,792.9</td>
<td class="kpps size512">1046,6</td>
<td class="mbps size512">4,286.9</td>
<td class="kpps size64">960,3</td>
<td class="mbps size64">491.7</td>
</tr>
<tr>
<td>Routing</td>
<td>25 ip filter rules</td>
<td class="kpps size1518">593,7</td>
<td class="mbps size1518">7,209.9</td>
<td class="kpps size512">625,2</td>
<td class="mbps size512">2,560.8</td>
<td class="kpps size64">564,6</td>
<td class="mbps size64">289.1</td>
</tr>
</tbody>
</table>
</div>
<ol class="meta-test">
<ul class="meta-test">
<li>All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)</li>
</ul>
</ol>
<ul class="meta-test">
<ul class="meta-test">
<li>Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes</li>
</ul>
</ul>
<ul class="meta-test">
<ul class="meta-test">
<li>Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out</li>
</ul>
</ul>
<ul class="meta-test">
<ul class="meta-test">
<li>Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results</li>
</ul>
</ul>
<p><br><br></p>
<div class="clearfix"> </div>
<p> </p>
<h2>IPsec test results</h2>
<div class="table-wrapper">
<table class="table9">
<thead>
<tr>
<td colspan="2">RB4011iGS+RM</td>
<td colspan="6">AL21400 IPsec throughput</td>
</tr>
<tr>
<td rowspan="2">Mode</td>
<td rowspan="2">Configuration</td>
<td colspan="2">1400 byte</td>
<td colspan="2">512 byte</td>
<td colspan="2">64 byte</td>
</tr>
<tr>
<td>kpps</td>
<td>Mbps</td>
<td>kpps</td>
<td>Mbps</td>
<td>kpps</td>
<td>Mbps</td>
</tr>
</thead>
<tbody>
<tr>
<td>Single tunnel</td>
<td>AES-128-CBC + SHA1</td>
<td class="kpps size1400">140.8</td>
<td class="mbps size1400">1577.0</td>
<td class="kpps size512">141.2</td>
<td class="mbps size512">578.4</td>
<td class="kpps size64">139.9</td>
<td class="mbps size64">71.6</td>
</tr>
<tr>
<td>256 tunnels</td>
<td>AES-128-CBC + SHA1</td>
<td class="kpps size1400">192.7</td>
<td class="mbps size1400">2158.2</td>
<td class="kpps size512">200.5</td>
<td class="mbps size512">821.2</td>
<td class="kpps size64">203.4</td>
<td class="mbps size64">104.1</td>
</tr>
<tr>
<td>256 tunnels</td>
<td>AES-128-CBC + SHA256</td>
<td class="kpps size1400">192.4</td>
<td class="mbps size1400">2154.9</td>
<td class="kpps size512">200.5</td>
<td class="mbps size512">821.2</td>
<td class="kpps size64">203.4</td>
<td class="mbps size64">104.1</td>
</tr>
<tr>
<td>256 tunnels</td>
<td>AES-256-CBC + SHA1</td>
<td class="kpps size1400">180.0</td>
<td class="mbps size1400">2016.0</td>
<td class="kpps size512">188.2</td>
<td class="mbps size512">770.9</td>
<td class="kpps size64">190.3</td>
<td class="mbps size64">97.4</td>
</tr>
<tr>
<td>256 tunnels</td>
<td>AES-256-CBC + SHA256</td>
<td class="kpps size1400">180.0</td>
<td class="mbps size1400">2016.0</td>
<td class="kpps size512">188.2</td>
<td class="mbps size512">770.9</td>
<td class="kpps size64">190.3</td>
<td class="mbps size64">97.4</td>
</tr>
<tr>
<td>256 tunnels</td>
<td>AES-128-GCM</td>
<td class="kpps size1400">192.7</td>
<td class="mbps size1400">2158.2</td>
<td class="kpps size512">202.2</td>
<td class="mbps size512">828.2</td>
<td class="kpps size64">203.4</td>
<td class="mbps size64">104.1</td>
</tr>
</tbody>
</table>
</div>
<p> </p>
<ol class="meta-test">
<ul class="meta-test">
<li>All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)</li>
</ul>
</ol>
<ul class="meta-test">
<ul class="meta-test">
<li>Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes</li>
</ul>
</ul>
<ul class="meta-test">
<ul class="meta-test">
<li>Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results</li>
</ul>
</ul>
