Mikrotik

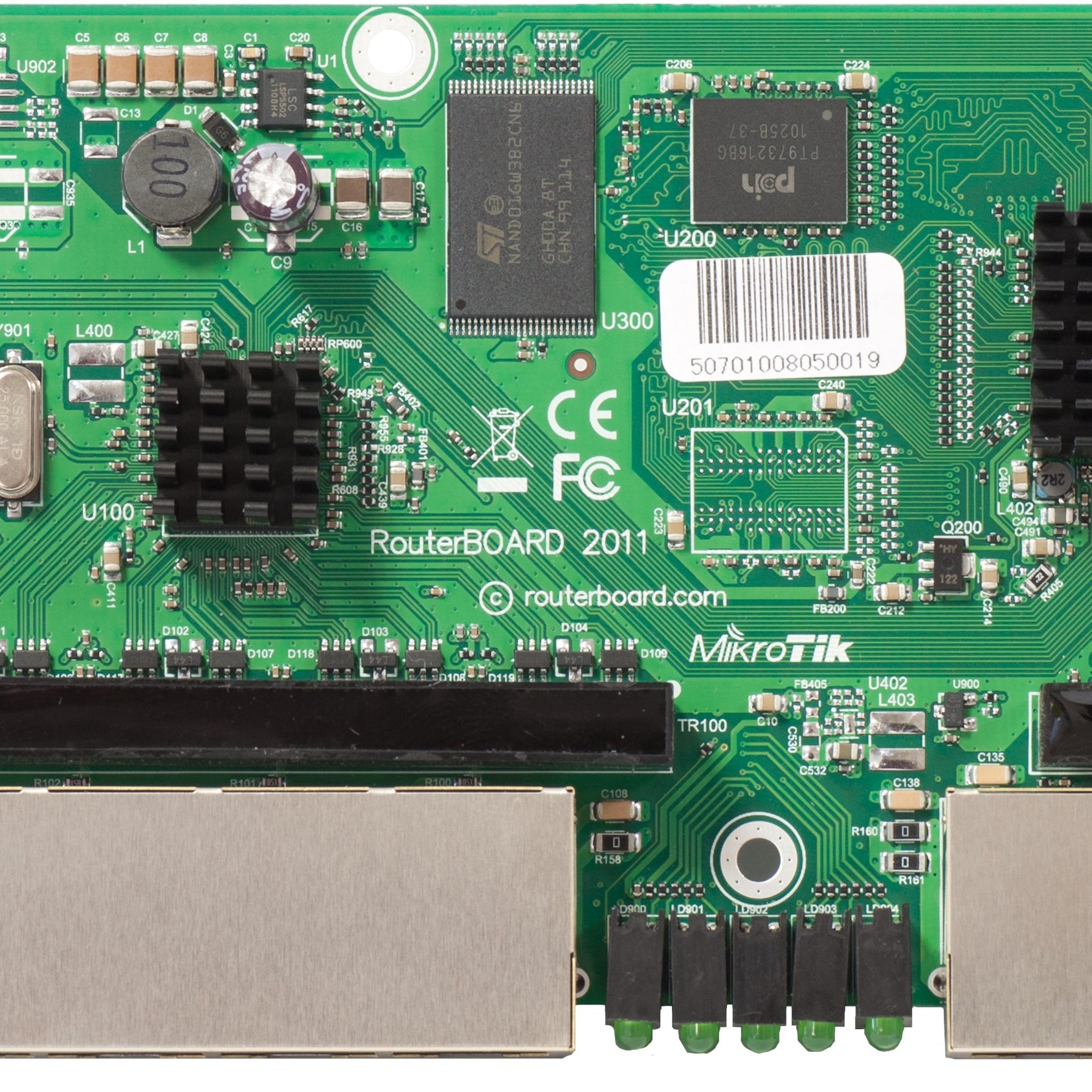

MikroTik RB2011LS Router Board, 600MHz CPU, 64MB RAM, Board Only

MPN: RB2011LS

SKU: MIK-RB2011LS

$79
$89
Availability Available 5 in stock.
Description

RB2011LS is our first product with SFP cage for gigabit SFP transceivers and ideal solution for FTTH (Fiber To The Home) implementations.

The RB2011LS has 11 ports: Gigabit SFP cage and five Gigabit Ethernet ports that can be switched together providing affordable wire-speed Fiber-to-Copper converter; and additional five Fast Ethernet ports. Board can be powered by power jack or PoE. Note that SFP transceiver is NOT included. RB2011LS supports any 1.25G SFP transceivers that is within the SFF Committee specifications for SFP Transceivers. RB2011LS doesn’t have hardware support for PON (Passive Optical Network) - this hardware support MUST be implemented on SFP transceiver itself.

It’s powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

If you would like to create your own OEM customized Router with SFP support, RB2011LS is your right choice!





















































































Details


Product code RB2011LS
CPU speed 600MHz
Architecture MIPS-BE
RAM 64MB
LAN ports 5
Gigabit 5
MiniPCI 0
PoE 8-30V DC on Ether1
Voltage Monitor No
PCB temperature monitor No
CPU temperature monitor No
Dimensions 214mmx86mm
Operating System RouterOS
Temperature range -35C to +65C
RouterOS License L4
Current Monitor No
CPU AR9344
Max Power consumption 6W
SFP ports 1

Performance test results














































































RB2011LS Fast+Gigabit Ethernet test (600Mhz) RouterOS v6.0rc5
Mode Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging fast path 269.6 176.9 232 983.7 122 1499.1
Bridging 25 Bridge filter rules 87.6 57.5 86 364.6 83.6 1027.3
Routing fast path 226.9 148.8 210 890.4 122 1499.1
Routing 25 Simple Queues) 106.6 69.9 103.9 440.5 100.5 1234.9
Routing 25 Firewall filter rules 60.5 39.7 59.6 252.7 56.8 698.0
