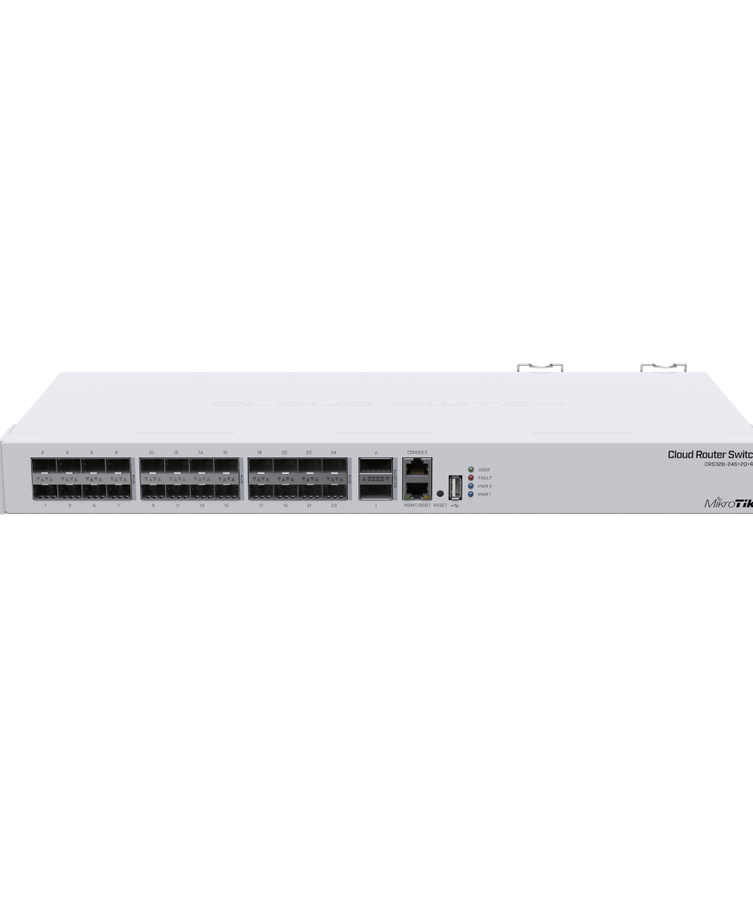

MikroTik CRS326-24S+2Q+RM Cloud Router Switch 40 Gbps QSFP+

MPN: CRS326-24S+2Q+RM

SKU: MIK-CRS32624G2QRM

$535
$599


  •  Two 40 Gbps QSFP+ ports

  •  24 SFP+ ports for 10 Gigabit connectivity

  •  Dual boot feature that allows to choose RouterOs or SwOS

  •  Dual power supply

  •  1U rackmount case

Availability Call (877) 271-9484 For Availability
Description
<h1 style="text-align: center;">MikrroTik&nbsp;<span class="productMainTitle">CRS326-24S+2Q+RM</span><span class="productMainDescr">Our fastest switch for the most demanding setups</span></h1> <p>&nbsp;</p> <p style="text-align: center;">If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.</p> <p style="text-align: center;">Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.</p> <p style="text-align: center;">CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!</p> <p style="text-align: center;">You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS</p> <p style="text-align: center;">&nbsp;</p> <p style="text-align: left;">&nbsp;</p>

Specifications

Details
Product code CRS326-24S+2Q+RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 443 x 183 x 44 mm
License level 5
Operating System RouterOS or SwitchOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -20°C to 60°C


Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 69 W
Max power consumption without attachments 42 W


Ethernet

Details
10/100 Ethernet ports 1


Fiber

Details
SFP+ ports 24
Number of 40G QSFP+ ports 2


Peripherals

Details
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Certification & Approvals

Details
Certification CE/RED, EAC, ROHS
