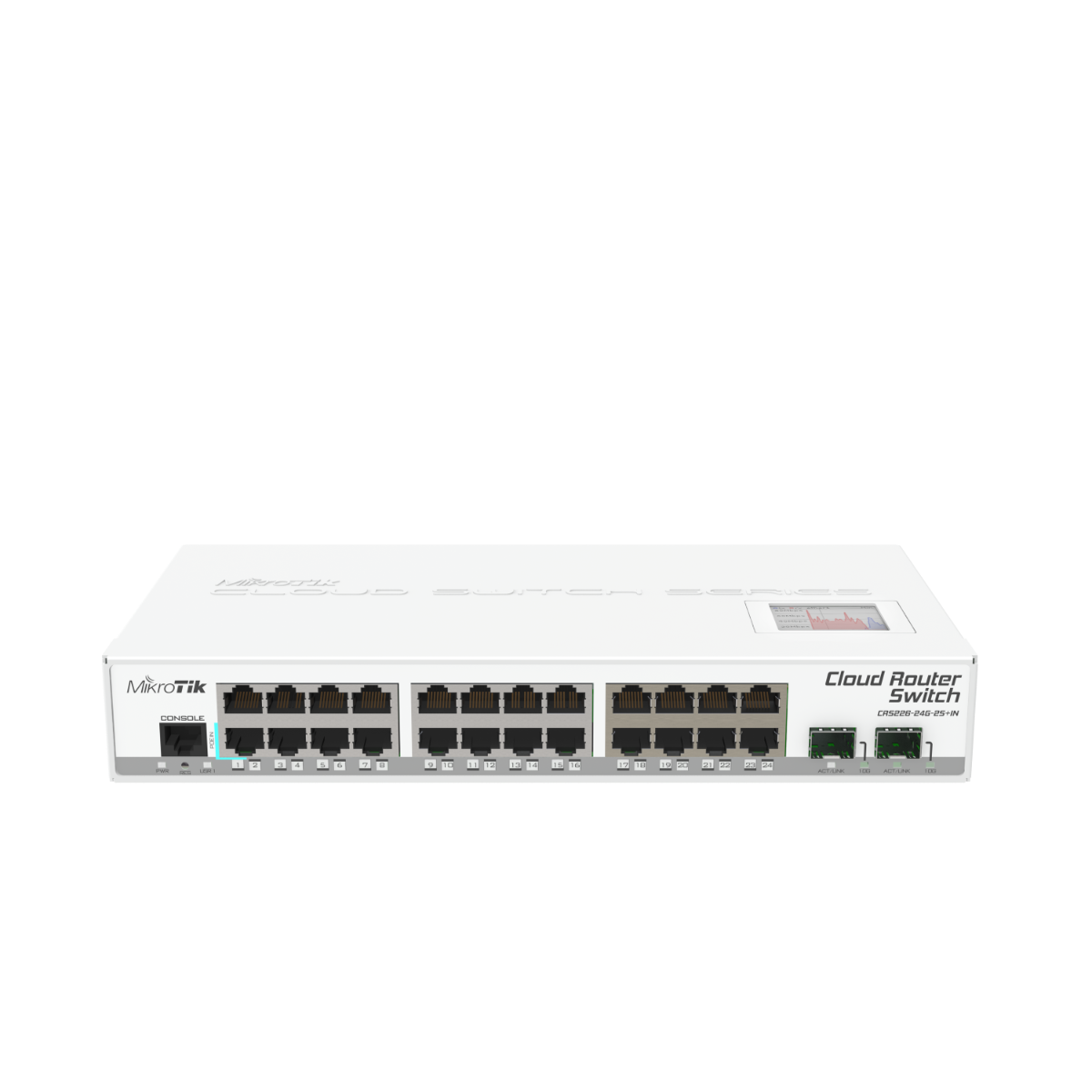

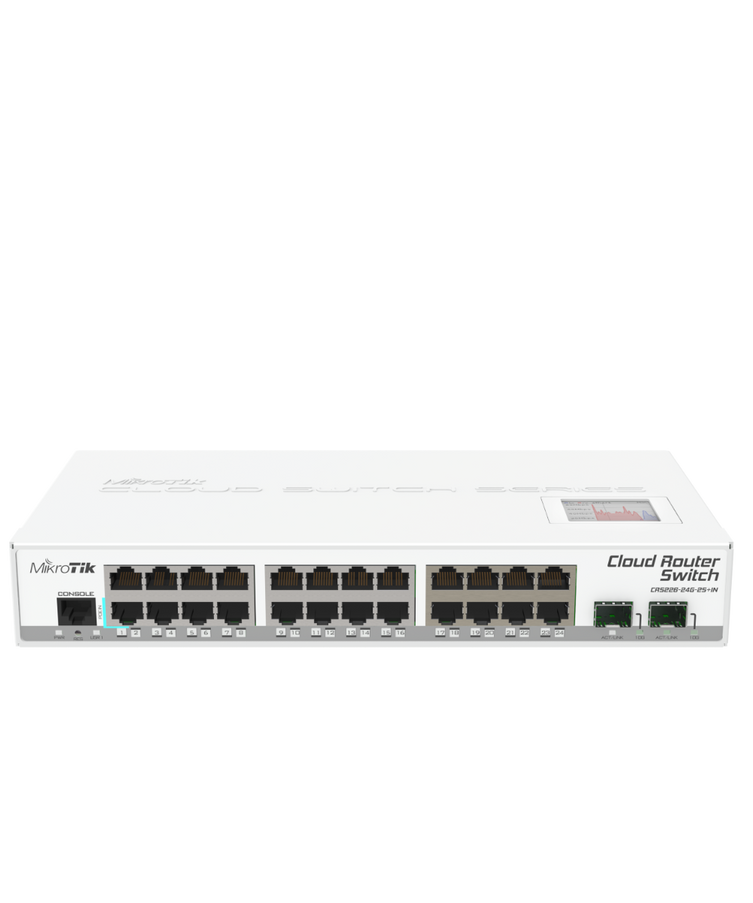

Mikrotik CRS226-24G-2S+IN 24x Gigabit Ethernet layer 3 Smart Switch 2x SFP+ cages

MPN: CRS226-24G-2S+IN

SKU: MIK-CRS22624G2SPLIN

$269


  • 24x Gigabit Ethernet layer 3 Smart Switch

  • 2x SFP+ cages LCD

  • 400MHz CPU, 64MB RAM

  • Metal desktop case, RouterOS L5

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

Cloud Router Switch is our new member of our Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. The CRS226 uses a new class of switch chips, which allows us to have two SFP+ ports for 10G connectivity.

Specifications

Details
Product code CRS226-24G-2S+IN
Architecture MIPSBE
CPU QCA8519
CPU core count 1
CPU nominal frequency 400 MHz
Dimensions 285x145x45mm
RouterOS license 5
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -35C to +65C
Suggested price $289.00


Powering

Details
Number of DC inputs 1
Max power consumption 21 W
Max power consumption without attachments 21W
PoE in Passive PoE


Ethernet

Details
10/100/1000 Ethernet ports 24


Fiber

Details
SFP DDMI Yes
SFP+ ports 2


Peripherals

Details
Serial console port RJ45


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Specifications

Details
Product code CRS226-24G-2S+IN
Architecture MIPSBE
CPU QCA8519
CPU core count 1
CPU nominal frequency 400 MHz
Dimensions 285x145x45mm
RouterOS license 5
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -35C to +65C
Suggested price $289.00


Powering

Details
Number of DC inputs 1
Max power consumption 21 W
Max power consumption without attachments 21W
PoE in Passive PoE


Ethernet

Details
10/100/1000 Ethernet ports 24


Fiber

Details
SFP DDMI Yes
SFP+ ports 2


Peripherals

Details
Serial console port RJ45


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
