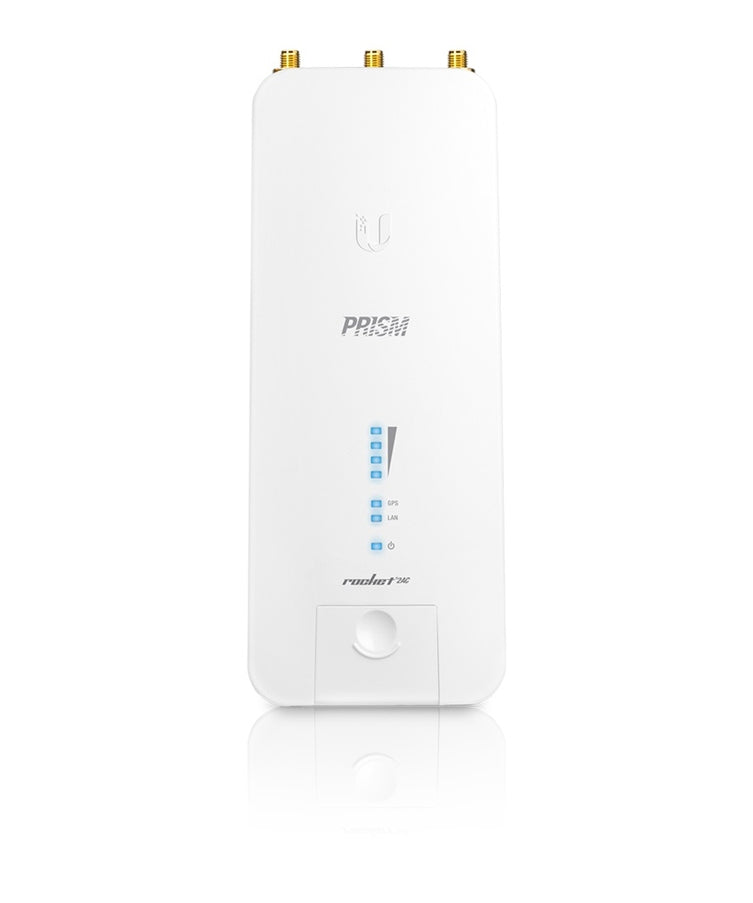

Ubiquiti R2AC-PRISM-US 2GHz Rocket ac Prism US

MPN: R2AC-PRISM-US

SKU: UBI-R2AC-US

$209

  • This wireless access point uses IEEE 802.11ac technology with steadfast speed of up to 330 Mbit/s for optimal wireless signals
  • Up to 10x faster than standard Ethernet connectivity for your wired network
  • 330 Mbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity
Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

Ubiquiti Networks Rocket AC Prism Overview

With support for both airMAX ac and airPrism technologies, the rocket 2ac PRISM airMAX ac BaseStation from Ubiquiti Networks can be paired with a variety of antennas to serve multiple purposes including support for both backhaul connections and point-to-multipoint links. Installation is simple as this radio comes equipped with a single Gigabit Ethernet networking interface and includes two RF connectors and one GPS connector.

The rocket 2ac PRISM airMAX ac BaseStation works in conjunction with Ubiquiti airOS 8 software which includes a powerful wireless feature-set including multiple usability enhancements, advanced RF analytics, real-time reporting, and spectral analysis. In addition to airOS 8 software, network admins can also take advantage of Ubiquiti airMAX ac technology which features intelligent QoS functionality, improved scalability, carrier-class links, and enhanced overall performance. Rounding out the powerful features supported by Ubiquiti and this rocket 2ac BaseStation is airPRISM technology. This technology features an improved Signal-to-Noise Ratio (SNR)that removes interference and facilitates AP co-location to reduce interference.

Easy to Install

Ubiquiti Networks has designed the airMAX ac radio with high performance and ease of installation in mind. The Rocket 2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas. Pair the Rocket 2AC Prism with airMAX ac antennas for optimal performance:
• PtP Backhaul RocketDish ac antenna
• PtMP Links airMAX ac sector


2.4 GHz Coverage

Deploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz spectrum with a single radio. The Rocket 2AC Prism allows for flexibility in configuring channel bandwidths (subject to local country regulations).


Plug & Play Integration

Rocket radios and airMAX antennas have been designed to seamlessly work together. Every airMAX antenna has a built‑in Rocket mount, so installation requires no special tools.

Ubiquiti Networks Rocket AC Prism

Power Supply 24 V, 0.5 A Gigabit PoE
Power Consumption 8.5 W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Voltage 18-26 VDC
Networking Interface 1 x 10/100/1000 Ethernet port
RF Connections 2 x RP-SMA (waterproof)
1 x GPS (waterproof)
Processor Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2 SDRAM
16 MB NOR flash
LEDs 1 x Power
1 x LAN
4 x Signal strength
1 x GPS
Signal Strength LEDs Software-adjustable to correspond to custom RSSI levels
TX Channel Width Support 10/20/40 MHz
Enclosure Characteristics Die-cast aluminum with white powder coating
ESD/EMP Protection Air: ± 24 kV
Contact: ± 24 kV
Temperature & Humidity Operating Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 5 to 95% non-condensing
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Shock and Vibration ETSI300-019-1.4
Modes Access Point, Station
Services Web Server, SNMP, SSH Server, Telnet, Ping Watchdog, DHCP, NAT, Bridging, Routing
Utilities airMagic, airView, Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Distance Adjustment Dynamic Ack and Ackless Mode
Power Adjustment Range Software adjustable UI
Security WPA2 AES Only
QoS (Quality of Service) Supports Packet Level Classification WMM and User Customer Level: High/medium/low
Statistical Reporting Uptime, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
Other Specifications Remote Reset Support Software Enabled/Disabled, VLAN Support, 256QAM, GPS, TX Filter

Ubiquiti Specific Features
10 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Ackless Mode
Operating Frequency Worldwide
2412 - 2472; 5150 - 5875
USA
U-NII-1: 5150 - 5250
U-NII-2A: 5250 - 5350
U-NII-2C: 5470 - 5725
U-NII-3: 5725 - 5850
Output Power 27 dBm
Dimensions 3.47 x 1.58 x 9.06" / 88 x 40 x 230 mm
Weight 15.52 oz / 440 g
Packaging Info
Package Weight 2.035 lb
Box Dimensions (LxWxH) 11 x 4.8 x 3.45"
