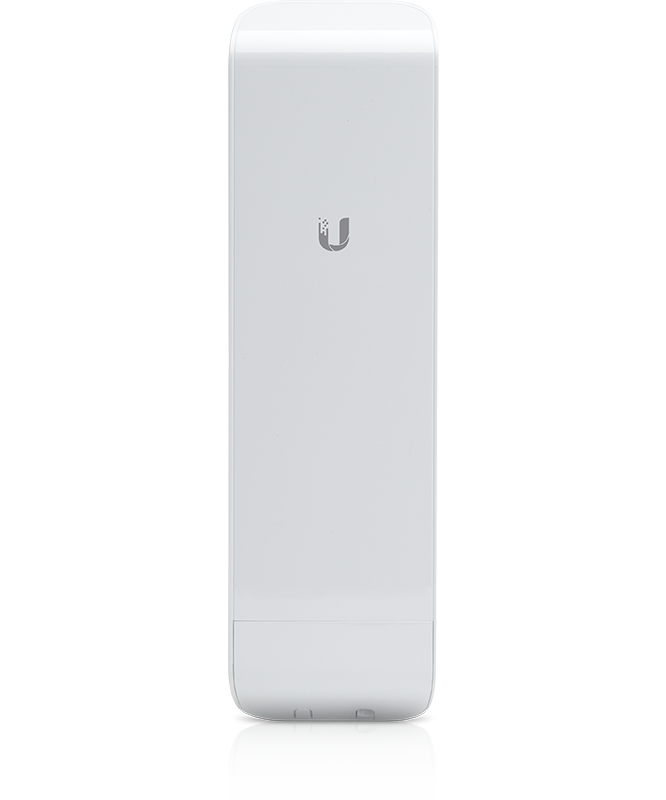

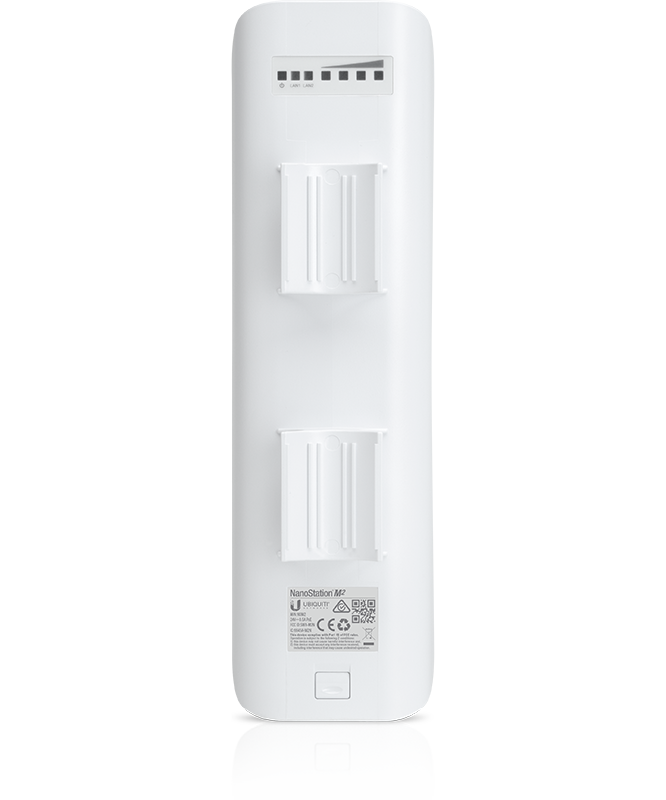

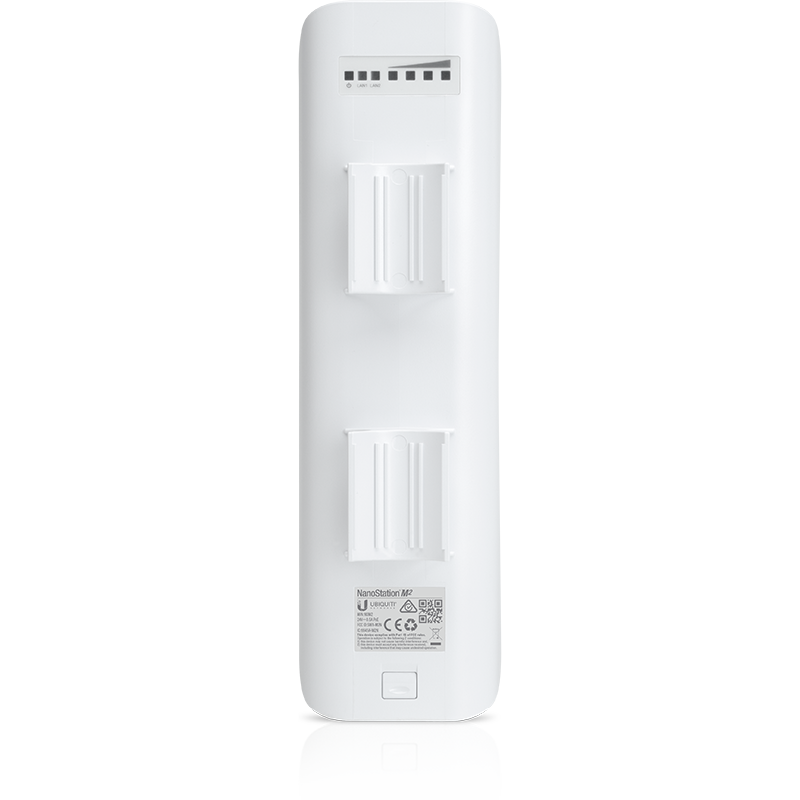

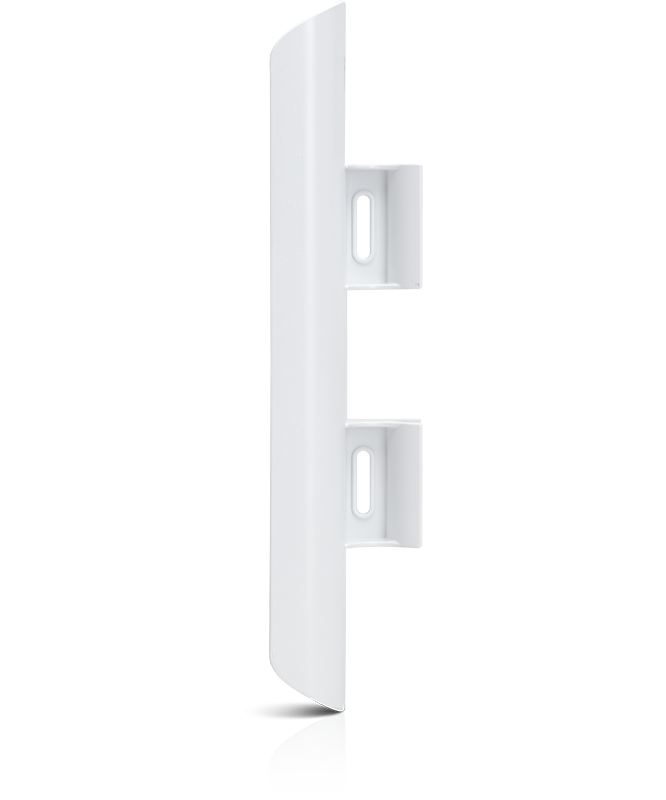

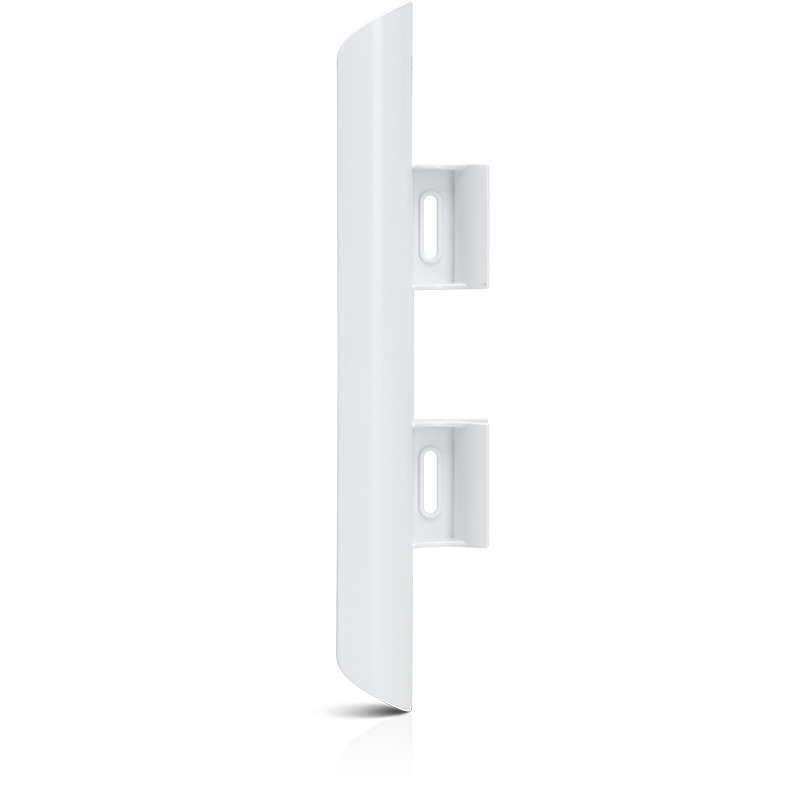

Ubiquiti NSM2 US Version NanoStation M2 2.4GHz Hi Power 2x2 MIMO AirMax CPE
Ubiquiti NSM2 US Version NanoStation M2 2.4GHz Hi Power 2x2 MIMO AirMax CPE
Ubiquiti NSM2 US Version NanoStation M2 2.4GHz Hi Power 2x2 MIMO AirMax CPE
Ubiquiti NSM2 US Version NanoStation M2 2.4GHz Hi Power 2x2 MIMO AirMax CPE

Ubiquiti Networks

Ubiquiti NSM2 US Version NanoStation M2 2.4GHz Hi Power 2x2 MIMO AirMax CPE

MPN: NSM2-US

SKU: UBI-NSM2-US

$85
$89
Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

Nanostation NSM2: 2GHz 802.11g/n hi-power (27dBm) 2x2 MIMO AirMax TDMA PoE station. This is the ultimate 2Ghz wireless outdoor CPE with integrated 14dBi dual polarity antenna.

Key Features
- Great Performance: 150+ Mbps real outdoor throughput and up to 15km+ range. Typical range is 2-4 miles from a LOS tower running AirMax sector antenna's and Rocket M2's.
- Next-Gen Antenna Design: 11dBi dual-polarity gain with optimized cross-polarity isolation in a compact form-factor.

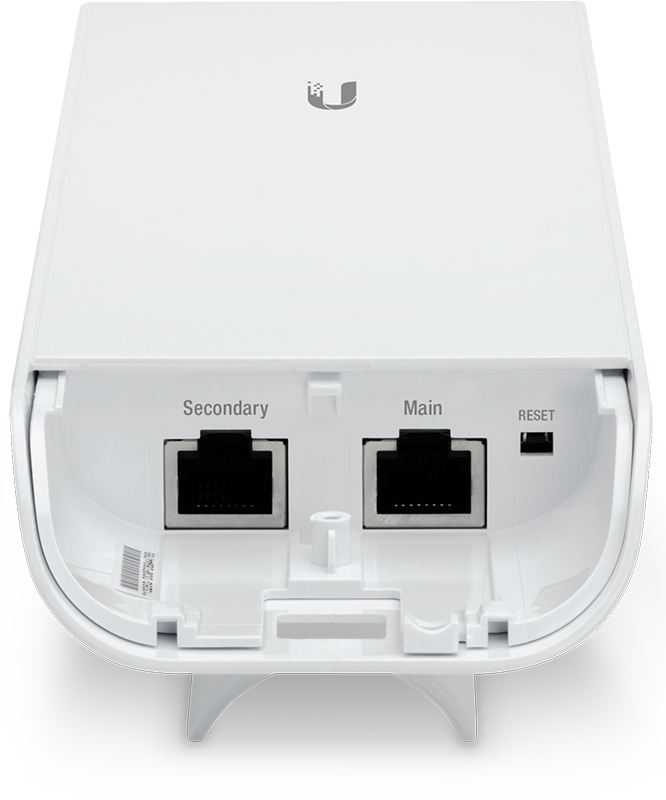

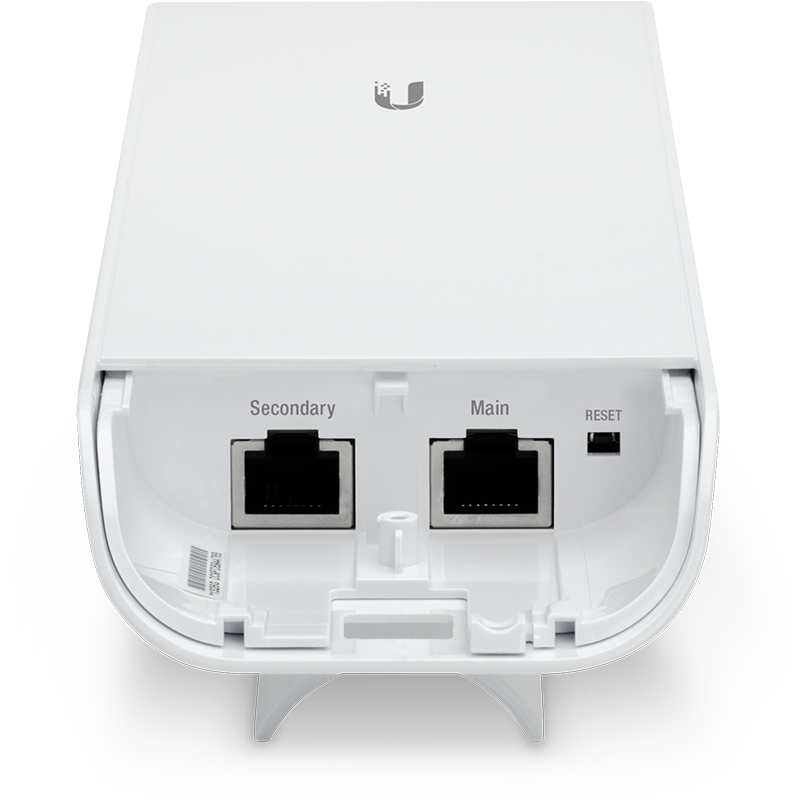

- Dual Ethernet Connectivity: A secondary ethernet port with software enabled POE output for seamless IP Video integration.
- Intelligent POE: Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location.
- 802.3af 48V Compliant - Easily becomes 802.3af 48V compliant through use of Ubiquiti Instant 802.3af adapter. The adapter sold separately (SKU#I8023AF-OD or I8023AF-ID)
- Easy Installation - Easily mountable to a pole/mast with mounting straps provided. In addition, the Nanostation M2 can be mounted and adjusted in any direction in a 90 degree angle through the use the NanoBracket. The NanoBracket is sold separately (SKU#MT-NANO U)

Product Includes
- One (1) Nanostation 2.4GHz
- One (1) Power Injector: 110-240VAC 24VDC 0.5A US-style plug
- Mount and mounting strap (NanoBracket sold separately, SKU#MT-NANO U)

Featuring a compact indoor/outdoor design and an interface, it is so intuitive even the most technically challenged can instantly become experts. But don't be fooled--it is as powerful as it is simple. NanoStation packs some phenomenal performance with a revolutionary design combining a high-gain antenna system, advanced radio architecture and highly researched and developed firmware technology allowing throughput, stability and capacity performance rivaling even the highest-end WiMax networks

The NanoStation M2 makes a perfect CPE device when pared with the Ubiquiti Rocket M2 and AirMax Sector or a Dish Antenna. We also recommend to upgrade your AirOS software to the latest version by visiting
UBNT Software Downloads. This device can also be used for short LOS PtP links by placing one unit in Access Point WDS Mode and the other unit into Station WDS.

NSM2 Specifications
• Processor Specs: Atheros MIPS 24KC, 400MHz
• Frequency: 2.4Ghz Channels 1-11
• Wireless: 2Ghz Atheros, 27dBm Adjustable down to 8dBm., AES Encryption
• Memory Information: 32MB SDRAM, 8MB Flash
• Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface, PoE Passthrough
• Mount and mounting strap (Nanobracket is optional, sold separately)
• Operating Temperature: -30C to +80C
• Power Method: Passive PoE
• Power Consumption: 8 Watts
• Power supply included: Power Injector 110-240VAC 24VDC .5A US-style plug
• Size: 29.4 cm x 8 cm x 3cm, Weight: .4kg
• Approvals: FCC Part 15.247, IC RS210, CE
• RoHS Compliance: YES

Ubiquiti Networks NanoStation M

System Information
Model NanoStationM
Processor Atheros MIPS 24KC, 400 MHz
Memory 32 MB SDRAM
8 MB Flash
Networking Interface 2 x 10/100 Ethernet ports
Regulatory Compliance
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance Yes
Physical / Environmental Specifications
Power Supply (PoE) 24 V / 0.5 A
Max Power Consumption 8 W
Gain 11 dBi
Polarization Dual linear
Enclosure Characteristics Outdoor UV stabilized plastic
Mounting Pole mounting kit included
Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature -22 to 167°F / -30 to 75°C
Operating Humidity 5 to 95% condensing
Shock and Vibration ETSI300-019-1.4
Frequency
Operating Frequency Worldwide/USA: 2412-2462
Output Power Output Power: 28 dBm

2.4 GHz TX Power Specifications
Data Rate/MCS / Avg. TX / Tolerance
11b/g
1-24 Mbps 28 dBm ± 2 dB
36 Mbps 26 dBm ± 2 dB
48 Mbps 25 dBm ± 2 dB
54 Mbps 24 dBm ± 2 dB
airMAX
MCS0 28 dBm ± 2 dB
MCS1 28 dBm ± 2 dB
MCS2 28 dBm ± 2 dB
MCS3 28 dBm ± 2 dB
MCS4 27 dBm ± 2 dB
MCS5 25 dBm ± 2 dB
MCS6 23 dBm ± 2 dB
MCS7 22 dBm ± 2 dB
MCS8 28 dBm ± 2 dB
MCS9 28 dBm ± 2 dB
MCS10 28 dBm ± 2 dB
MCS11 28 dBm ± 2 dB
MCS12 27 dBm ± 2 dB
MCS13 25 dBm ± 2 dB
MCS14 23 dBm ± 2 dB
MCS15 22 dBm ± 2 dB

2.4 GHz RX Power Specifications
Data Rate/MCS / Avg. TX / Tolerance
11b/g
1-24 Mbps -83 dBm ± 2 dB
36 Mbps -80 dBm ± 2 dB
48 Mbps -77 dBm ± 2 dB
54 Mbps -75 dBm ± 2 dB
airMAX
MCS0 -96 dBm ± 2 dB
MCS1 -95 dBm ± 2 dB
MCS2 -92 dBm ± 2 dB
MCS3 -90 dBm ± 2 dB
MCS4 -86 dBm ± 2 dB
MCS5 -83 dBm ± 2 dB
MCS6 -77 dBm ± 2 dB
MCS7 -74 dBm ± 2 dB
MCS8 -95 dBm ± 2 dB
MCS9 -93 dBm ± 2 dB
MCS10 -90 dBm ± 2 dB
MCS11 -87 dBm ± 2 dB
MCS12 -84 dBm ± 2 dB
MCS13 -79 dBm ± 2 dB
MCS14 -78 dBm ± 2 dB
MCS15 -75 dBm ± 2 dB
Antenna
Gain 10.4-11.2 dBi
Cross-pol Isolation 23 dB Minimum
Max VSWR 1.6:1
Beamwidth 55° (H-pol) / 53° (V-pol) / 27° (elevation)
Dimensions & Weight
Dimensions 11.57 x 1.22 x 3.15" / 294 x 31 x 80 mm
Weight 14.1 oz / 0.4 kg
Packaging Info
Package Weight 1.455 lb
Box Dimensions (LxWxH) 11.7 x 3.75 x 3.25"
