14x12x8 Fiberglass Weatherproof NEMA 4X Enclosure with Qu...

BSC

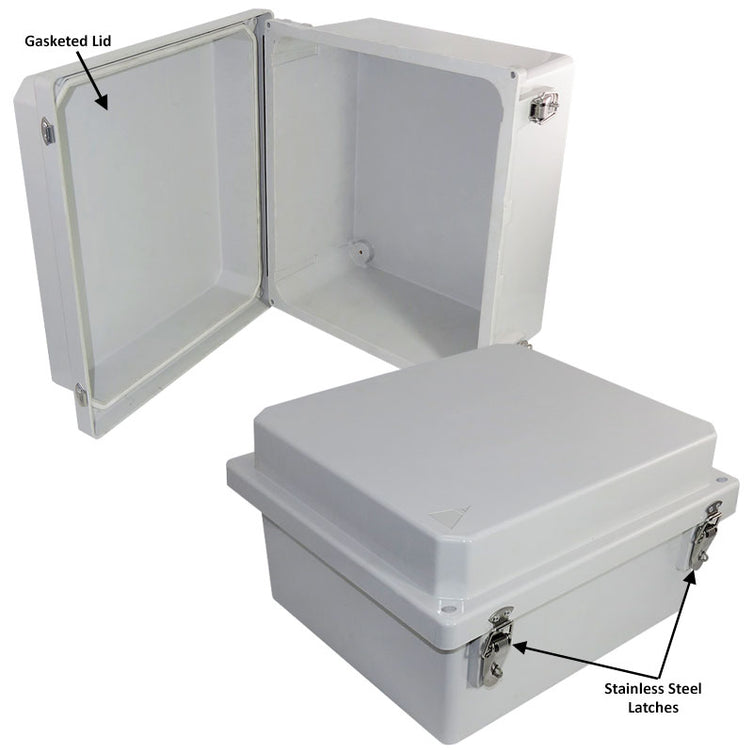

14x12x8 Fiberglass Weatherproof NEMA 4X Enclosure with Quick Release Latches

MPN: NF141208

SKU: NF141208

$234.98


  • Weatherproof, UV Stable and Highly Corrosion Resistant

  • Raised Bosses and Threaded Brass Inserts for Plate Mounting

  • Includes Stainless Steel Mounting Brackets

  • RF Transparent and Non-Conductive

  • Outer Dimensions: 15.7 x 13.8 x 8.6 Inches (401 x 352 x 218 mm)

  • Inner Dimensions: 12.7 x 10.7 x 7.5 Inches (323 x 273 x 190 mm)

ADD AN ENCLOSURE MOUNTING KIT:: Pole Mount / Flange Mount Kit
Availability
Ask about this product
Delivery and Return
Description
Features
  • Water Resistant JIC Enclosure Design with Gasketed Lid
  • Extended Lid for Increased Clearance
  • Meets NEMA 1, 2, 4, 4X, 12, 13, IP65, IP66
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Raised Bosses and Threaded Brass Inserts for Plate Mounting
  • Includes Stainless Steel Mounting Brackets
  • RF Transparent and Non-Conductive
  • Outer Dimensions: 15.7 x 13.8 x 8.6 Inches (401 x 352 x 218 mm)
  • Inner Dimensions: 12.7 x 10.7 x 7.5 Inches (323 x 273 x 190 mm)
  • Pole Mounting Kit Available
 Applications
  • Rapid Deployment Systems
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Solar Equipment Enclosure
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure


Extreme Protection Built to Last

The Altelix NF141208 NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
