Ubiquiti Networks - NSM5 - NanoStation M5 5GHz 2x2 MIMO airMAX TDMA

MPN: NSM5-US

SKU: UBI-NSM5-US

$85
$89
Availability Available 6 in stock.
Ask about this product
Delivery and Return
Description

Ubiquiti Networks NSM5 Overview

The NanoStation5 Broadband Outdoor Wireless CPE Router from Ubiquiti Networksfeatures a broadband wireless CPE technology, hi-gain two antenna system, advanced radio architecture, and firmware technology allowing throughput, stability, and capacity performance. The NanoStation5 is a reliable solution for high performance and can work in extreme temperature and weather conditions.

NanoStation5 utilizes Adaptive Antenna Polarity technology, which can statically or dynamically switch antenna polarities to optimize your connections. The AirOS is an intuitive, versatile Ubiquiti -firmware technology that is included with NanoStation5. It is designed to require no training to operate. Behind the user interface is a powerful firmware architecture which enables high-performance outdoor multi-point networking.


Ubiquiti Networks NSM5

General Specifications
Processor Atheros AR2313 SOC, MIPS 4KC, 180 MHz
Memory 16 MB SDRAM, 4 MB flash

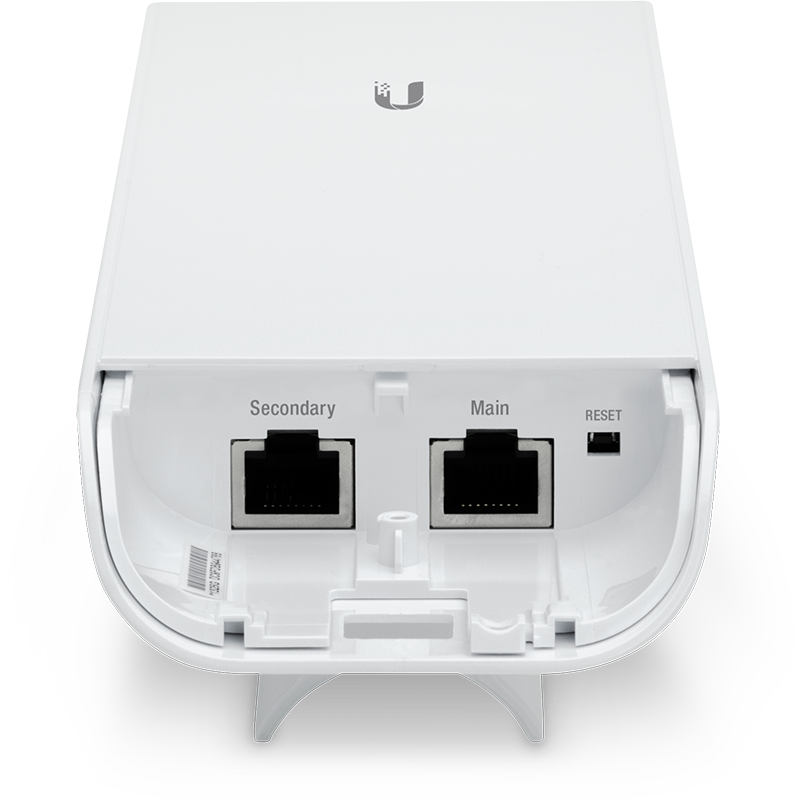

Networking Interface 10/100 BASE-TX (Cat5, RJ-45) Ethernet interface
Range Outdoor (BaseStation Antenna Dependent): Over 32,808' (10,000 m)
Using External Antenna (Optional): 32,8083' (10,0000 m)
Throughput 25 Mb/s+ TCP/IP
Radio Operating Frequency
TX Specification Radio Operating Frequency: 5.475 to 5.825 GHz

802.11a OFDM
Data Rate: Average Power: Tolerance
6 Mb/s: 24 dBm: +/-1.5 dB
9 Mb/s: 24 dBm: +/-1.5 dB
12 Mb/s: 24 dBm: +/-1.5 dB
18 Mb/s: 24 dBm: +/-1.5 dB
24 Mb/s: 24 dBm: +/-1.5 dB
36 Mb/s: 22 dBm: +/-1.5 dB
48 Mb/s: 21 dBm: +/-1.5 dB
54 Mb/s: 19 dBm: +/-1.5 dB
RX Specification Radio Operating Frequency: 5.475 to 5.825 GHz

802.11a OFDM
Data Rate: Sensitivity: Tolerance
6 Mb/s: -94 dBm: +/-1.5 dB
9 Mb/s: -93 dBm: +/-1.5 dB
12 Mb/s: -91 dBm: +/-1.5 dB
18 Mb/s: -90 dBm: +/-1.5 dB
24 Mb/s: -86 dBm: +/-1.5 dB
36 Mb/s: -83 dBm: +/-1.5 dB
48 Mb/s: -77 dBm: +/-1.5 dB
54 Mb/s: -74 dBm: +/-1.5 dB
Channel Size Support
Channel Width 5/10/20/40 MHz
Antenna
Gain Integrated 2 x 14 dBi dual polarity antennas
Polarization Multi-polarized
Polarity Adaptive vertical/horizontal
Polarization Selection Software controlled
3 dB Beamwidth Azimuth 55°
External Antennas RP-SMA connector (optional)
VSWR 1.4:1.0
Front to Back Ratio 30 dB+
3 dB Beamwidth Elevation 18°
Power
Power Supply 12 V, 1 A (12 W)
Power Method Passive Power over Ethernet (pairs 4, 5+, 7, 8 return)
Environmental
Operating Temperature -4 to +158°F (-20 to +70°C)
Operating Humidity 5 to 95% (condensing)
Software Specification
Software AirOS
Compliance and Approvals
Compliance RoHS
Approvals FCC Part 15.247, IC RS210, CE
Other
Shock and Vibration ETSI300-019-1.4
Mounting Pole mounting kit (included)

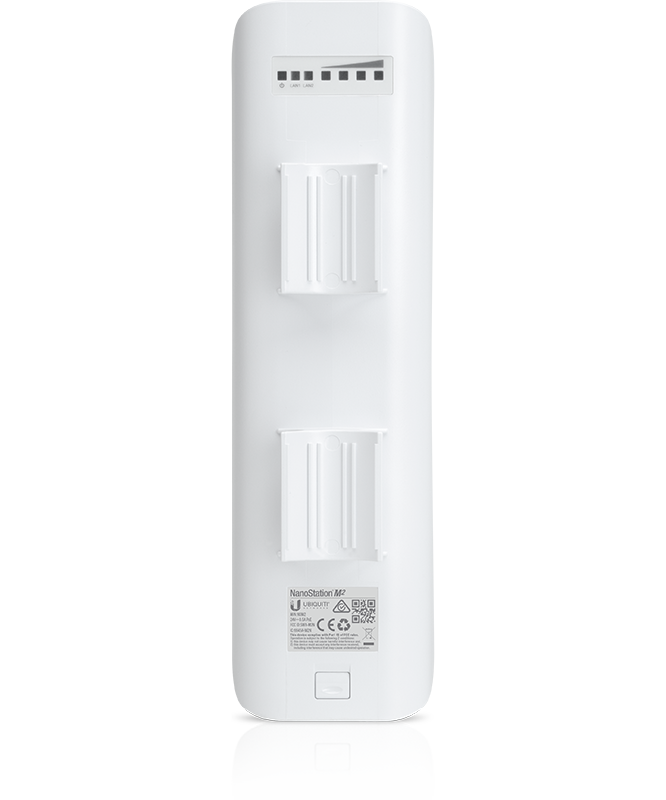

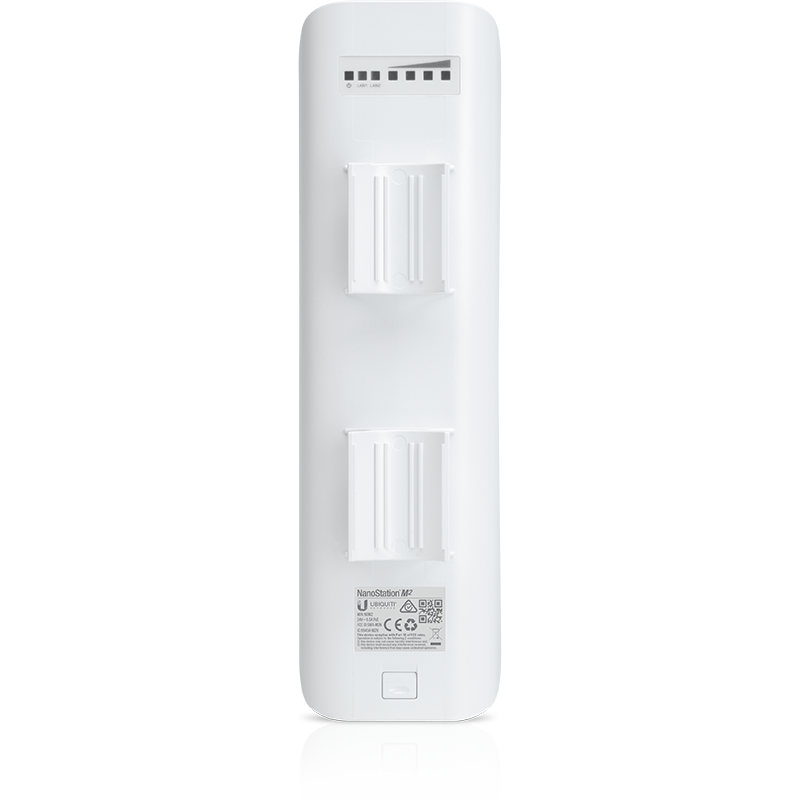

LEDs External status LEDs

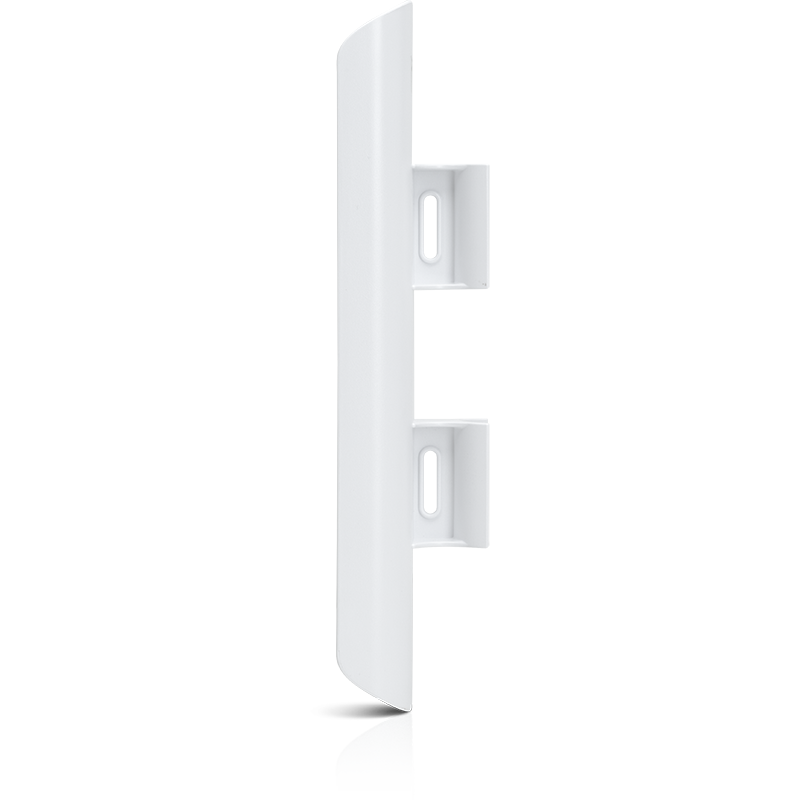

Physical Characteristics
Enclosure Material Outdoor UV stabalized plastic
Dimensions (L x W x H) 10.3 x 3.1 x 1.1" (26.4 x 8.0 x 3.0 cm)
Weight 14.1 oz (400.0 g)
Packaging Info
Package Weight 1.39 lb
Box Dimensions (LxWxH) 11.7 x 3.75 x 3.25"
