Ubiquiti Networks
Ubiquiti Networks N-SW NanoSwitch 4 Gigabit 24V PoE
MPN: N-SW
SKU: UBI-N-SW
$40
Share

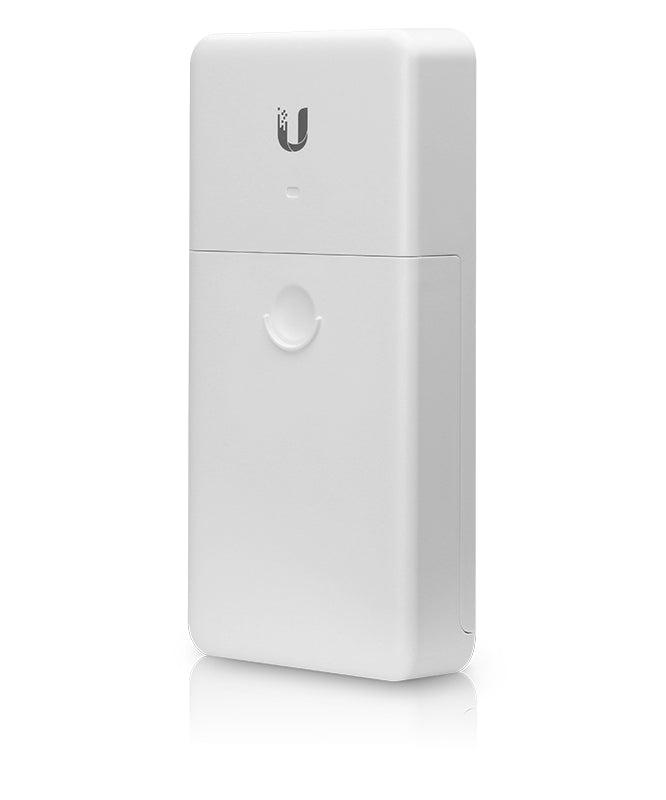

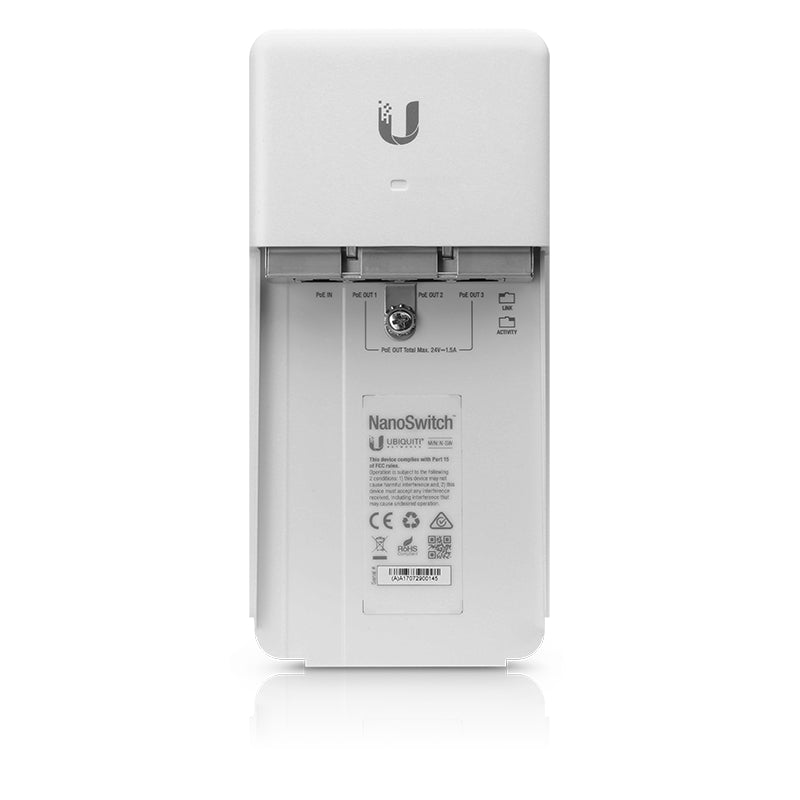

NanoSwitch Outdoor 4-Port PoE Passthrough Switch
Power Strip Simplicity for 24V Devices
Simply providing 24V 2-pair input makes NanoSwitch an outdoor 4-port unmanaged switch with "always on" 24V 2-pair output on three ports.
PoE Passthrough
PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.
PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 24W PoE output.
Designed for Outdoor Durability
The NanoSwitch features an outdoor weatherproof form factor. Operating Temperature: -30 to 70° C (-22 to 158° F)
| Mechanical | |
|---|---|
| Dimensions | 196 x 934 x 32 mm ( 7.73 x 3.68 x 1.28 ") |
| Weight | 269 g (9.5 oz) |
| Enclosure Characteristics | White Polycarbonate |
| Hardware | |
| Processor | RTL8367N-VB |
| On-Board Flash Storage | 4Kbits |
| Total Non-Blocking Line Rate | 4Gbps |
| TYP. Power Consumption | 1.5W |
| Power Method | Passive 24V PoE-in |
| Supported Voltage Range | Passive 24V PoE-in |

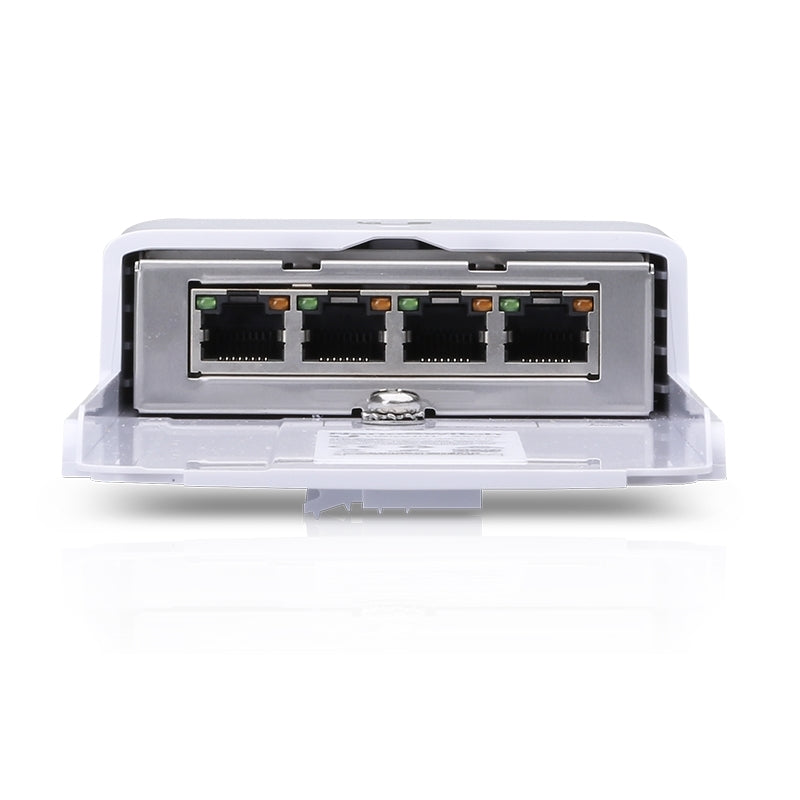

| Networking Interfaces | (4) 10/100/1000 Mbps Ethernet RJ45 |
| PoE Interfaces | Passive 24V PoE-in |
| Max PoE+ Wattage per Port by PSE | 24V@1A per port / Total 24V@1.5A for three ports |
| Passive PoE Max wattage per port | 24W per port / Total 36W for three ports |
| Operating Temperature | -30C ~ 70C |
| Operating Humidity | 5 to 95% Non-Condensing |
