Ubiquiti Networks

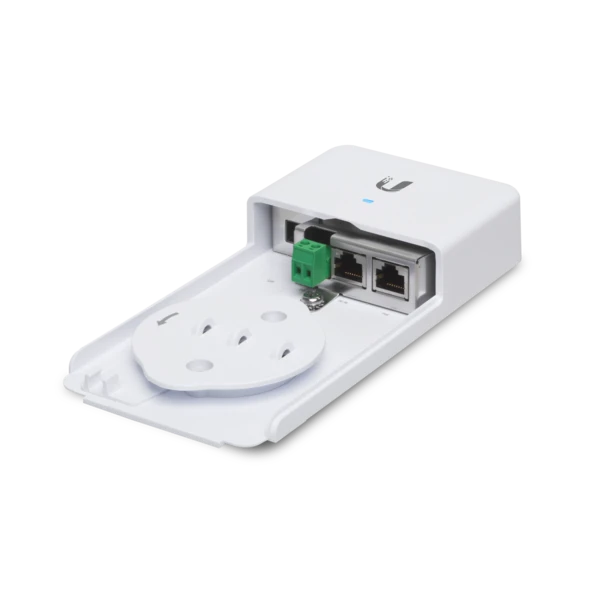

Ubiquiti Networks F‑POE‑G2 Fiber PoE Optical Data Transport for Outdoor PoE
MPN: F‑POE‑G2
SKU: UBI-FIBER-POE
$29
$29.95
Share
Fiber-to-Ethernet Conversion
The FiberPoE provides fiber connectivity to any PoE device.
Designed for Outdoor Durability
The FiberPoE features an outdoor weatherproof form factor with integrated strain relief management.
Power Versatility
The FiberPoE allows separate power from standard Ethernet cables or standard terminal block / power cable support. There are three ways to configure the input and output power:
| F-POE-G2 | |
|---|---|
| Dimensions | 196.4 x 93.5 x 32.4 mm ( 7.73 x 3.68 x 1.28") |
| Weight | 288 g (10.2 oz) |
| Enclosure | White Polycarbonate |
| Interface Connections | (1) 1 Gbps SFP Port (1) DC Terminal Block (1) DC RJ45 Port DC Injection (1) 1000 Mbps Ethernet PoE Port 10/100 Mbps Ethernet not supported |
| Typical Power Consumption | 1.5W |
| Power Method | DC Terminal Block, 2-Wire, 24VDC or 50VDC DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) Passthrough PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) PoE Passthrough |
| PoE Output | PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC), or 4-Pair (24VDC or 50VDC) PoE |
| DC Output | Terminal Block, 2-Wire (24VDC or 50VDC) |
| Input DC Voltage | 16 to 57V |
| Surge Protection | Built-In High-Current Gas Discharge Tube for DC Terminal Block and PoE Port |
| LED | White: Power On Blue: Connected Blue (Flashing): Activity |
| Operating Temperature | -40 to 60° C (-40 to 140° F) May be further restricted by the operating temperature range of the SFP module being used. |
| Operating Humidity | 10 to 95% Noncondensing |
| ESD/EMP Protection | ± 24kV Contact / Air for Ethernet |
| Certifications | CE, FCC, IC |
