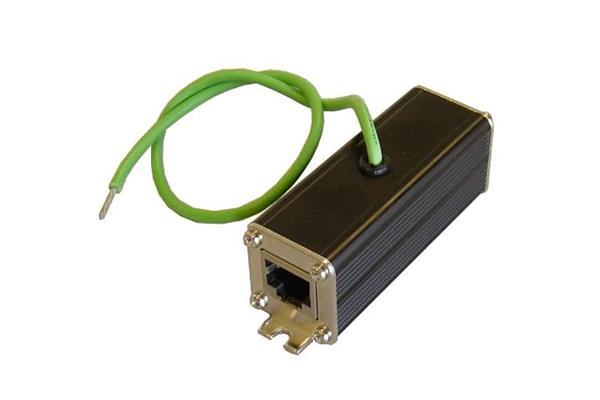

TYCON TP-ESP-1000-POE Gigabit 48V PoE Network Lightning Surge Protector

TYCON POWER SYSTEMS TP-ESP-1000-POE NETWORK LIGHTNING SURGE PROTECTOR 1000MBPS DATA RATE LAN/POE 7.5V/70V CLAMP VOLTAGE 5KA SURGE (NEW)

The TP-ESP-1000-POE are a low cost ethernet surge protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. They have a full metal body for improved EMI suppression and have integral mounting feet and separate ground wire. They are designed for indoor or outdoor use inside a weatherproof enclosure. The ESP-1000 is compatible with POE systems up to 48V. Protection is provided on all 8 CAT5 wires.

The TP-ESP-1000-POE survives many surge events and keeps on ticking.  The TP-ESP series surge protectors work with PoE and Non-PoE devices.

Weight: 0.2lb

Features

• 1000Mbps Data Rate

• 7.5V Data / 70V POE Clamping Voltage

• CAT5 and CAT5e Compatible. All 8 pins protected.

• Shielded jacks and full metal housing

• Complies with IEC 61643-21 Standard

Applications

• Wireless Access Points and Client Devices

• IP Phone and Security Camera Systems

• Industrial Control Systems
