TYCON POWER SYSTEMS RPPL1224-36-30 RemotePro 8W Continuous Remote Power System, 30W Solar Panel & Mount, Polycarbonate Enclosure, 12V 36Ah Battery 24V POE
Continuous Power Generation8WEnclosure typePolycarbonatebattery voltage12VDCPOE output voltage24VDCbattery capacity36AhSolar Panel Size30W

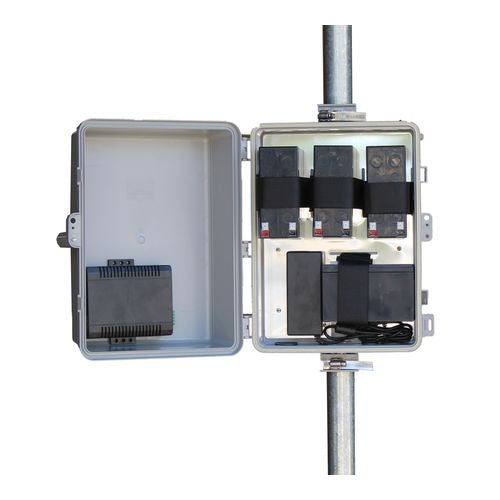

The RemotePro™ series outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics. The sealed and weatherproof enclosures have a generous amount of space inside and a removable mounting plate for mounting all types of customer electronics.
All enclosures are hinged and gasket sealed. The PL enclosure can accept a padlock or tamper seal. The ST enclosure is equipped with 2 tamper proof closures that are operated by a special key (included).
The enclosures can be mounted to a wall or pole with the included mounting bracket system.

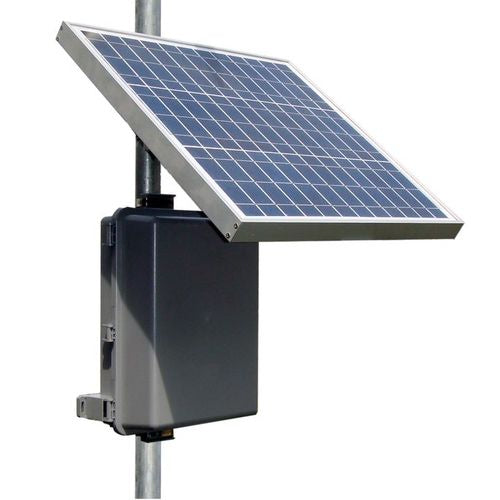

The high quality solar panels have a 25year power output guarantee. The 5W and 10W solar panels are mounted directly to the DC enclosure saving space and making a more convenient assembly. The 30W and 60W solar panel can be mounted to a 2" to 4" diameter pole or alternately to a wall with the included bracket kit.

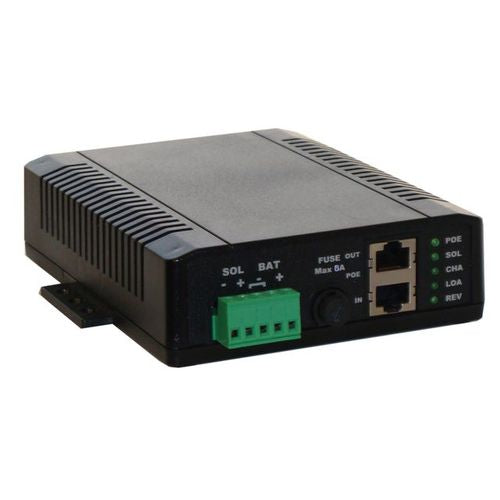

Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid batteries. The PL and ST systems include a controller with built in POE inserter and DCDC converter to supply up to 48V POE from the 12V battery system. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.
Batteries in the DC and PL enclosures are an Advance Glass Matt (AGM) type which have good all temperature performance. The ST enclosure uses a high performance GEL battery which gives the best available deep discharge and temperature performance.
Features
- Complete Remote Power Solution for Off-Grid operation
- Weatherproof Nema 4X / IP65, UV resistant, outdoor enclosures
- Generous interior space for customer electronics
- Enclosures can be Wall or Pole Mounted
- High Performance Valve Regulated Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications
- Wireless Base Stations and Clients
- Wireless Bridge and Repeaters
