Polycarbonate Enclosure, 12V 18Ah Batt, 24V POE, Solar Ready. 24hr backup @ 7W
- Protects sensitive electronics from damaging power line surges
- Provides 24hour battery backup @ 3.5 W load or 12 hours @7W load per 9Ah battery
- Powered Over CAT5 Ethernet cable
- Several POE voltages available (12V, 18V, 24V and 48VDC)

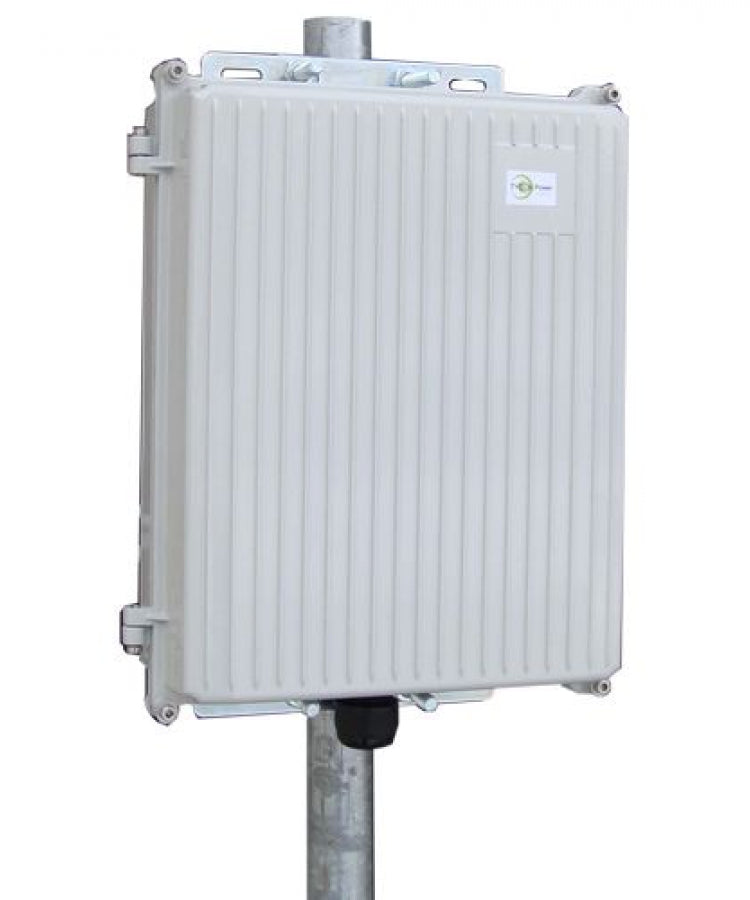

The UPS Pro™ series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered over a CAT5 network cable via Power Over Ethernet (POE) using a POE Supply/Inserter (included). Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.
Customer electronics operate from battery power so they are isolated from damaging power line surges. The batteries are continuously charged via the POE input and/or solar power. The controller has a secondary wire terminal output which equals the battery voltage for connecting multiple pieces of equipment to the battery power, in addition to the POE output.
There is a generous amount of space reserved inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Most models are equipped with a Solar Ready controller so they can also be powered using solar panels in addition to or instead of the POE power supply.
Multiple configurations are available for 12V or 24V systems with various battery storage capacities and POE output voltages.
A typical 250mW wireless access point with average power consumption of 3.5W will run 26 hours on a 9AH battery at room temperature or 17 hours at -20 deg C.
Features
- Weatherproof Nema 4X / IP65, UV resistant, outdoor enclosures
- Powered over CAT5 cable using POE and/or Solar
- Solar Assist. models with integrated solar panels
- Generous interior space for customer electronics
- Isolates Customer Equipment from Power Line Surges
- High Quality AGM VR Sealed Lead Acid Batteries
- Advanced battery charge controller protects against overcharge and over discharge
Applications
- Wireless Base Stations and Clients
- Wireless Bridge and Repeaters
- Mission critical outdoor power
