Tycon Solar 12V Smart Battery Charger 300W Regulated
Tycon Solar 12V Smart Battery Charger 300W Regulated
Tycon Solar 12V Smart Battery Charger 300W Regulated

Tycon Power Systems

Tycon Solar 12V Smart Battery Charger 300W Regulated

MPN: TP-BC12-300

SKU: TYCON-TP-BC12-300

$313.45
$329.95
Availability
Ask about this product
Delivery and Return
Description

The TP-BC series of smart battery chargers provide up to 210W of total power. Part of the power is allocated to the regulated load output and remaining power is allocated to battery charging. The smart battery charger is compatible with GEL/AGM type sealed lead acid batteries and also WET type lead acid batteries (like car batteries).

The load output is regulated so that output voltage does not exceed 12.5VDC on the 12V model and 24.5VDC on the 24V model and 48.5VDC on the 48V model. Also the load output will turn off when the battery voltage is low to prevent over discharge of the batteries which can shorten the useable life of the batteries. Load output will turn back on automatically when batteries have sufficient charge. The TP-BC series provides seamless switchover from AC power to battery power so there is no interruption which could reset a user’s electronics. The charger auto-recovers from a power failure so no user action is necessary.

The charger has various protections for short circuit, overvoltage protection, overcurrent and reverse battery. It operates over a wide temperature range making it suitable for industrial applications.

The battery charger will not work without a battery connected.

A solar panel and solar charge controller can be added to the system if supplemental power from solar is desired. A Wind Turbine can be added if wind power is available.

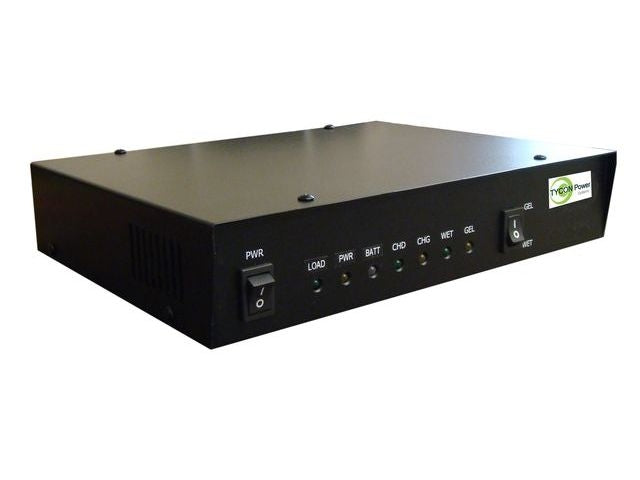

There are various LEDS on the front panel to see status-at-a-glance of the Load Output, Charging Condition and AC Power Condition.

LED Indicators

LOAD (Load Power is Turned On = Green)

PWR (AC Power On = Yellow)

BATT (Battery is Connected = Green)

CHD (Battery is Fully Charged = Green)

CHG (Battery is Charging = Yellow)

WET / GEL – Switch is positioned to WET (Green) or GEL (Yellow)



Features

  • 210W Total Power
  • Regulated 12VDC or 24VDC or 48VDC Output Voltage
  • Seamless Switchover From AC to Battery Power when AC Power Fails.
  • Load Control to Prevent Battery Overdischarge. Automatic Recovery.
  • Smart Charge program for GEL/AGM or WET type batteries
  • Wide temperature operation

Applications

  • Wireless Base Stations, Cellular Base Stations
  • Surveillance Systems
  • Battery Backup Systems


TP-BC12-300 TP-BC24-300 TP-BC48-300

Total Power Available (for Load and Battery charging)

  210W 210W 210W

Nominal Battery Voltage

  12VDC 24VDC 48VDC

Load Output Min Current

 1A 1A 1A

Load Output Max Current

 12A 8A 4A

Battery Charge Max Current

 5A

7.5A*

* with zero load. If load current is 5A then battery charge current is 3.75A.

3.62A*

*with zero load. If load current is 2.5A then battery charge current is 1.9A.

Suggested Max Load

 ~10A (120W)  ~5A (120W) ~2.5A (120W)

Battery Charger Voltage

 WET Equalize = 14.6V, Float = 13.2V
GEL Equalize = 14.2V, Float = 13.5V

  WET Equalize = 28.8V, Float = 26.4V
GEL Equalize = 28.4V, Float = 27V		 WET Equalize = 58V, Float = 53V
GEL Equalize = 56.8V, Float = 54V

Overdischarge Protection

 10.7V Load off / 12.6V Load on  21.5V Load off / 25.2V Load on  40V Load off / 51V Load on



Load Regulation

 5%

Line Regulation / Ripple

 1%

Noise

 2%

Efficiency

 75% Minimum

Self Consumption

 <5W

Load and Batt Connections

 Screw Wire Terminal, 10 AWG MAXIMUM

EMC Standards

 FCC Class A , NE55022 Class A

Safety Standards

 UL1950, CSA 22.2, TUV EN60950

AC Power Input (+-10%)

 Selector Switch 120VAC / 240VAC , 50/60Hz

AC Input Current

 3.5A @ 115VAC / 1.8A @ 240VAC

Fuse

 250V 6A Internal SloBlow (Littlefuse #021306.3)

Operating Temperature

 -20 to +60C (-4 to +140°F)

Operating Humidity (RH)

 Up to 90% (non condensing)

Cooling

 Temperature Controlled Fan

Storage Temperature

 -25 to +85°C (-13 to +185°F)

Storage Humidity

 Up to 90% (non-condensing)

MTBF (Mean Time Between Failure)

 81,940 Hours

Dimensions (LxWxH)

 250 x 185 x 55mm (9.8 x 7.3 x 2.2”)

Weight

 2.4kg (5.2lb)
