Tycon Power Systems

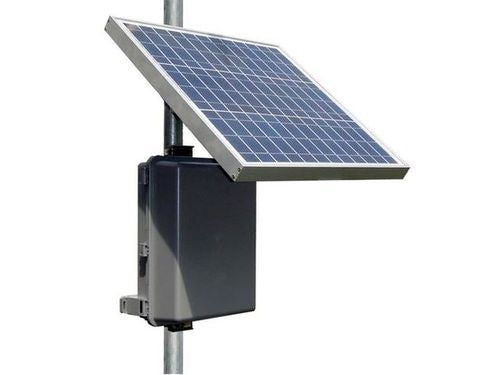

RemotePro 8W Continuous Remote Power System, 30W Solar Panel
MPN: RPPL2424-18-30
SKU: TYCON-RPPL2424-18-30
Share
Rated Power Generation |
8W |
Reserve Time @ Rated Power |
27hrs |
POE Output Voltage (DC) |
24V 1.2A |
Secondary Volts Out (DC) |
24V 1.5A |
Battery Capacity (Amp Hrs) |
34Ah |
Battery Voltage (DC) |
24V |
Battery Type |
Valve Unregulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
Battery Life |
5 Years |
Controller Type |
Dual Input: Solar/POE, Dual Output: Battery Voltage/POE with DCDC Converter |
Overcharge Protection |
28.6V |
Over-discharge protection |
22.0V |
Over-discharge recovery volts |
24.5V |
Controller Self Consumption |
< 0.5W |
Enclosure Type |
Polycarbonate |
Enclosure External Size |
17.5 x 12.5 x 6” (445x318x152mm) |
Enclosure Internal Size |
14 x 10 x 5” (356x254x127mm) |
Solar Panel Dims |
26” X 16” (654 x 401mm) |
Operating Temperature |
-30°C to +60°C (-22°F to 140°F) |
System Weight (no batteries) |
22lb (10kg) |
Battery Weight |
22lb (10kg) |
Wind Speed Rating |
110MPH (49m/s) |
Warranty |
3 Years |
