Mikrotik
MPN: CRS112-8G-4S-IN
SKU: MIK-CRS1128G4SIN

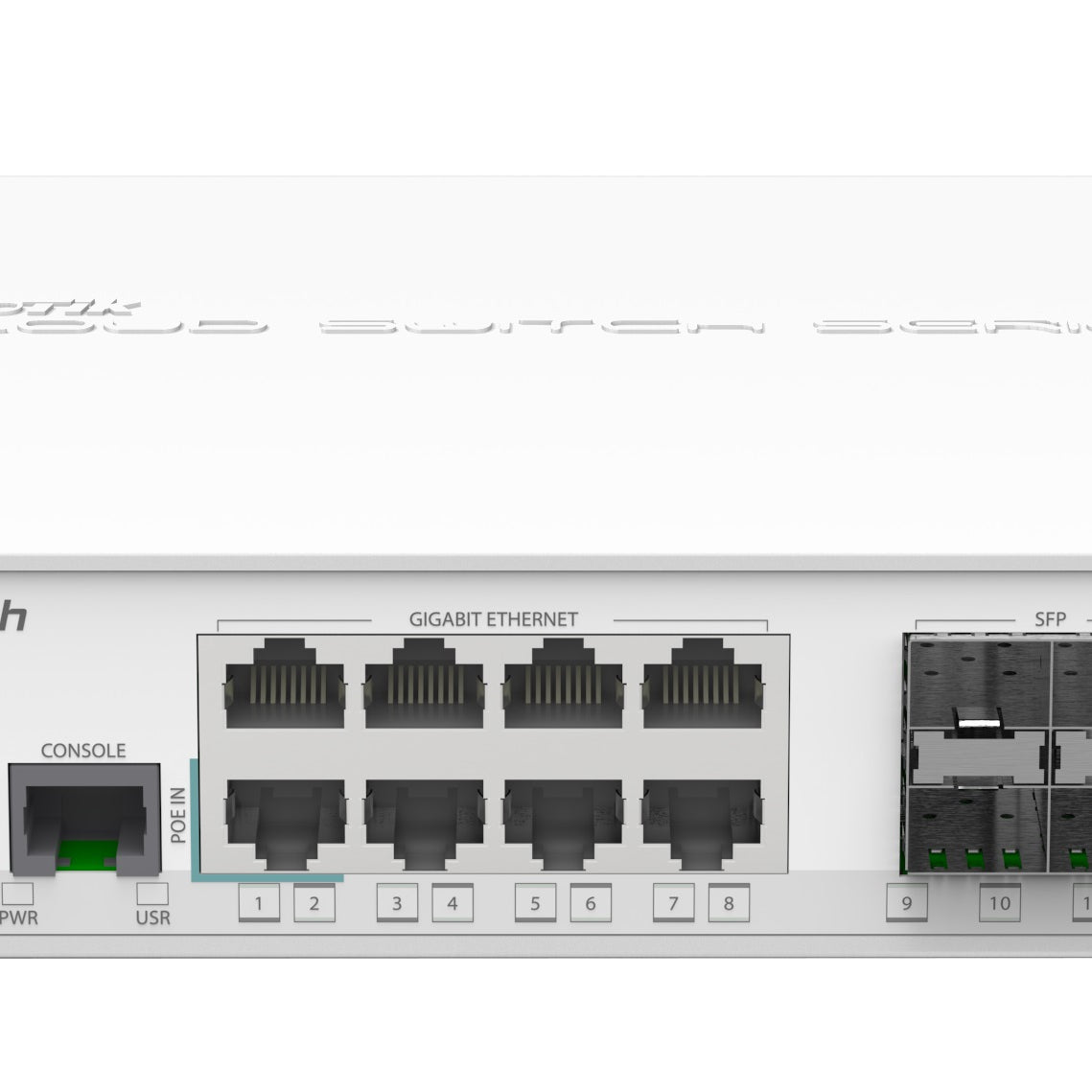

Cloud Router Switch 112-8G-4S-IN is a “small size low cost” member of our CRS series. It comes with eight Gigabit Ethernet ports and four SFP cages.
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS.
All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

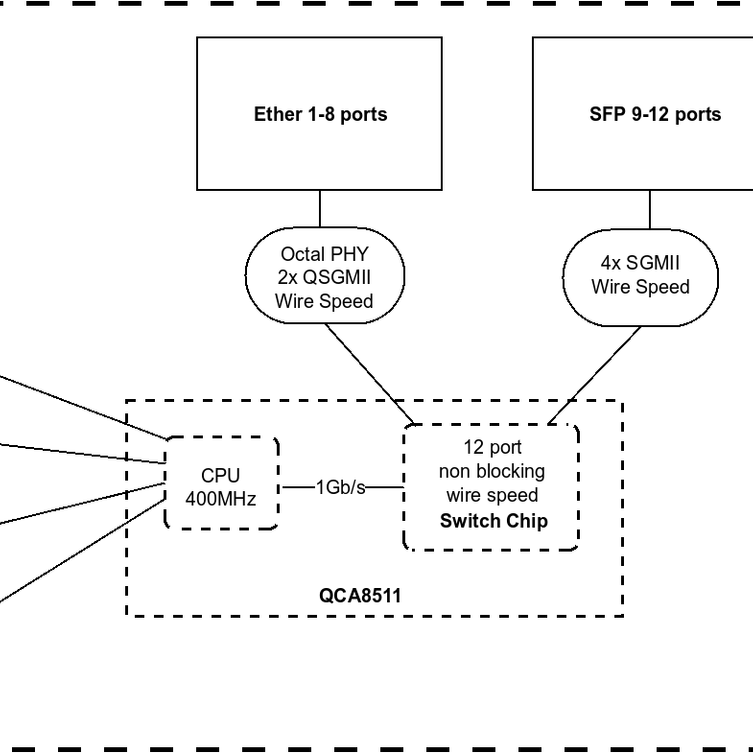

This Cloud Router Switch has a QCA8511 400MHz CPU, 128MB RAM, 8xGigabit LAN, 4xSPF, RouterOS L5, desktop case and PSU.
|
Product code |
CRS112-8G-4S-IN |
|
CPU nominal frequency |
400 MHz |
|
CPU core count |
1 |
|
Size of RAM |
128 MB |
|
10/100 Ethernet ports |
None |
|
10/100/1000 Ethernet ports |
8 |
|
MiniPCI slots |
0 |
|
MiniPCI-e slots |
0 |
|
Number of USB ports |
0 |
|
Power Jack |
1 |
|
PoE in |
Yes |
|
PoE out |
No |
|
Supported input voltage |
10 V - 57 V |
|
Voltage Monitor |
Yes |
|
PCB temperature monitor |
Yes |
|
CPU temperature monitor |
No |
|
Dimensions |
200x143x44mm |
|
Operating System |
RouterOS |
|
Operating temperature range |
-30C to +70C |
|
License level |
5 |
|
Current Monitor |
Yes |
|
CPU |
QCA8511-AL1C |
|
Max Power consumption |
13.5W |
|
SFP ports |
4 |
|
SFP+ ports |
0 |
|
Serial port |
RJ45 |
|
CRS112-8G-4S-IN |
|||||||
|
Mode |
Configuration |
64 byte |
512 byte |
1518 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Switching |
Non blocking Layer 2 throughput |
17,857.1 |
9,142.9 |
2,819.5 |
11,548.9 |
975.3 |
11,844.0 |
|
Switching |
Non blocking Layer 2 capacity |
17,857.1 |
18,285.7 |
2,819.5 |
23,097.7 |
975.3 |
23,687.9 |
|
Switching |
Non blocking Layer 1 throughput |
17,857.1 |
12,000.0 |
2,819.5 |
12,000.0 |
975.3 |
12,000.0 |
|
Switching |
Non blocking Layer 1 capacity |
17,857.1 |
24,000.0 |
2,819.5 |
24,000.0 |
975.3 |
24,000.0 |
|
CRS112-8G-4S-IN |
QCA8511 1G all port test |
||||||
|
Mode |
Configuration |
1518 byte |
512 byte |
64 byte |
|||
|
kpps |
Mbps |
kpps |
Mbps |
kpps |
Mbps |
||
|
Bridging |
none |
48.0 |
582.9 |
73.5 |
301.1 |
78.0 |
39.9 |
|
Bridging |
25 bridge filter rules |
26.1 |
317.0 |
28.6 |
117.1 |
29.6 |
15.2 |
|
Routing |
none |
46.5 |
564.7 |
65.7 |
269.1 |
71.1 |
36.4 |
|
Routing |
25 simple queues |
14.5 |
176.1 |
16.1 |
65.9 |
16.8 |
8.6 |
|
Routing |
25 ip filter rules |
7.8 |
94.7 |
8.0 |
32.8 |
8.3 |
4.2 |
