Citel P8AX25-N/MF Gas Tube Coaxial Surge Protector

Citel

Citel P8AX25-N/MF Gas Tube Coaxial Surge Protector

MPN: P8AX25-N/MF

SKU: CIT-P8AX25-N/MF

$58.50
$65
Availability
Ask about this product
Delivery and Return
Description

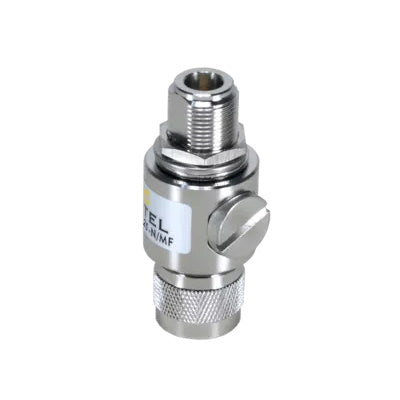

Citel P8AX25-N/MF Gas Tube Coaxial Surge Protector with Male to Female Connectors, Frequency range 0-5 GHz, Max Power 500W

The P8AX series coaxial surge protectors have been designed to protect antennas, microwaves, broadband applications, two-way radios, cellular equipment and GPS equipment against lightning surges and electrical transients. They are a first line of defense for your sensitive equipment.



Applications:

    • Tower Mounted Amplifiers (TMA)
    • Global Positioning Systems (GPS)
    • Antenna Systems
    • Tower Top Electronics (TTE)
    • Transmitters and Receivers
    • WiFi
    • Broadband Wireless



High-Frequency Surge Protection:

    • 20kA transient amps protection (8/20мs)
    • 5kA transient amps protection (10/350мs)
    • DC Pass to +/-48V
    • VSWR < 1.2
    • Insertion Loss < 0.1dB
    • Bi-directional, series installed
    • Removable GDT
    • Mixed Connector Types Available, i.e N to SMA, etc...



ELECTRICAL PROPERTIES

nsulation resistance IR ≥10 GOhms
Impedance Ω 50
RF Power W 190 W
Return Loss db >20
VSWR :1 <1.2:1
Max Total Discharge Current kA 20 kA
Max Discharge Current kA 20 kA
DC Pass   Yes
RF SPD TYPE   UL497E LISTED
VOLTS (V) 48
AC/DC/DC PV/RF   RF
WIRES   1W+GROUND
LINE CURRENT MAX (A) 10
AMBIENT MIN (C) -40
AMBIENT MAX (C) +85
IN (kA) 10
FREQUENCY RANGE (GHz) 0-4.0
INSERTION LOSS (db) <0.2
RETURN LOSS (db) >22
VSWR



MECHANICAL PROPERTIES

Technology   Gas discharge tube
Dimensions   See diagram
TECHNOLOGY   GDT
CONNECTION METHOD   SERIES CONNECTOR, BI-DIRECTIONAL
MOUNTING   BULKHEAD, OPTIONAL BRACKET
MATERIAL   Cu, Zn, Sn plated Brass, PTFE
NEMA RATING (IP RATING)   NEMA 6P (IP67)
DIMENSIONS   See diagram
WEIGHT   0.30 lbs



INSTALL

Operating Temperature °C -45 °C
Operating Temperature °C 85 °C
Operating Temperature °F -50 °F
Operating Temperature °F 85 °F
Operating Relative Humidity %RH Can be submerged
Operating Altitude m 2000 m
Operating Altitude Ft 6500 Ft
Housing/Enclosure material   Cu, Zn, Sn plated Brass
Mounting   Bracket or throught hole
IP Environmental rating   IP65
NEMA Environmental rating   NEMA 4
Installation Location   Indoor / outdoor
Spare part   BB HF 250/20
Accessories   BK
Product Dimension mm 64 mm
Product Dimension mm 26 mm
Product Dimension mm 13.8 mm
Product Dimension In 2.51 In
Product Dimension In 1.02 In
Product Dimension In 0.54 In
