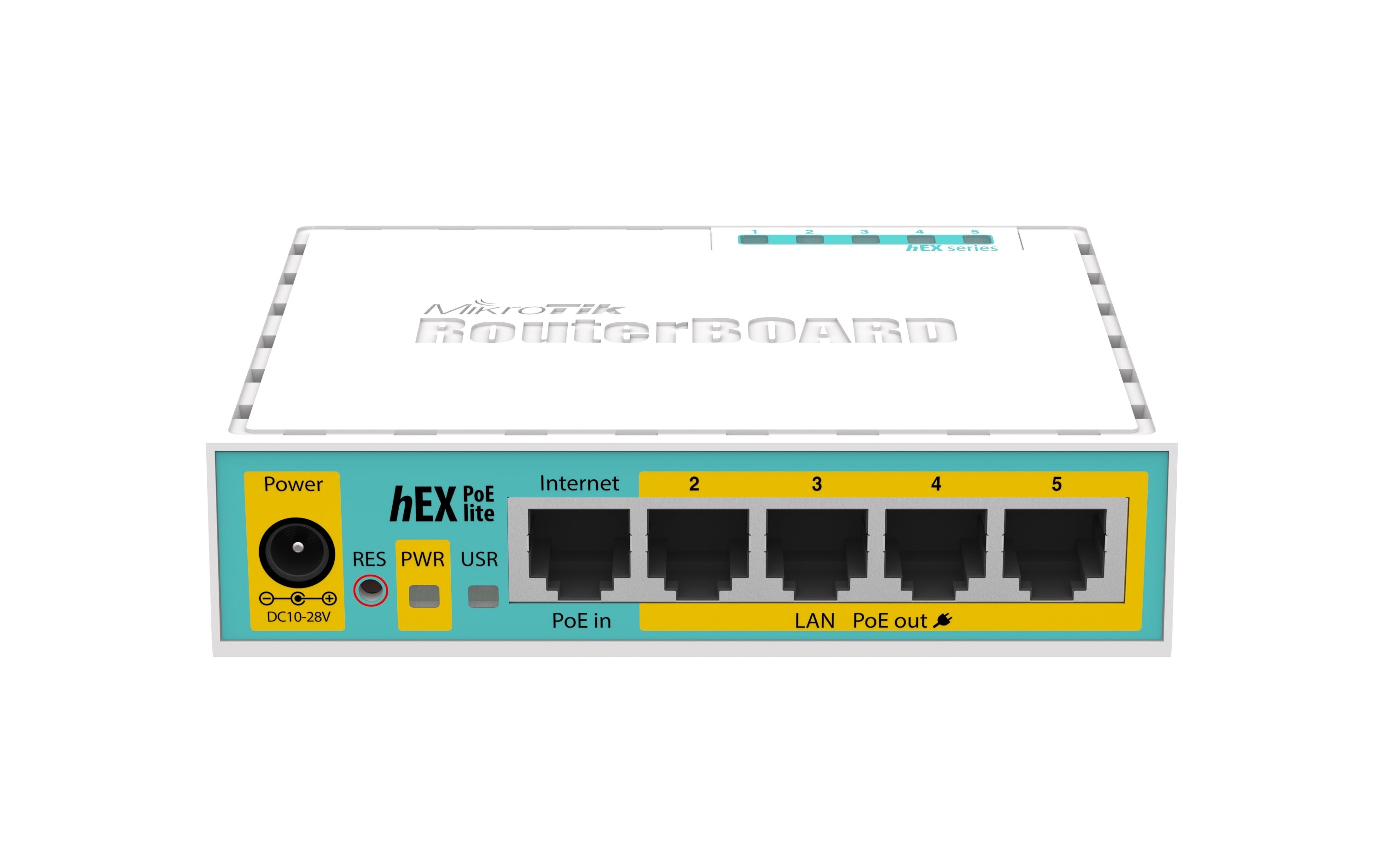

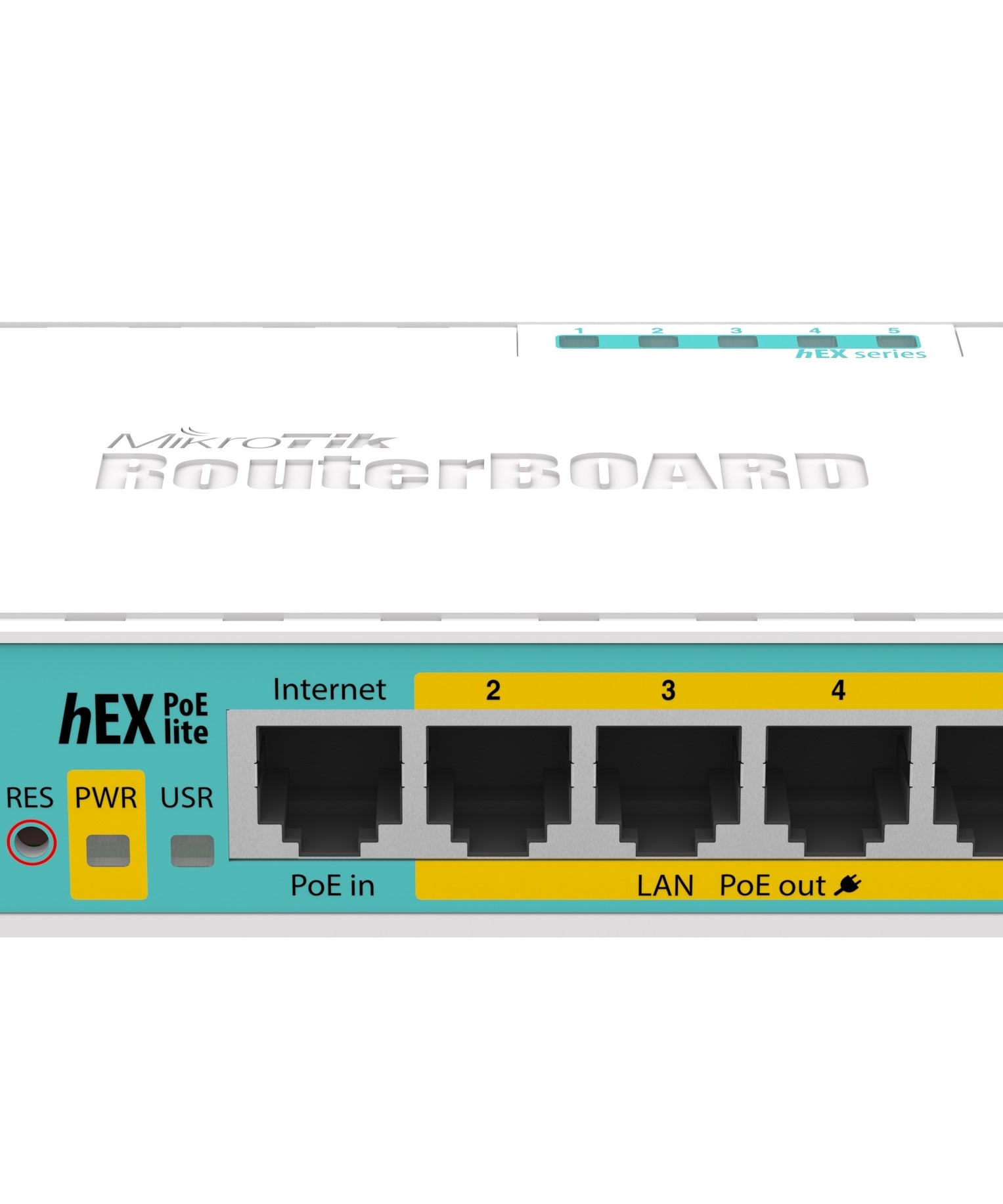

MikroTik RB750UPr2 hEX PoE lite, 650MHz CPU, 64MB RAM, 5 LAN, USB
MikroTik RB750UPr2 hEX PoE lite, 650MHz CPU, 64MB RAM, 5 LAN, USB

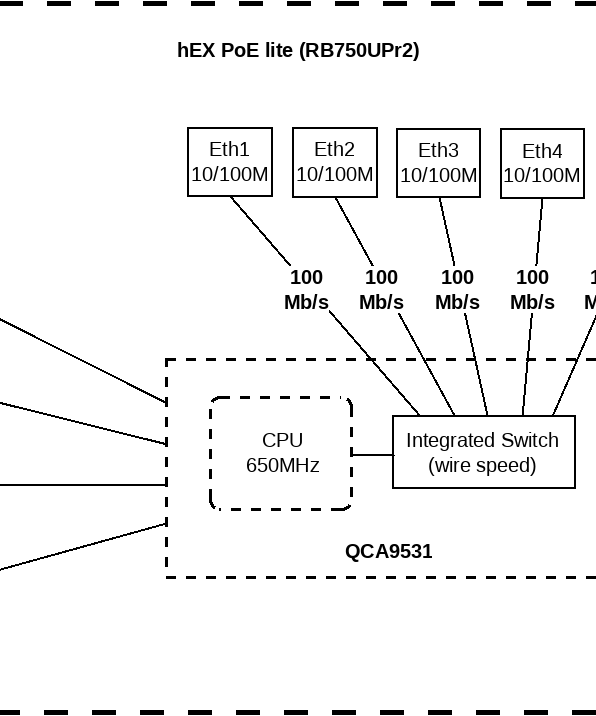

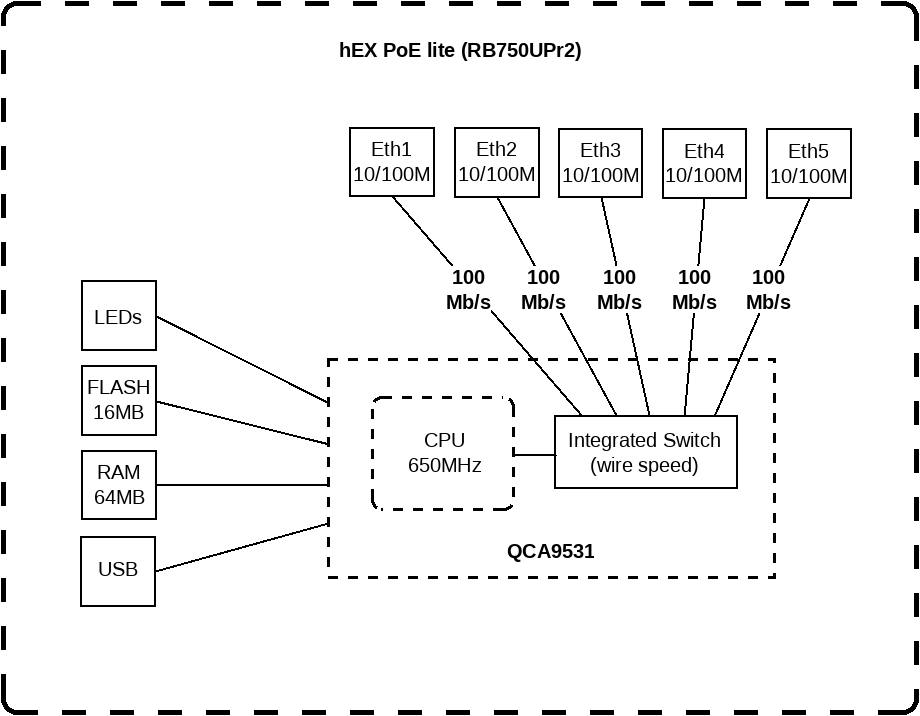

MikroTik RB750UPr2 Block Diagram

Mikrotik

MikroTik RB750UPr2 hEX PoE lite, 650MHz CPU, 64MB RAM, 5 LAN PoE Out

MPN: RB750UPr2

SKU: MIK-RB750UPr2

$56
$59.95

This model supports PoE output on it’s Ethernet ports, so you can power other
devices.



• 5x 10/100 Mbps Ethernet ports
• 650 MHz CPU, 64 MB RAM
• Ethernet ports 2-5 can power other PoE capable devices

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

hEX PoE lite is a small five port Ethernet router in a plastic case, it has a USB 2.0 port and PoE output.



Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.



It is affordable, small and easy to use. With its compact design and clean looks, it will fit perfectly into any SOHO environment.



Included parts:

    • 24V 2.5A power adapter
    • IEC cord




Product specifications
Product code RB750UPr2
10/100 Ethernet ports 5
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Current Monitor Yes
Dimensions 113x89x28mm
License level 4
Max Power consumption 3W
Number of USB ports 1
Operating System RouterOS
PCB temperature monitor Yes
PoE in Yes
PoE out Yes
Power Jack 1
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Supported input voltage 6 V - 30 V
Tested ambient temperature -30 + 70 C
USB slot type USB type A
Voltage Monitor Yes



Ethernet test results

RB750UPr2 QCA9531 (650Mhz) 100M all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 40.6 493.0 117.4 480.9 217.0 111.1
Bridging 25 bridge filter rules 40.6 493.0 70.1 287.1 70.9 36.3
Routing none (fast path) 40.6 493.0 117.4 480.9 200.8 102.8
Routing 25 simple queues 40.6 493.0 79.6 326.0 90.8 46.5
Routing 25 ip filter rules 40.6 493.0 42.2 172.8 43.2 22.1



    • All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
    • Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
    • Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
    • Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
