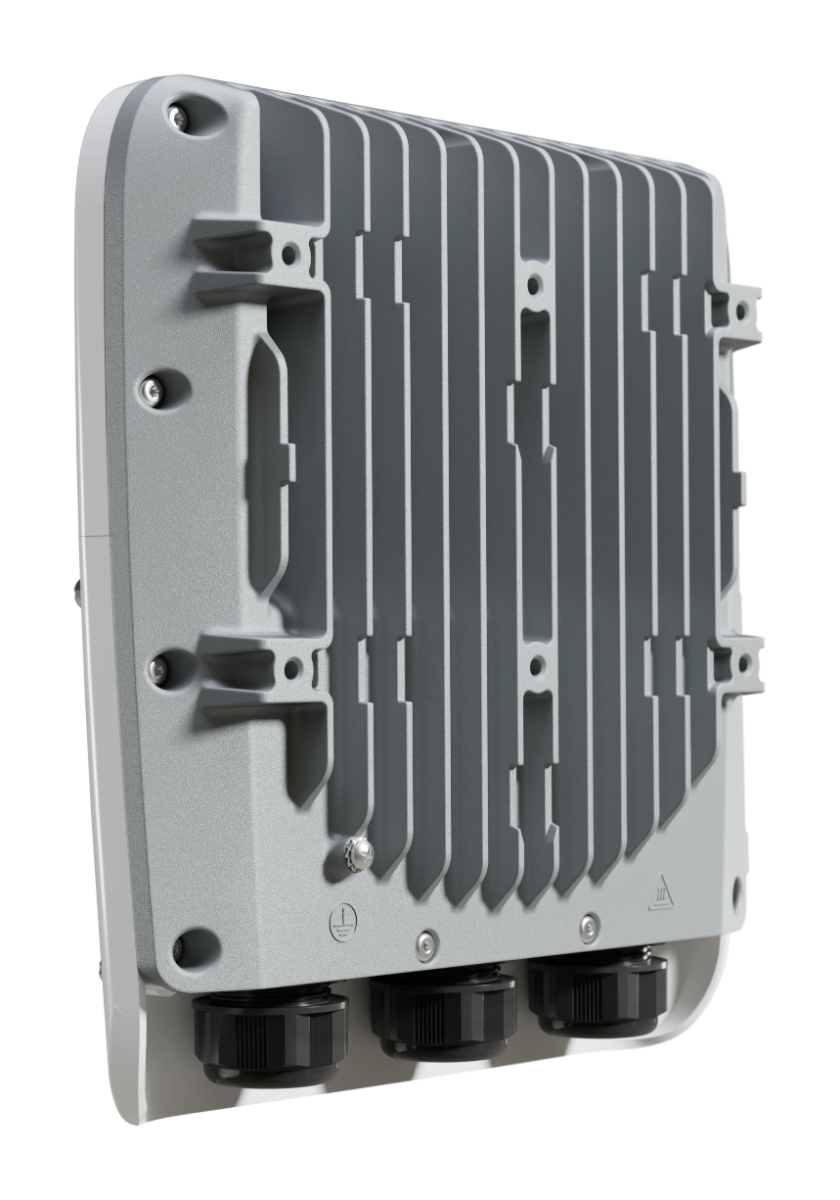

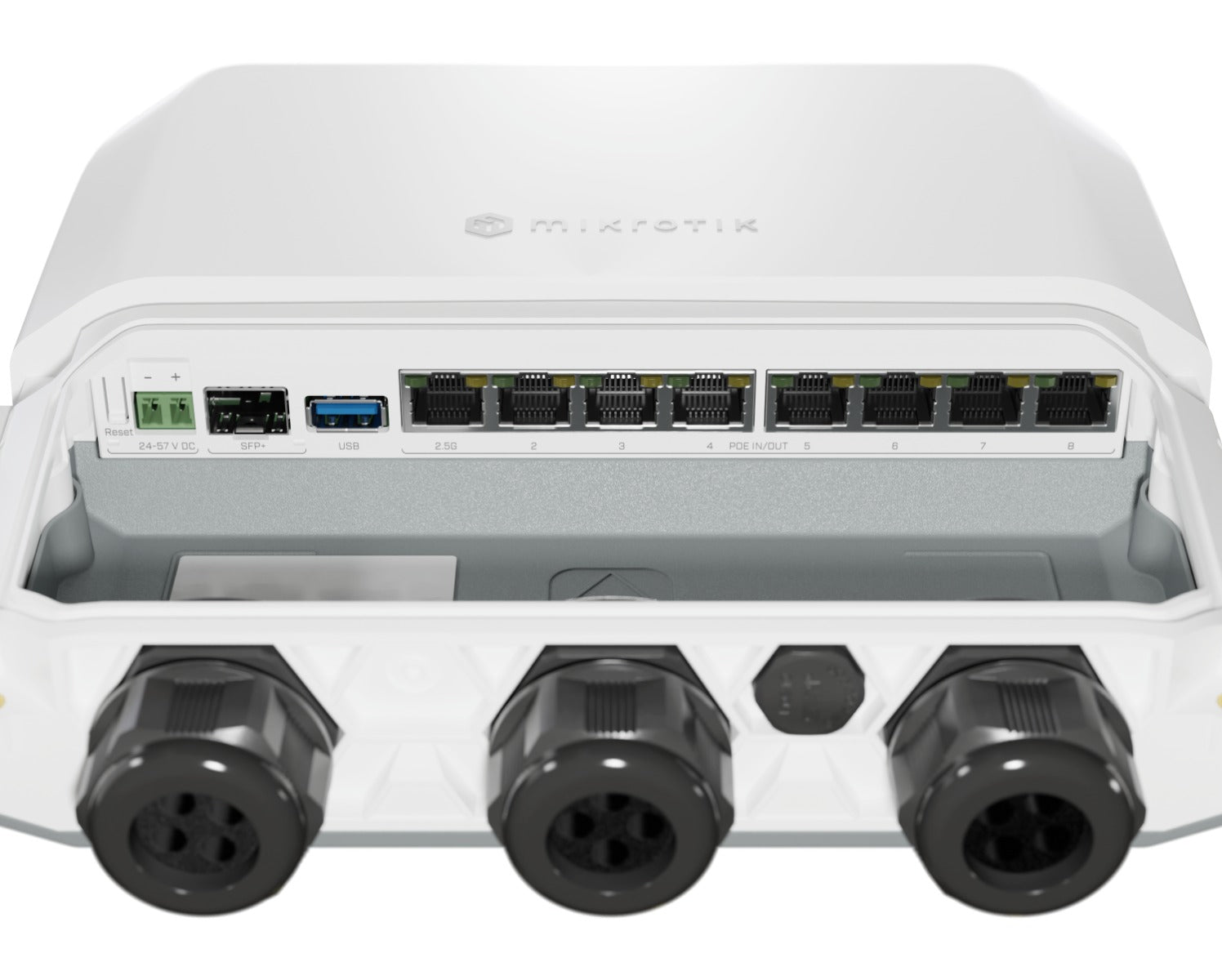

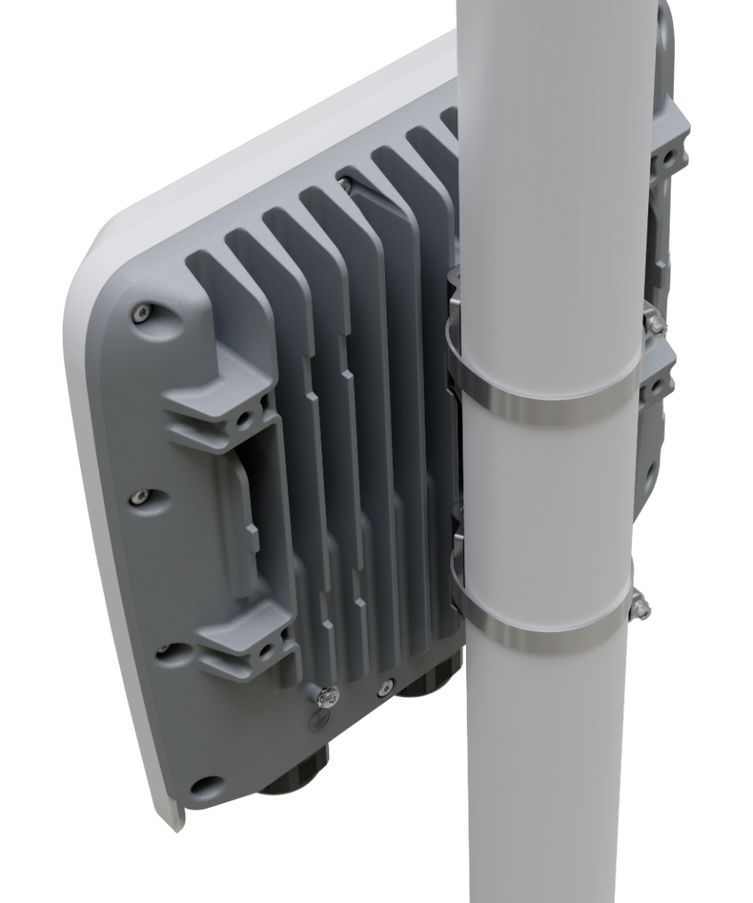

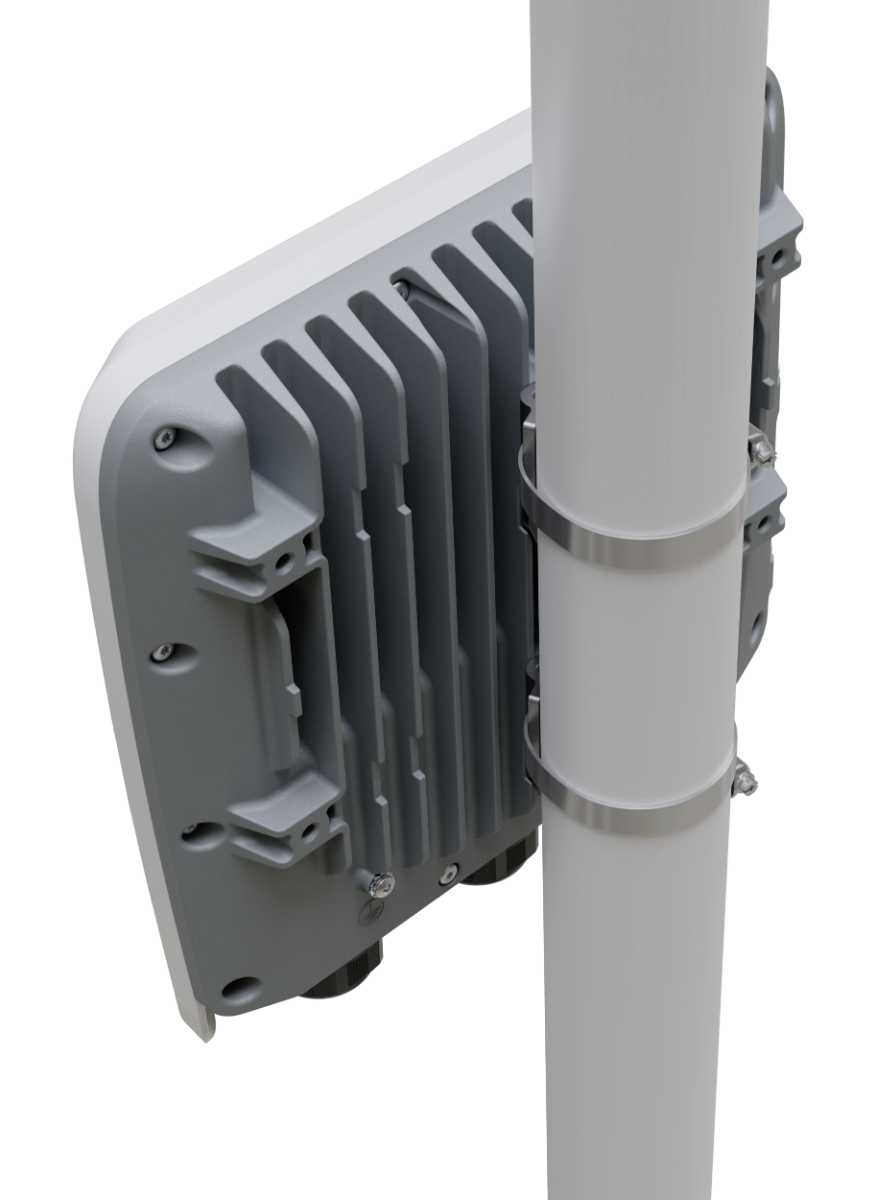

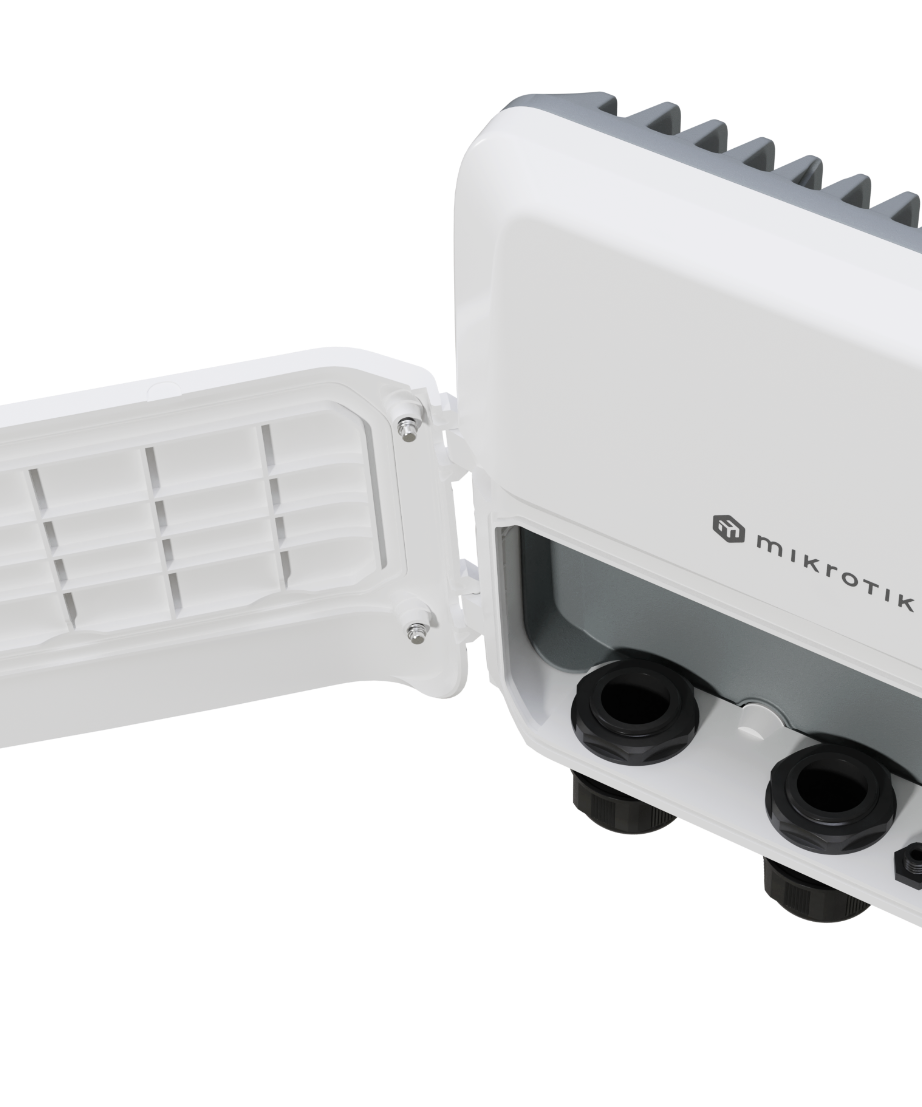

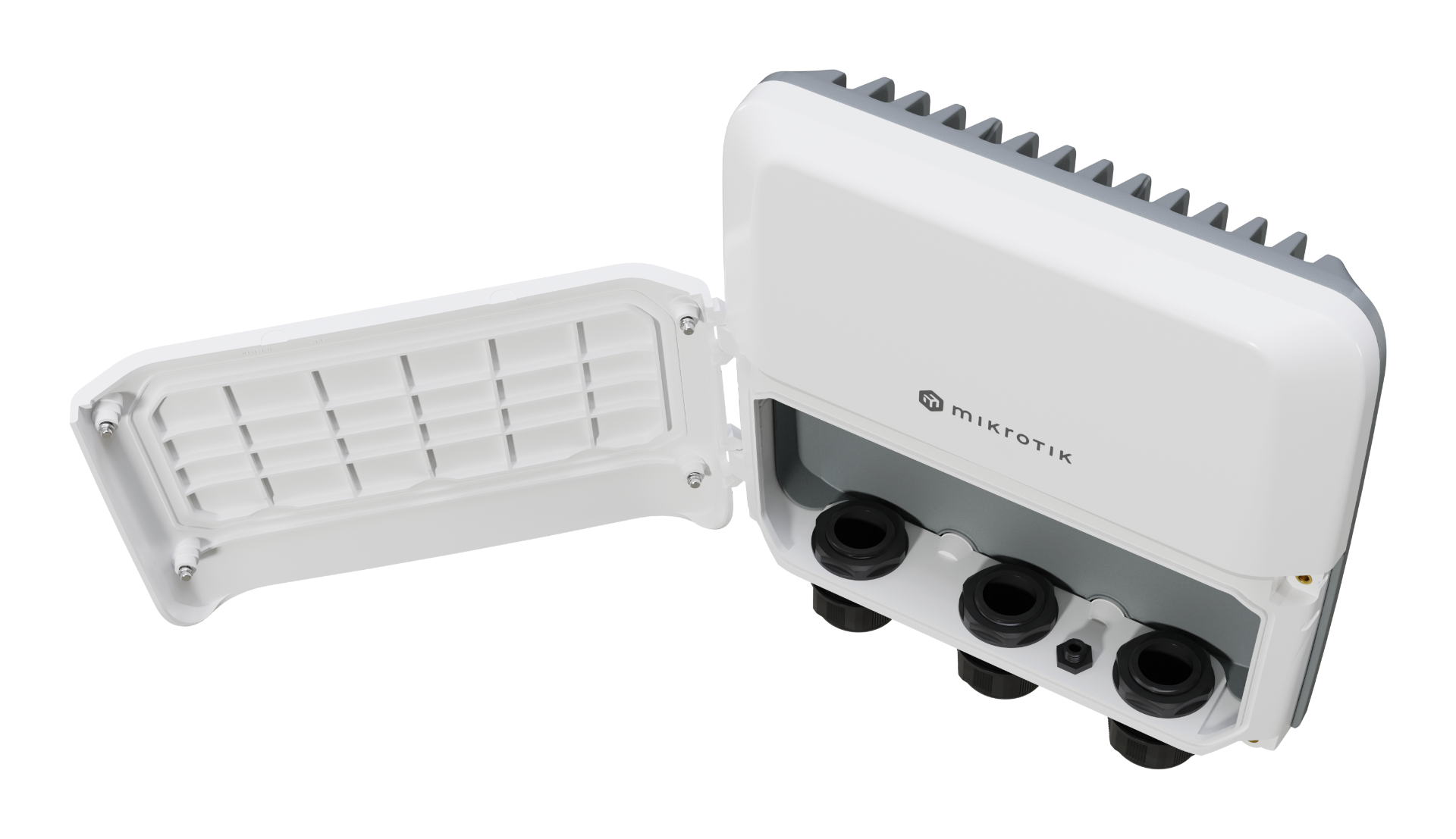

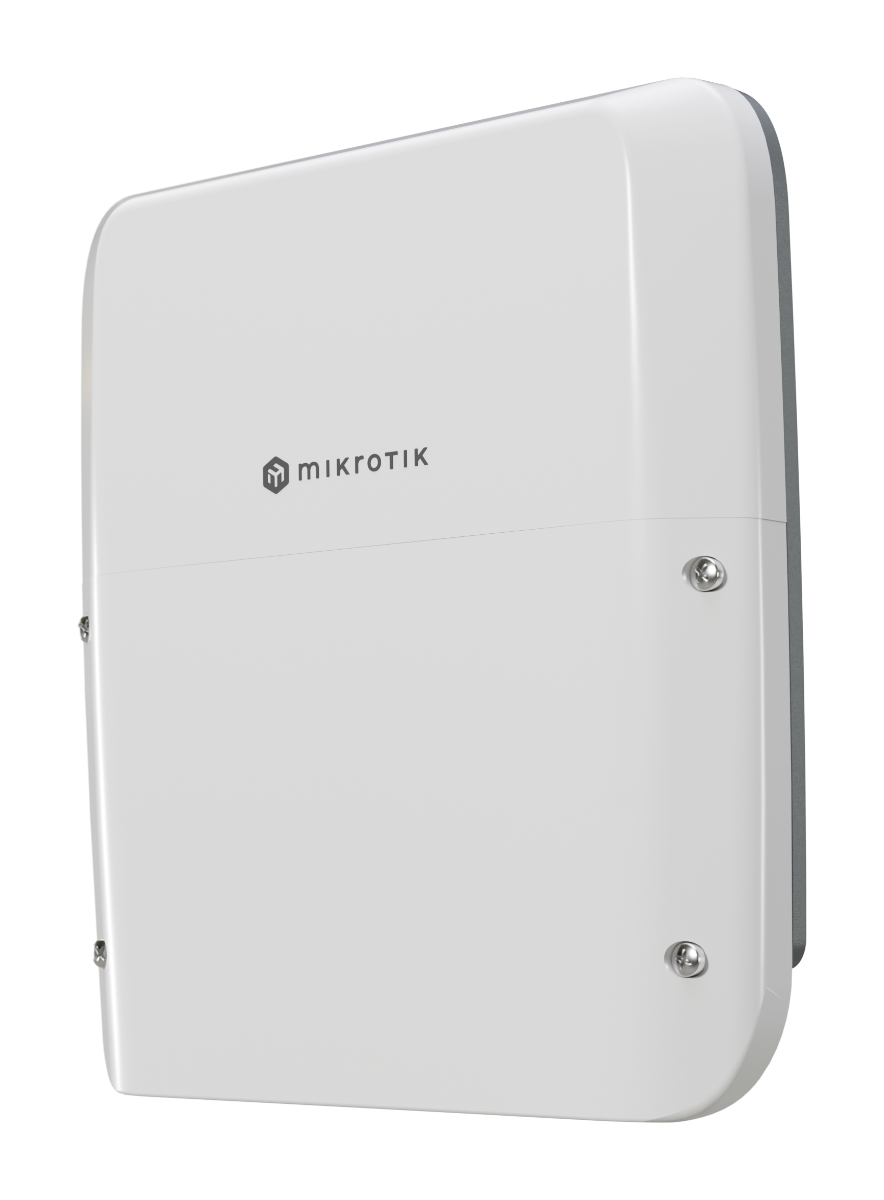

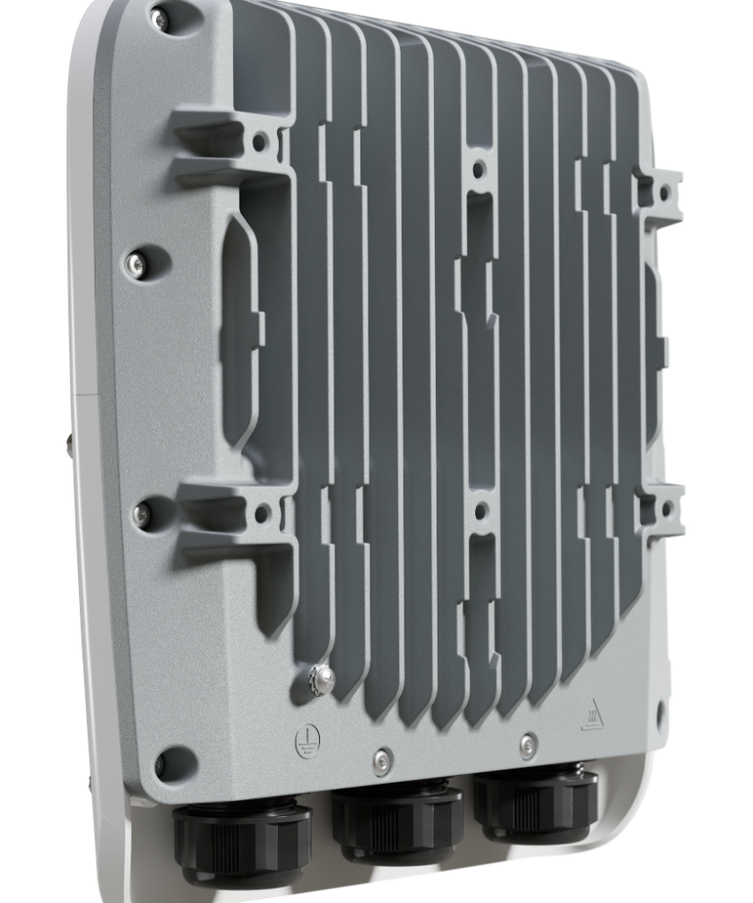

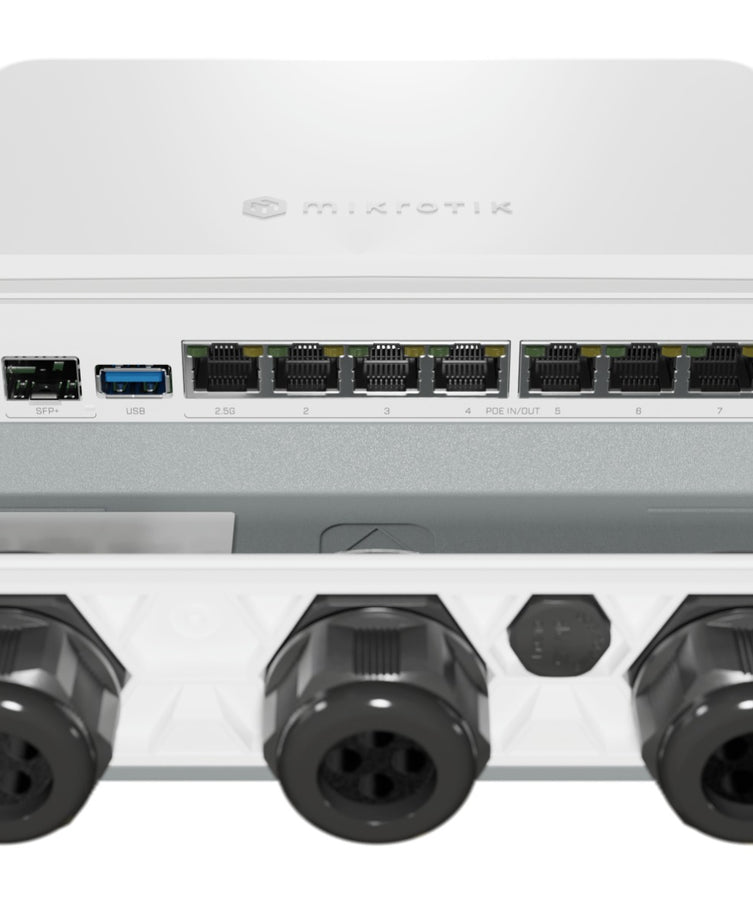

MikroTik RB5009 1x 10G SFP+ 1x 2.5GbE 7x 1GbE Quad Core PoE-in/Out Outdoor Router
MikroTik RB5009 1x 10G SFP+ 1x 2.5GbE 7x 1GbE Quad Core PoE-in/Out Outdoor Router
MikroTik RB5009 1x 10G SFP+ 1x 2.5GbE 7x 1GbE Quad Core PoE-in/Out Outdoor Router
MikroTik RB5009 1x 10G SFP+ 1x 2.5GbE 7x 1GbE Quad Core PoE-in/Out Outdoor Router
MikroTik RB5009 1x 10G SFP+ 1x 2.5GbE 7x 1GbE Quad Core PoE-in/Out Outdoor Router

Mikrotik

MikroTik RB5009 1x 10G SFP+ 1x 2.5GbE 7x 1GbE Quad Core PoE-in/Out Outdoor Router

MPN: RB5009UPr+S+OUT

SKU: MIK-RB5009UPR-S-OUT

$319


  • 7x Gigabit Ethernet ports, one 2.5 Gigabit Ethernet

  • 10G SFP+ cage

  • 24 – 57V

  • 802.3at/af compatible OR low-voltage PoE-out

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

The MikroTik RB5009UPr+S+OUT is an outdoor PoE Router with a Quad Core CPU and 1x 10G SFP+, 1x 2.5GbE, 7x 1GbE Ports and extensive power redundancy.

Adding an IP66-rated waterproof enclosure to the RB5009 series allowed MikroTik to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups. You’re getting one of the most powerful outdoor networking devices for the best price on the market with 7x Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet, 10G SFP+, 1GB of RAM, 1GB NAND, modern quad-core CPU, 9* powering options and a full sized USB3 port.

When MikroTik says “extensive power redundancy”, they really mean it: the unit offers 9 possible ways of powering: 2-pin DC, PoE-In/Out on all eight Ethernet ports. If you’re using PoE-in, the board will stay on even if 8 of your 9 power sources suddenly go down. All power options support a wide voltage range of 24-57v.

Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, you can specify maximum available power from your power sources manually, if necessary. If you’re using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.
Details
Product code RB5009UPr+S+OUT
Architecture ARM 64bit
CPU 88F7040
CPU core count 4
CPU nominal frequency 350-1400 (auto) MHz
Switch chip model 88E6393
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 1 GB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Details
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage 24-57 V
Max power consumption 150 W
Max power consumption without attachments 15 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V
Details
PoE-out ports Ether1-Ether8
PoE out 802.3af/at
Max out per port output (input 18-30 V) 900 mA
Max out per port output (input 30-57 V) 420 mA
Max total out (A) 2.59 A
Total output current 2.28
Total output power 130
Details
10/100/1000 Ethernet ports 7
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 2.5G Ethernet ports 1
Number of 2.5G Ethernet ports with PoE-out 1
Details
SFP+ ports 1
