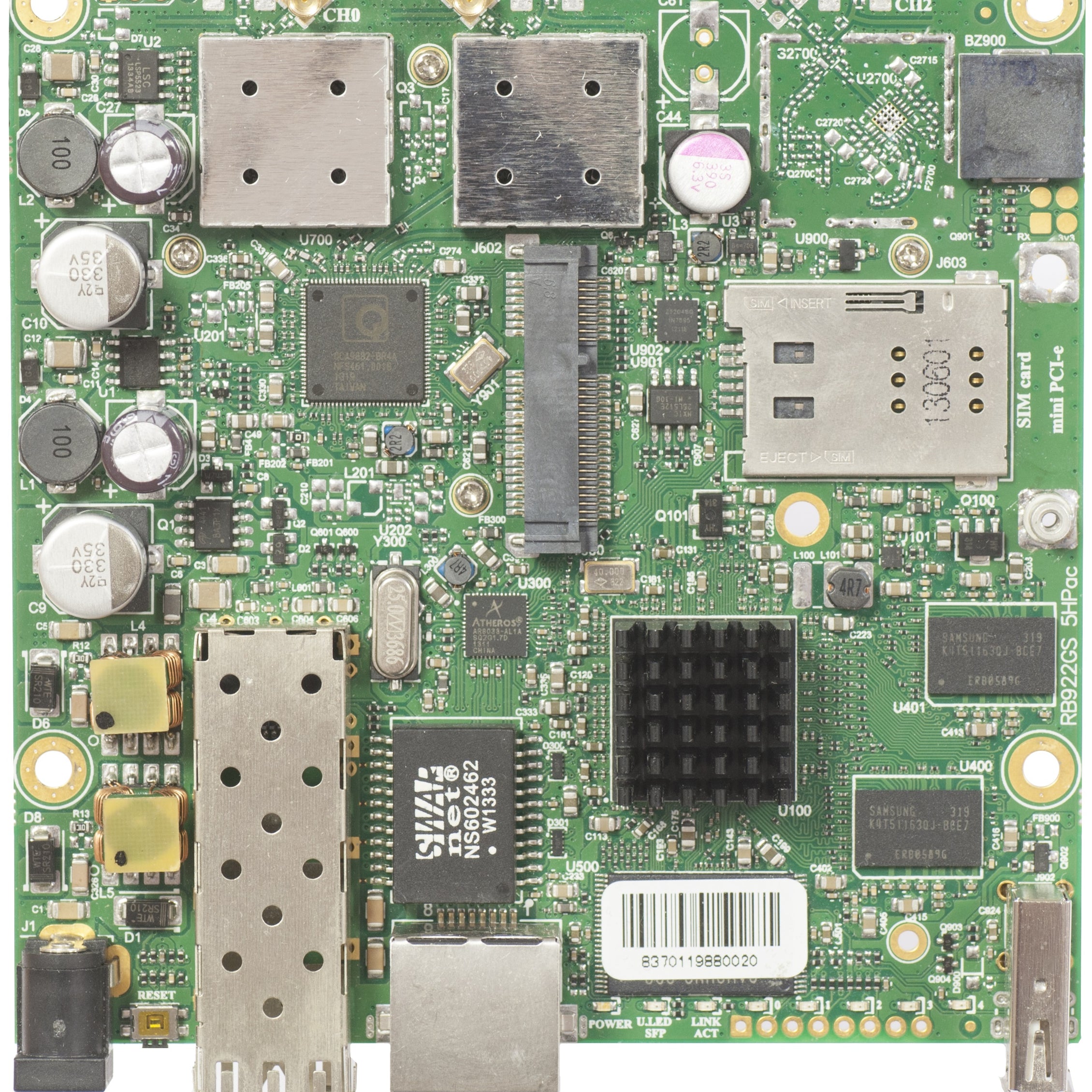

MikroTik RB922UAGS-5HPacD-US 5GHz 720MHz 128MB Gb SFP 11ac 2x2 L4 US

MPN: RB922UAGS-5HPacD-US

SKU: MIK-RB922UAGS5HPACDUS

$99
Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 1300mW 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.



RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.





Details
Product code RB922UAGS-5HPacD
CPU nominal frequency 720 MHz
SFP DDMI yes
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11a/n/ac
Number of USB ports 1
Power Jack 1
802.3af support no
Supported input voltage 8 V - 30 V
Tested ambient temperature -40°C .. +70°C tested
PoE out No
PoE in Yes
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 105x105mm
Operating System RouterOS
License level 4
Antenna gain DBI No
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 17 W
SFP ports 1
SFP+ ports None
USB slot type USB type A
Number of chains 2
Serial port None



Ethernet test results

RB922UAGS-5HPacD QCA9557 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 234.9 962.2 477.7 244.6
Bridging 25 bridge filter rules 81.2 986.1 118.4 485.0 119.5 61.2
Routing none (fast path) 81.2 986.1 234.9 962.2 408.2 209.0
Routing 25 simple queues 81.2 986.1 158.3 648.4 165.8 84.9
Routing 25 ip filter rules 64.8 786.9 70.4 288.4 60.9 31.2



    • All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)



    • Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes



    • Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out



    • Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
