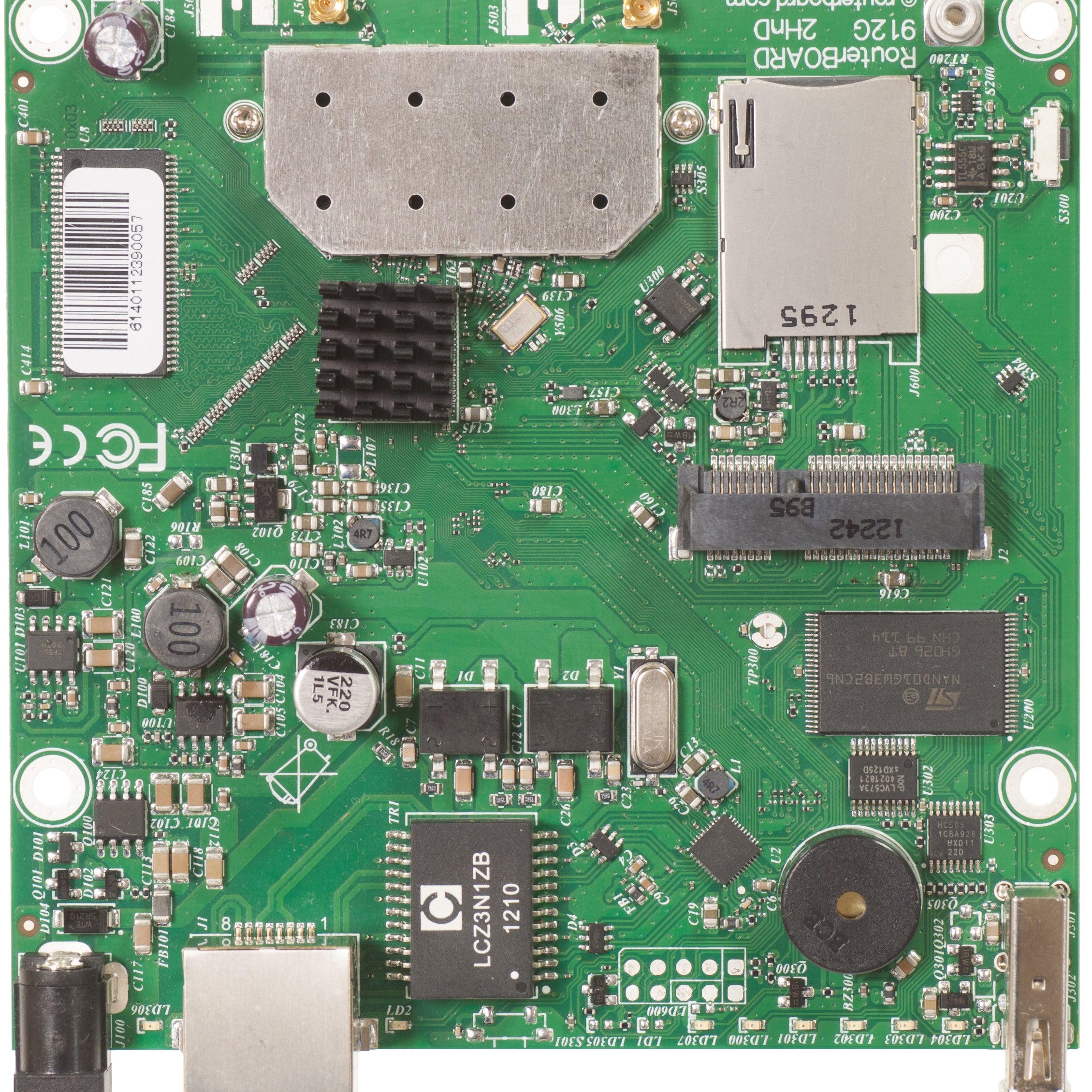

MikroTik RB912UAG-2HPnD 2.4GHz 600MHz 64MB mPCIe 802.11bgn L4

MPN: RB912UAG-2HPnD

SKU: MIK-RB912UAG-2HPND

$79
Availability Available 3 in stock.
Ask about this product
Delivery and Return
Description

The RB912UAG-2HPnD is a very versatile device. It is a small wireless router with an integrated 2.4GHz high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.



The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.




Product specifications
Product code RB912UAG-2HPnD
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
Architecture MIPS-BE
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model AR9342-BL1A
Wireless standards 802.11b/g/n
Number of USB ports 1
Power Jack 1
802.3af support No
PoE in Yes
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 105x105mm
Operating System RouterOS
Operating temperature range -30°C to +60°C
License level 4
Antenna gain DBI No
Current Monitor No
CPU AR9342-BL1A
SFP ports 0
SFP+ ports 0
USB slot type USB type A
Number of chains 2
Serial port None
Storage type NAND
Storage size 128 MB



Wireless specifications

2.4 GHz
  Transmit power (dBm) Receive Sensitivity Transmit power (mW)
1MBit/s 30 -100 1000
11MBit/s 30 -94 1000
6MBit/s 30 -96 1000
54MBit/s 27 -78 501
MCS0 30 -96 1000
MCS7 24 -73 251



wireless parameters may be limited in software, depending on your local regulatory limitations



Ethernet test results

RB912UAG-2HPnD AR9342 1G 1 port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.0 983.7 232.0 950.3 269.6 138.0
Bridging 25 bridge filter rules 81.0 983.7 86.0 352.3 87.6 44.9
Routing none (fast path) 81.0 983.7 210.0 860.2 226.9 116.2
Routing 25 simple queues 81.0 983.7 103.9 425.6 106.6 54.6
Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0



    • All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)



    • Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes



    • Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out



    • Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
