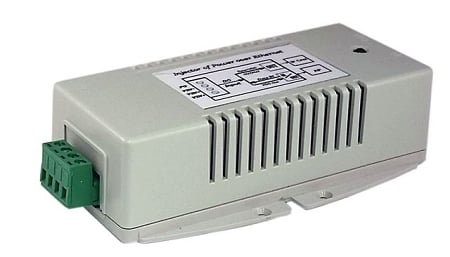

Tycon TP-DCDC-1248DX2-HP 10-15VDC IN, DUAL 56VDC 802.3AF/AT OUT 42W

The TP-DCDC-1248DX2-HP is a unique high power PoE injector with Dual 802.3af/at compatible outputs.
What this means is that two devices are able to be powered from a single PoE injector, and that the date path between the units is handled by the injector so no PoE switch is required.

Product Features
• Input Voltage 12VDC (Also available in 24VDC and 120VAC inputs)
• Dual 802.3af/at outputs
• High Power Output 42W Total
• Surge Protected to 15kV
• Dual DC Inpute for Connecting 2 Power Sources
• 10/100 Data Compatibility, Shielded Connectors
• Short Circuit, Over Current, and Reverse/Over Voltage Protection
• Industrial Temperature Range, DIN Rail Mountable

Product Specifications
• Input Voltage: +/- 10VDC to 16VDC
• Input Connector: Screw Type Compression Wire Terminal (12 AWG Max)
• POE Specification: Active PoE 802.3af/at (Mode B, 2 Pair)
• Data in & Data/POE Output Connector: RJ45 (Shielded
• Output Current (max): 0.38A X 2
• Output Power (total): 42 W
• Self-Consumption Power: 2W
• Efficiency (min): 80%
• Line Regulation, Ripple, Noise: 1%
• Load Regulation: 5%
• EMC Standards: FCC Class A, EN55022 Class A
• Safety Standards: UL1950, CSA 22.2 &TUV EN60950
• Operating Temperature: -40 to +70C (-40 to 158F)
• Operating Humidity (RH): 5% - 90%
• Storage Temperature: -40 to +80C (-40 to 176F)
• Dimensions: 125 x 75 x 38mm (4.9 x 3 x 1.5")
• Weight: 255g (9oz)
