Ubiquiti Networks EP-R8 EdgePoint Router 8 24/54V PoE

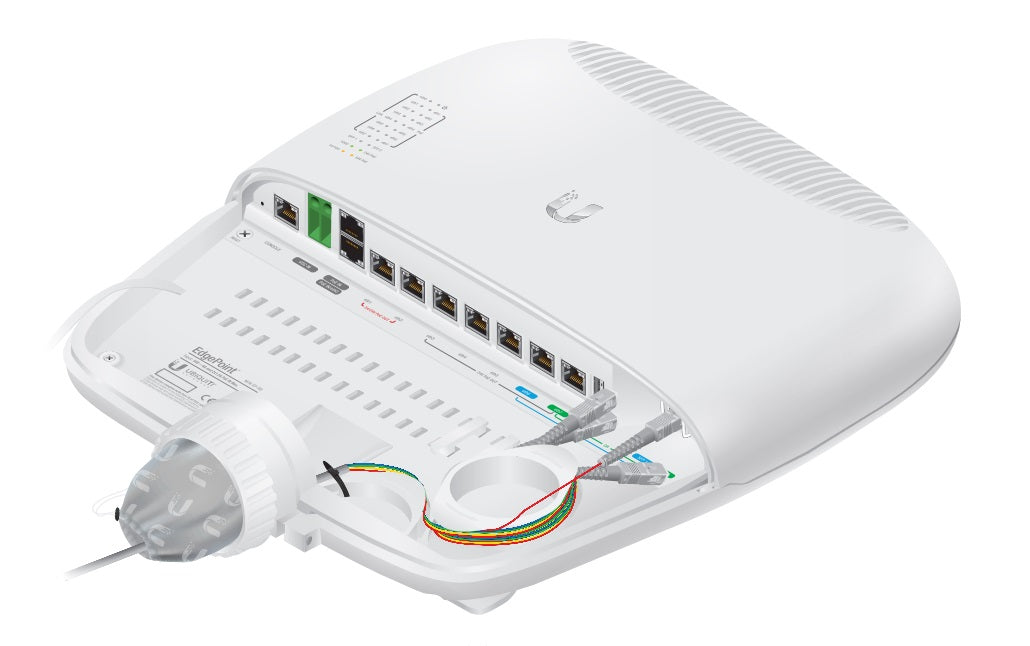

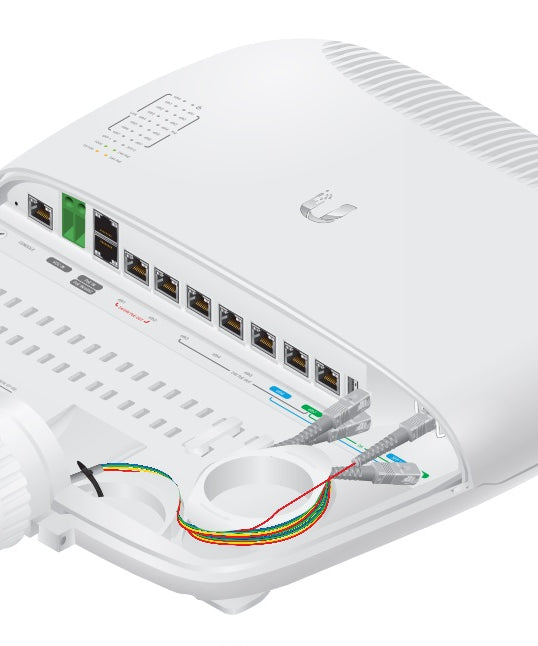

Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul

The EP-R8 features six RJ45 Ethernet ports and two combination RJ45/SFP Ethernet ports.

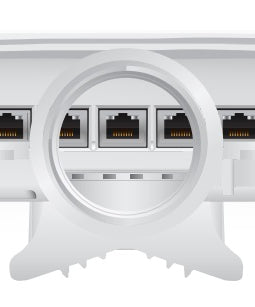

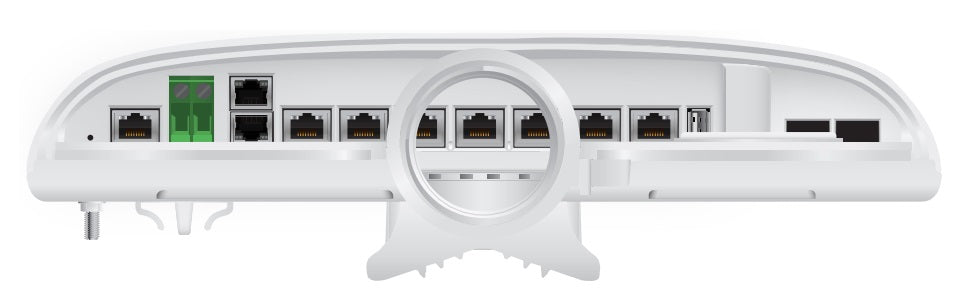

Bottom Panel

• Power Options
  • 54VDC, 6A Terminal Block
  • Dual PoE Input
• (1) Console Port
• Data Ports
  • (6) RJ45 Ports
  • (2) Combination RJ45/SFP Ports

Nine RJ45 ports support PoE:

• PoE Input
  • (1) 54V, 1.5A (No Data)
  • (1) 54V, 1.5A
• PoE Output
• (2) 54 or 24V, 1.4A Passive PoE Output Ports*
• (5) 24V, 0.7A Passive PoE Output Ports*

* Check product specifications to verify PoE compatibility.
