Mimosa

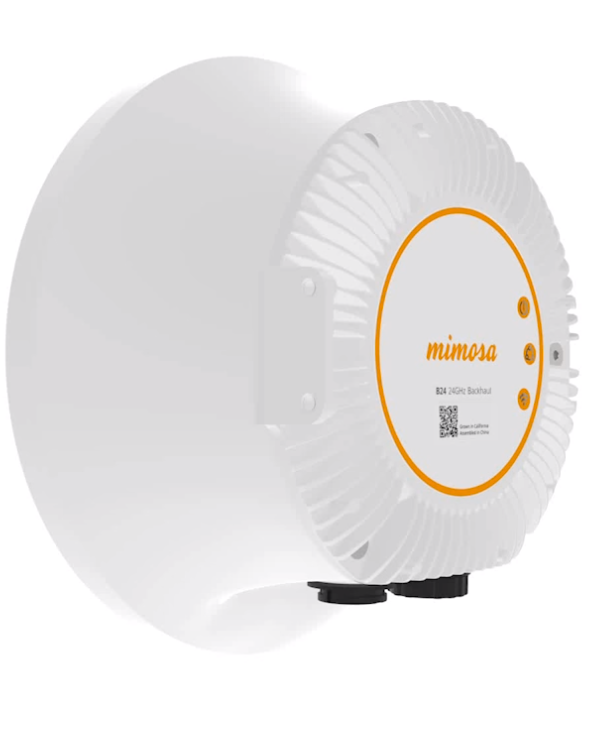

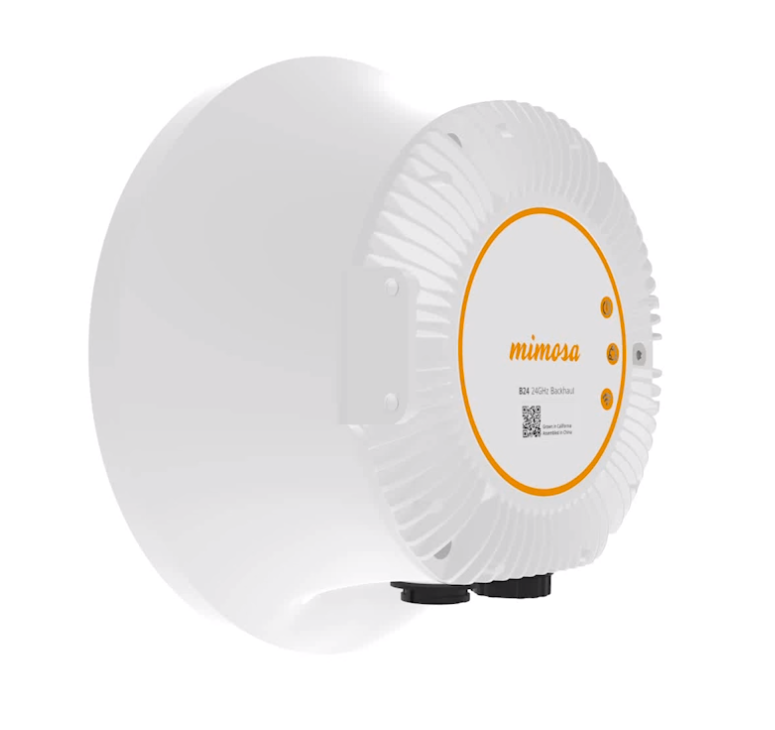

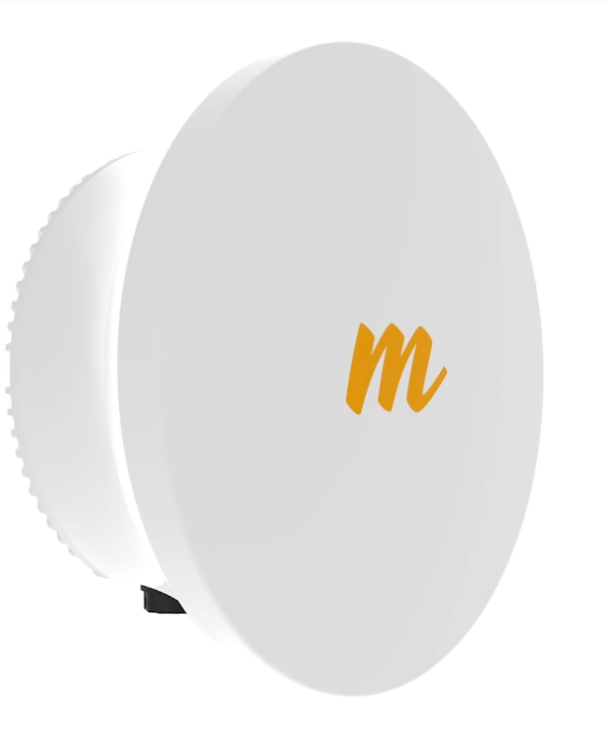

Mimosa B24 Backhaul 1.5Gbps 24GHz (Half Link)
MPN: 100-00074
SKU: MIMOSA-B24
$1,024
Share
| Performance | |
| Max Throughput: | Up to 1.5 Gbps IP aggregate UL/DL |
| Max PHY rate: | 1.7 Gbps PHY |
| Low Latency: | <1 ms |
| Supported MAC: | TDMA, TDMA-FD |
| Radio | |
| MIMO and Modulation: | 4x4:4 MIMO OFDM up to 256 QAM |
| Bandwidth: | Single or dual channel; 20/40/80 MHz channel width |
| Channel Spacing: | Single channel allows 5 MHz channel spacing; Dual channel allows separate, no-overlapping 5 MHz spacing increments |
| Frequency Range: | 24.00 - 24.25 GHz worldwide support; Operating range is 24.07 - 24.23 GHz |
| EIRP: | ~20 dBm (CE) ~33 dBm (FCC/IC) ~37 dBm (other regions) |
| Min Output Power: | -20 dBm |
| Power Increment Level: | 1 dB |
| Sensitivity (MCS0): | -84 dBm @ 80 MHz -87 dBm @ 40 MHz -90 dBm @ 20 MHz |
| Antenna | |
| Gain: | 33 dBi |
| Beamwidth (3dB): | 3.0º |
| Elevation Adjust: | +-2.5º azimuth mechanical adjust+-15º elevation mechanical adjust |
| Front to Back Ratio: | >30 dB |
| Cross-Polar Isolation: | >20 dB |
| Polarization: | Dual-linear (slant 45º) |
| Power | |
| Max Power Consumption: | 19.5 W |
| System Power Method: | 48V DC 802.3at compliant |
| System Lightning & ESD Protection: | 6 kV |
| PoE Power Supply: | Passive POE compliant, 50V 1.2A power over ethernet (included) |
| Physical | |
| Dimensions: | Height: 260 mm (10.24”) Width: 260 mm (10.24”) Depth: 134 mm (5.3”) without bracket; 252 mm (9.9”) with bracket |
| Weight: | 2.76 kg (6 lbs) including mount |
| Enclosure Characteristics: | Outdoor UV stabilized plastic; Powder-coated, aluminum mounting panel |
| Wind Survivability: | 200 km/h (125 mph) |
| Wind Loading: | 12.52 kg @ 160 km/h (27.61 lbs @ 100 mph) |
| Mounting: | Precision lightweight aiming pole mount with +-15º elevation and +-2.5º horizontal adjustment screws |
| Network Interfaces: | Gigabit ethernet (RJ45) and gigabit fiber (SFP cage); Operation modes: Hot standby |
| Environmental | |
| Outdoor Ingress Protection Rating: | IP67 |
| Operating Temperature: | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity: | 5 to 100% condensing |
| Operating Altitude: | 4,420 m (14,500’) max |
| Shock & Vibration: | ETS 300-019-2-4 class 4M5 |
| Regulatory and Compliance | |
| Approvals: | FCC 15.249 IC RSS210 ETSI EN 300-440 V2.1.1 CE |
| RoHS Compliance: | Yes; WEEE |
| Safety: | EC/EN/ 60950-1 |
| Features | |
| Gigabit Ethernet: | 10/100/1000-BASE-T |
| Fiber Capable: | Supports SFP interface for fiber operation |
| Ethernet Redundancy: | Dual Link failover; Does not support simultaneous ethernet + fiber operation |
| Dual Protocol Operation: | 2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services: | Mimosa cloud monitoring and management SNMPv2 & Syslog monitoring HTTPS HTML5 based web UI 2.4 GHz 802.11b/g/n radio for local management access |
| Smart Antenna Alignment: | Hands-free, dedicated 2.4 GHz WiFi management radio |
| Smart Spectrum Management: | Active scan monitors/logs ongoing RF interference across channels with no service impact; Dynamic auto-optimization of bandwidth, power, and modulation |
| Security: | 128-bit AES PSK with hardware acceleration |
| QoS: | Supports 4 pre-configured QoS levels |
| GPS Location: | GNSS-1 (GPS + GLONASS) |
| Collocation Synchronization: | 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio |
