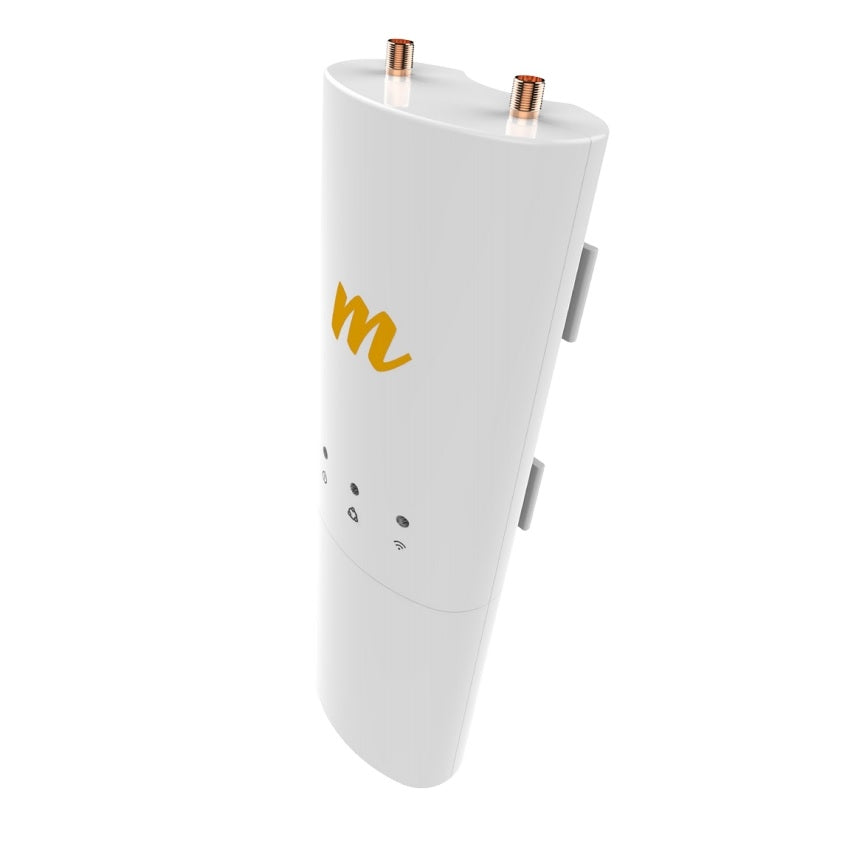

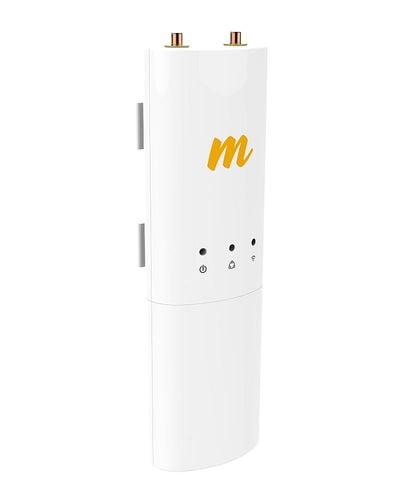

Mimosa C5c Connectorized Client Device 5GHz RPSMA Connectors

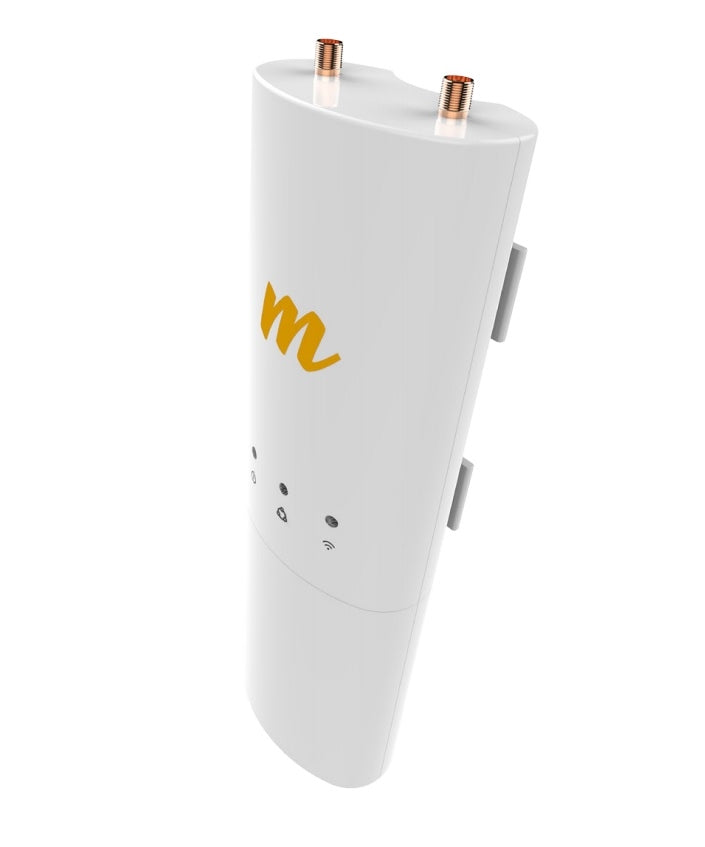

Mimosa C5c/G2 Connectorized Client Device 5GHz 500+ Mbps (866 Mbps PHY) MiMO 2x2:2 w/ PoE + RPSMA Connectors
Mimosa C5c/G2 Connectorized Client Device 5GHz 500+ Mbps (866 Mbps PHY) MiMO 2x2:2 w/ PoE + RPSMA Connectors

Mimosa

Mimosa C5c Connectorized Client Device 5GHz RPSMA Connectors

MPN: 100-00018

SKU: MIMOSA-C5C

$192


  • Max Throughput: PTP/PTMP: 700 Mbps IP (866 Mbps PHY)

  • Wireless Protocols: WiFi Interop, Mimosa SRS

  • Modes: PTMP Client, PTP Backhaul

Availability Available 1 in stock.
Ask about this product
Delivery and Return
Description

The Mimosa C5c is a high gain, high throughput client device that can be dropped into any Wi-Fi-compatible network. The C5 is available in two options, antenna-integrated or connectorized for longer distance applications. Designed for NLOS applications, it easily attaches to any standard J-mount for typical eave or rooftop mounting. The C5 can also use Mimosa’s customized J-mount accessory for finer adjustment capabilities.



Features:

  • Incredibly high gain. With 20dBi, the client can reach access points up to 10+ km away. With an aperture efficiency above 50%, the device is still extremely compact.
  • Spectrum Analyzing with the Mimosa Cloud, utilizing reports to optimize channel usage and performance.
  • Maximum throughput with Gigabit Ethernet port for up to 500+ Mbps.
  • Super compatible with 802.11n compatibility
  • Mimosa Flexible TDMA
Performance
Max Throughput PTP/PTMP: 700 Mbps IP (866 Mbps PHY)
Wireless Protocols WiFi Interop
Mimosa SRS
Modes PTMP Client
PTP Backhaul
Radio
MIMO & Modulation 2x2:2 MIMO OFDM up to 256 QAM
Bandwidth* 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS;
Tunable to standard WiFi channels for WiFi Interop
Frequency Range PTMP: 4900-6400 MHz***
PTP: 4900-6400 MHz
Restricted by country of operation
*new* US/FCC 5600-5650 MHz support
FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
Max Output Power 27 dBm
Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
Max Power Consumption 9.2 W
System Power Method Passive PoE (24-56 VDC)
PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply (Included)
Physical
Dimensions Depth 44 mm (1.73")
Width 65 mm (2.56")
Height 188.4 mm (7.42")
Weight 295 grams (10.4 oz)
Mounting Single pole strap
Connector Type RP-SMA (x2)
