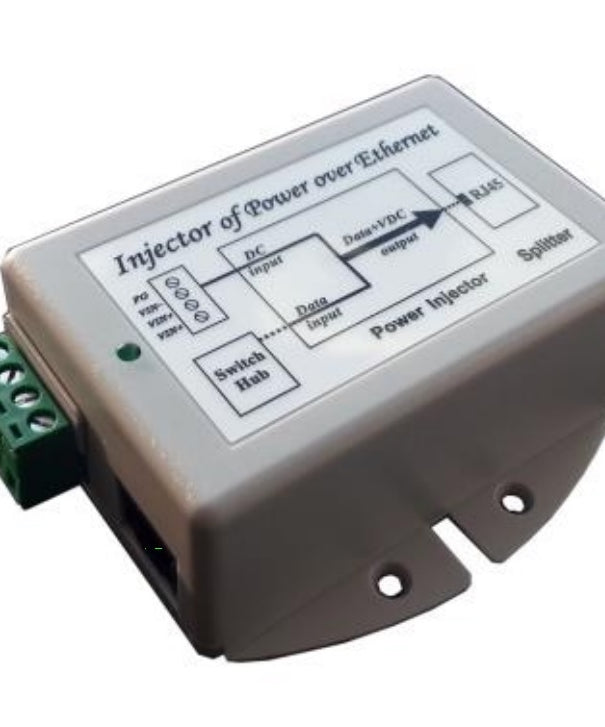

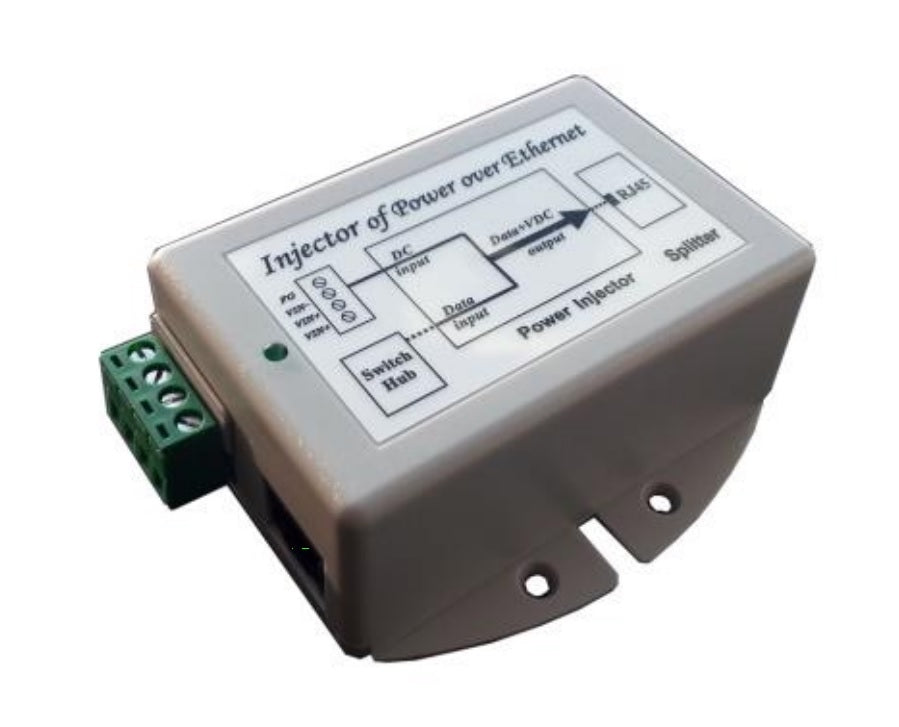

TYCON TP-DCDC-1248D 9-36VDC IN 48VDC OUT 17W DC to DC Converter

<p>TYCON POWER SYSTEMS TP-DCDC-1248D 9-36VDC IN 48VDC OUT 17W DC to DC Converter and IEEE802.3af POE inserter</p> <p>&nbsp;</p> <p class="style6">802.3af Compatible. Will only power up when connected to an 802.3af device.</p> <p>&nbsp;</p> <p class="style6">The TP-DCDC-1248D DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 48VDC 802.3af Power Over Ethernet voltage from a 12 or 24V battery system.&nbsp;They have various protections for surge, short circuit and overload. The units have power output of 17W.</p> <p>&nbsp;</p> <p class="style6"><strong>TP-DCDC-12xx </strong>DC to DC converters take an input of 9-36VDC and convert to 18V, 24V or 48V DC regulated output. They include an integrated POE inserter to apply the DC voltage to the CAT5 cable on Pins 4,5 (V+) and Pins 7,8 (V-). They are perfect for running POE powered equipment from a 12V or 24V battery system. They have 2 isolated inputs to handle two power sources like a primary and backup source for uninterrupted failsafe operation.</p> <p>&nbsp;</p> <p class="style6"><strong>TP-DCDC-1248-M </strong>is a non-compliant version packaged in a metal enclosure for industrial applications.<strong><br><br>TP-DCDC-1248D</strong> is an IEEE 802.3af compliant model which is designed to power a device which meets the 802.3af standard for POE</p> <p>&nbsp;</p> <p class="style6">Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4in)<br>Weight: 134g (4.7oz)</p> <p>&nbsp;</p> <p><strong>Features</strong></p> <p>&nbsp;</p> <ul> <li>Input Voltage 9-36VDC; Output 18V, 24V or 48VDC</li> <li>IEEE 802.3af compliant model and non-compliant models</li> <li>Dual Inputs for connecting 2 power sources</li> <li>Integrated 10/100MB POE Inserter</li> <li>High Power up to 24W</li> <li>Short Circuit, Over Current and Reverse/Over Voltage Protection</li> <li>High Temperature Operation</li> <li>Compact size – Maximize Available Space</li> </ul> <p><br><br></p> <p><strong>Applications</strong></p> <ul> <li>12V / 24V Battery Systems</li> <li>Wireless Access Points and Client Devices</li> <li>IP Phone and Security Camera Systems</li> </ul> <p>&nbsp;</p>
