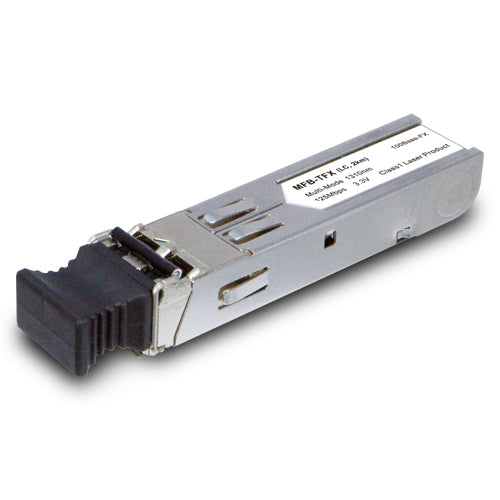

Planet MFB-TFX Multimode 100Mbps SFP fiber transceiver – 2KM

MPN: MFB-TFX

SKU: PLA-MFB-TFX

$29.20


  • Package: SFP

  • PHY Type: 100Base-FX

  • Fiber Type: Multimode

  • Connector: LC

  • Wavelength: 1310nm

  • Max. Distance: 2km

  • Operating Temperature: -40 to 75°C

Availability Usually Ships 10-14 Business Days
Ask about this product
Delivery and Return
Description

The MFB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MFB SFP transceivers using a long wavelength (1310nm) FP LD enable data transmission up to 2km on a multimode optical fiber and up to 60km on a single mode optical fiber.

To meet the increasing demand of Industrial Ethernet fiber solution, Planet has released the MFB-T 100Base-FX transceiver series that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MFB-T 100Base-FX transceiver series provides easy and fast 100Base-FX connection for Planet wide temperature industrial equipment.



Ordering Information

MFB-FX

 SFP-Port 100BASE-FX Transceiver (1310nm) -2km

MFB-F20

 SFP-Port 100BASE-FX Transceiver (1310nm) - 20km

MFB-FA20

 SFP-Port 100BASE-BX Transceiver (WDM,TX:1310nm) -20km

MFB-FB20

 SFP-Port 100BASE-BX Transceiver (WDM,TX:1550nm) -20km

MFB-F40

 SFP-Port 100BASE-FX Transceiver (1310nm) - 40KM
MFB-F60 SFP-Port 100BASE-FX Transceiver (1310nm) - 60KM

MFB-TFX

 SFP-Port 100BASE-FX Transceiver (1310nm) -2km (-40~75 degrees C)

MFB-TF20

 SFP-Port 100BASE-FX Transceiver (1310nm) - 20km (-40~75 degrees C)

MFB-TFA20

 SFP-Port 100BASE-BX (WDM, TX:1310nm) mini-GBIC module-20km (-40~75 degrees C)

MFB-TFB20

 SFP-Port 100BASE-BX (WDM, TX:1550nm) mini-GBIC module-20km (-40~75 degrees C)

MFB-TFA40

 SFP-Port 100BASE-BX (WDM, TX:1310nm) mini-GBIC module-40km (-40~75 degrees C)

MFB-TFB40

 SFP-Port 100BASE-BX (WDM, TX:1550nm) mini-GBIC module-40km (-40~75 degrees C)

MFB-TSA

 SFP-Port 100BASE-BX Transceiver (Multi-mode/WDM,TX:1310nm RX:1550nm / DDM) - 2km (-40~75 degrees C)

MFB-TSB

 SFP-Port 100BASE-BX Transceiver (Multi-mode/WDM,TX:1550nm RX:1310nm / DDM) - 2km (-40~75 degrees C)
MGB-GT
PHY Type IEEE 802.3ab 1000BASE-T
Connector RJ45 Copper
Maximum Distance 100m
Operating Temperature 0~60 degrees C
MGB-SX
PHY Type IEEE 802.3z 1000BASE-SX
Fiber Type Multi-Mode
Connector Dual LC/UPC
DDM YES
Wavelength 850nm
Maximum Distance 550m
Operating Temperature 0~60 degrees C
MGB-SX2
PHY Type IEEE 802.3z 1000BASE-SX
Fiber Type Multi-Mode
Connector Dual LC/UPC
DDM YES
Wavelength 1310nm
Maximum Distance 2km
Operating Temperature 0~60 degrees C
MGB-LX
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single-Mode
Connector Dual LC/UPC
DDM YES
Wavelength 1310nm
Maximum Distance 20km
Operating Temperature 0~60 degrees C
MGB-L40
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single-Mode
Connector Dual LC/UPC
DDM YES
Wavelength 1310nm
Maximum Distance 40km
Operating Temperature 0~60 degrees C
MGB-L80
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single-mode
Connector Dual LC/UPC
DDM Yes
Wavelength 1550nm
Maximum Distance 80km
Operating Temperature 0~60 degrees C
MGB-L120
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single-mode
Connector Dual LC/UPC
DDM Yes
Wavelength 1550nm
Maximum Distance 120km
Operating Temperature 0~60 degrees C
MGB-TSX
PHY Type IEEE 802.3z 1000BASE-SX
Fiber Type Multi-Mode
Connector Dual LC/UPC
DDM YES
Wavelength 850nm
Maximum Distance 550m
Operating Temperature -40~75 degrees C
MGB-TGT
PHY Type IEEE 802.3ab 1000BASE-T
Fiber Type N/A
Connector RJ45 Copper
DDM N/A
Wavelength N/A
Maximum Distance 100m
Operating Temperature -40~75 degrees C
MGB-TSX2
PHY Type IEEE 802.3z 1000BASE-SX
Fiber Type Multi-mode
Connector Dual LC/UPC
DDM Yes
Wavelength 1310nm
Maximum Distance 2km
Operating Temperature -40~75 degrees C
MGB-TLX
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single-Mode
Connector Dual LC/UPC
DDM YES
Wavelength 1310nm
Maximum Distance 20km
Operating Temperature -40~75 degrees C
MGB-TL40
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single-mode
Connector Dual LC/UPC
DDM YES
Wavelength 1310nm
Maximum Distance 40km
Operating Temperature -40~75 degrees C
MGB-TL80
PHY Type IEEE 802.3z 1000BASE-LX
Fiber Type Single-mode
Connector Dual LC/UPC
DDM Yes
Wavelength 1550nm
Maximum Distance 80km
Operating Temperature -40~75 degrees C
MGB-LA10 and MGB-LB10
PHY Type IEEE 802.3z 1000BASE-BX
Fiber Type Single-mode
Connector Simplex LC/UPC
DDM Yes
Wavelength MGB-LA10: TX1310nm, RX1550nm
MGB-LB10: TX1550nm, RX1310nm
Maximum Distance 10km
Operating Temperature 0~60 degrees C
MGB-LA20 and MGB-LB20
PHY Type IEEE 802.3z 1000BASE-BX
Fiber Type Single-mode
Connector Simplex LC/UPC
DDM Yes
Wavelength MGB-LA20: TX1310nm, RX1550nm
MGB-LB20: TX1550nm, RX1310nm
Maximum Distance 20km
Operating Temperature 0~60 degrees C
MGB-LA40 and MGB-LB40
PHY Type IEEE 802.3z 1000BASE-BX
Fiber Type Single-mode
Connector Simplex LC/UPC
DDM Yes
Wavelength MGB-LA40: TX1310nm, RX1550nm
MGB-LB40: TX1550nm, RX1310nm
Maximum Distance 40km
Operating Temperature 0~60 degrees C
MGB-LA80 and MGB-LB80
PHY Type IEEE 802.3z 1000BASE-BX
Fiber Type Single-mode
Connector Simplex LC/UPC
DDM Yes
Wavelength MGB-LA80: TX1490nm, RX1550nm
MGB-LB80: TX1550nm, RX1490nm
Maximum Distance 80km
Operating Temperature 0~60 degrees C
MGB-TSA and MGB-TSB
PHY Type IEEE 802.3z 1000BASE-BX
Fiber Type Multi-mode
Connector Simplex LC/UPC
DDM Yes
Wavelength MGB-TSA: TX1310nm, RX1550nm
MGB-TSB: TX1550nm, RX1310nm
Maximum Distance 2km
Operating Temperature -40~75 degrees C
MGB-TLA10 and MGB-TLB10
PHY Type IEEE 802.3z 1000BASE-BX
Fiber Type Single-mode
Connector Simplex LC/UPC
DDM YES
Wavelength MGB-TLA10: TX1310nm, RX1550nm
MGB-TLB10: TX1550nm, RX1310nm
Maximum Distance 10km
Operating Temperature -40~75 degrees C
MGB-TLA20 and MGB-TLB20
PHY Type IEEE 802.3z 1000BASE-BX
Fiber Type Single-mode
Connector Simplex LC/UPC
DDM YES
Wavelength MGB-TLA20: TX1310nm, RX1550nm
MGB-TLB20: TX1550nm, RX1310nm
Maximum Distance 20km
Operating Temperature -40~75 degrees C
MGB-TLA40 and MGB-TLB40
PHY Type IEEE 802.3z 1000BASE-BX
Fiber Type Single-mode
Connector Simplex LC/UPC
DDM YES
Wavelength MGB-TLA40: TX1310nm, RX1550nm
MGB-TLB40: TX1550nm, RX1310nm
Maximum Distance 40km
Operating Temperature -40~75 degrees C
MGB-TLA80 and MGB-TLB80
PHY Type IEEE 802.3z 1000BASE-BX
Fiber Type Single-mode
Connector Simplex LC/UPC
DDM YES
Wavelength MGB-TLA80: TX1490nm, RX1550nm
MGB-TLB80: TX1550nm, RX1490nm
Maximum Distance 80km
Operating Temperature -40~75 degrees C
MGB-TLA120 and MGB-TLB120
PHY Type IEEE 802.3z 1000BASE-EZX
Fiber Type Single-mode
Connector Simplex LC/UPC
DDM Yes
Wavelength MGB-TLA120:　TX1490nm, RX1550nm
MGB-TLB120:　TX1550nm, RX1490nm
Maximum Distance 120km
Operating Temperature -40~75 degrees C
