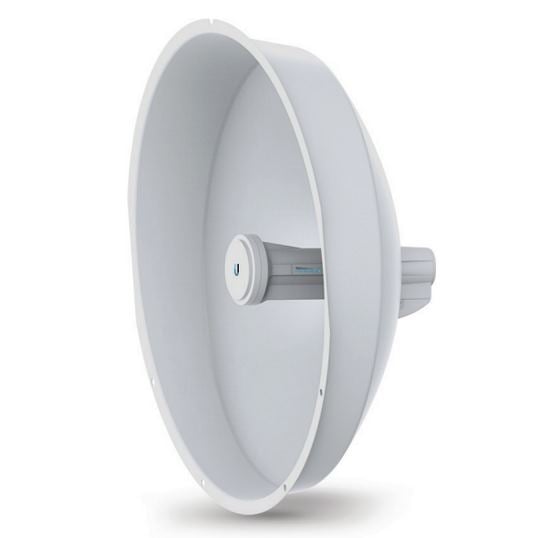

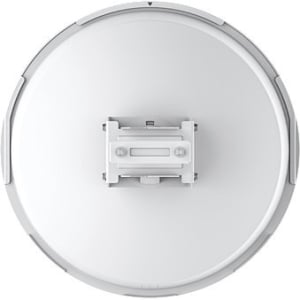

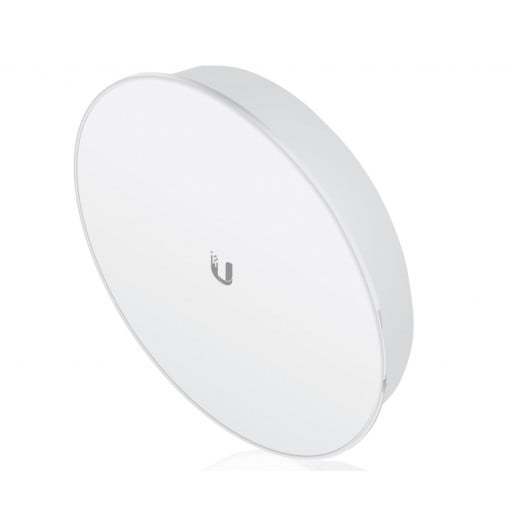

Ubiquiti Networks PowerBeam M5 ISO 5 GHz airMAX Bridge with RF Isolated Reflector
Ubiquiti Networks PowerBeam M5 ISO 5 GHz airMAX Bridge with RF Isolated Reflector
Ubiquiti Networks PowerBeam M5 ISO 5 GHz airMAX Bridge with RF Isolated Reflector

Ubiquiti Networks

Ubiquiti Networks PowerBeam M5 ISO 5 GHz airMAX Bridge with RF Isolated Reflector

MPN: PBE-M5-400-ISO-US

SKU: UBI-PBE-M5-400ISO-US

$89
$110
Availability Out of Stock – Available to Backorder
Ask about this product
Delivery and Return
Description

Ubiquiti Networks PBE-M5-400-ISO-US PowerBeam M5 ISO 5 GHz airMAX Bridge with RF Isolated Reflector



Ubiquiti Networks launches the PowerBeam™ ISO, an airMAX Bridge that is ideal for deployments requiring maximum performance and RF isolation.



Innovative Mechanical Design

The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.



Superior RF Isolation

Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.



Advanced Software Technology

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

  • 5 GHz
  • 25 dBi
  • 400 mm



Ubiquiti Networks PowerBeam M5 ISO Specs

Processor Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2, 8 MB flash
Networking Interface 1 x 10/100 Ethernet port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Power Supply 24 V, 0.5 A PoE
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Voltage Range 18-26 VDC
Power Consumption 8 W (max.)
Gain 25 dBi
Operating Frequency Worldwide: 5170 - 5875 MHz
USA: 5725 - 5850 MHz
Wind Loading 88 lbf @ 125 mph (390 N @ 200 km/h)
Wind Survivability 125 mph (200 km/h)
LEDs 1 x Power
1 x LAN
4 x WLAN
Signal Strength LEDs Software-adjustable to correspond to custom RSSI levels
Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV stabilized plastic
Mounting Pole-mounted kit included
ESD/EMP Protection Air: ± 24 kV
Contact: ± 24 kV
Temperature & Humidity Operating Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 5 to 95% non-condensing
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 104° F (40° C), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Output Power Output Power
24 dBm
TX Power Specifications
802.11a
Data Rate / Avg. TX / Tolerance
6 - 24 Mbps / 24 dBm / ± 2 dB
36 Mbps / 24 dBm / ± 2 dB
48 Mbps / 23 dBm / ± 2 dB
54 Mbps / 22 dBm / ± 2 dB
802.11n/airMAX
Data Rate / Avg. TX / Tolerance
MCS0 / 24 dBm / ± 2 dB
MCS1 / 24 dBm / ± 2 dB
MCS2 / 23 dBm / ± 2 dB
MCS3 / 23 dBm / ± 2 dB
MCS4 / 22 dBm / ± 2 dB
MCS5 / 21 dBm / ± 2 dB
MCS6 / 20 dBm / ± 2 dB
MCS7 / 20 dBm / ± 2 dB
MCS8 / 24 dBm / ± 2 dB
MCS9 / 24 dBm / ± 2 dB
MCS10 / 23 dBm / ± 2 dB
MCS11 / 23 dBm / ± 2 dB
MCS12 / 22 dBm / ± 2 dB
MCS13 / 21 dBm / ± 2 dB
MCS14 / 20 dBm / ± 2 dB
MCS15 / 20 dBm / ± 2 dB

RX Power Specifications
802.11a
Data Rate / Sensitivity / Tolerance
6 - 24 Mbps / -94 dBm Min. / ± 2 dB
36 Mbps / -80 dBm / ± 2 dB
48 Mbps / -77 dBm / ± 2 dB
54 Mbps / -75 dBm / ± 2 dB
802.11n/airMAX
Data Rate / Sensitivity / Tolerance
MCS0 / -96 dBm / ± 2 dB
MCS1 / -95 dBm / ± 2 dB
MCS2 / -92 dBm / ± 2 dB
MCS3 / -90 dBm / ± 2 dB
MCS4 / -86 dBm / ± 2 dB
MCS5 / -83 dBm / ± 2 dB
MCS6 / -77 dBm / ± 2 dB
MCS7 / -74 dBm / ± 2 dB
MCS8 / -96 dBm / ± 2 dB
MCS9 / -95 dBm / ± 2 dB
MCS10 / -92 dBm / ± 2 dB
MCS11 / -90 dBm / ± 2 dB
MCS12 / -86 dBm / ± 2 dB
MCS13 / -83 dBm / ± 2 dB
MCS14 / -77 dBm / ± 2 dB
MCS15 / -74 dBm / ± 2 dB
Max VSWR 1.5:1
Built-In Mechanical Downtilt ±20°
Dimensions 18.07 x 18.07 x 10.28" / 459 x 459 x 261 mm
Weight 7.10 lb / 3.22 kg
Packaging Info
Package Weight 50.65 lb
Box Dimensions (LxWxH) 20.5 x 20.4 x 16.2"
