Ubiquiti Networks

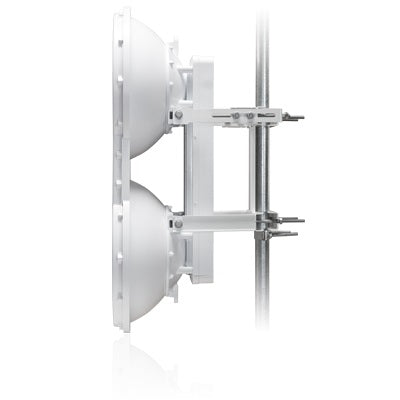

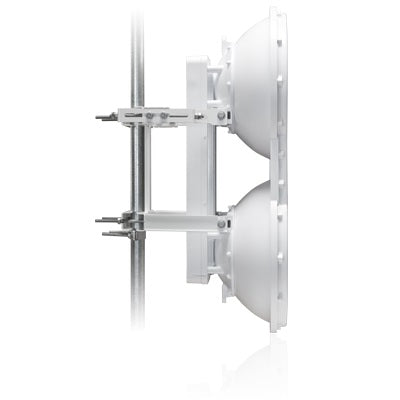

Ubiquiti AF-5 5GHz Full Duplex Point-to-Point Gigabit Radio - US Version
MPN: AF-5-US
SKU: UBI-AF-5-US
$999
Share
Revolutionary PerformanceSurpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.0+ Gbps.  |
Long-Range Links: 50+ kmDesigned to be a high-performance backhaul, the airFiber®5 performs at a range of up to 50+ km.  |
Low-Latency Carrier BackhaulThe airFiber®5 supports FDD (Frequency Division Duplexing) in full-duplex mode for <1 ms latency, resulting in increased efficiency for carrier-class network backhauls.  |
5 GHz Unlicensed BandThe airFiber®5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy airFiber5 almost anywhere they choose (subject to local country regulations).  |
** PRICE IS PER END, MUST ORDER QTY 2 FOR COMPLETE LINK **
Ubiquiti Networks AF-5U Specs
General Specifications
| LEDs | 12 x Status LEDs: Data Port Link/Activity, Data Port Speed, Management Port, Link/Activity, Management Port Speed, GPS Synchronization, Master/Slave, Link Status, Modulation Mode 0.25x to 4x, 6x, 8x, Overload, Remote and Local Displays (Calibrated Signal Strength) |
| Maximum Power Consumption | 40 W |
| Power Supply | 50 V, 1.2 A PoE Gigabit Ethernet adapter (included) |
| Power Method | Passive Power over Ethernet (42 to 58 VDC) |
| Wind Loading | 863 N at 200 km/hr (194 lbf at 125 mph (200 km/hour)) |
| Wind Survivability | 125 mph (200 km/hour (125 mph) |
| Mounting | Pole mount kit (included) |
| Operating Frequency | 5725 - 5850 MHz 5725 - 5875 MHz 5725 - 6200 MHz |
Interface
| Data Port | 1 x 10/100/1000 Ethernet port |
| Configuration Port | 1 x 10/100 Ethernet port |
| Auxiliary Port | 1 x RJ-12, Alignment Tone port |
System Specifications
| Maximum Throughput | 1.0+ Gb/s |
| Maximum Range | 62+ miles (100+ km) |
| Packets per Second | >1 million |
| Encryption | 128-bit AES |
| Forward Error Correction | 164/205 |
| Cyclic Prefix | 1/16 fixed |
| Uplink/Downlink Ratio | 50% fixed |
| Frame Synchronization | GPS |
| Frequency Selection | Dynamic: CE, CE, (FCC/IC Not Applicable) |
Sensitivity Specifications
| Receive Sensitivity | 256QAM at 8x Spatial Stream, 1024 Mb/s FDD, 512 Mb/s TDD At 10 MHz: -70 dBm At 20 MHz: -67 dBm At 40 MHz: -65 dBm At 50 MHz: -64 dBm 64QAM at 6x Spatial Stream, 768 Mb/s FDD, 384 Mb/s TDD At 10 MHz: -77 dBm At 20 MHz: -74 dBm At 40 MHz: -72 dBm At 50 MHz: -71 dBm 16QAM MIMO at 4x Spatial Stream, 512 Mb/s FDD, 256 Mb/s TDD At 10 MHz: -84 dBm At 20 MHz: -81 dBm At 40 MHz: -79 dBm At 50 MHz: -78 dBm QPSK MIMO at 2x Spatial Stream, 256 Mb/s FDD, 128 Mb/s TDD At 10 MHz: -90 dBm At 20 MHz: -87 dBm At 40 MHz: -85 dBm At 50 MHz: -84 dBm 1/2 Rate QPSK xRT at 1x Spatial Stream, 128 Mb/s FDD, 64 Mb/s TDD At 10 MHz: -93 dBm At 20 MHz: -90 dBm At 40 MHz: -88 dBm At 50 MHz: -87 dBm 1/4 QPSK xRT at 1/4x Spatial Stream, 32 Mb/s FDD, 16 Mb/s TDD At 10 MHz: -95 dBm At 20 MHz: -93 dBm At 40 MHz: -92 dBm At 50 MHz: -91 dBm |
Radio Frequencies
| GPS | GPS clock synchronization |
Transceiver Specification
| EIRP | ~50 dBm (Dependent on regulatory region and frequency band) |
| Frequency Accuracy | ±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization |
| Channel Bandwidth | 10/20/40/50 MHz |
| Modulation | 256QAM MIMO 64QAM MIMO 16QAM MIMO QPSK MIMO 1/2 Rate QPSK xRT 1/4 Rate QPSK xRT |
Integrated Split Antenna
| TX Gain | 23 dBi |
| RX Gain | 23 dBi |
| Beamwidth | 6° |
| Front-to-Back Ratio | 70 dB |
| Polarity | Dual-slant polarization |
| Cross Polar Isolation | >28 dB |
Standards and Certifications
| Certifications | CE, FCC, IC |
Physical Characteristics
| Operating Temperature | -40 to 131°F (-40 to 55°C) |
| Dimensions | 25.5 x 16.8 x 11.9" (64.9 x 42.6 x 30.3 cm) |
| Weight | 23.1 lb (10.5 kg) with mount |
Packaging Info
| Package Weight | 57 lb |
| Box Dimensions (LxWxH) | 40.8 x 22.5 x 20" |
