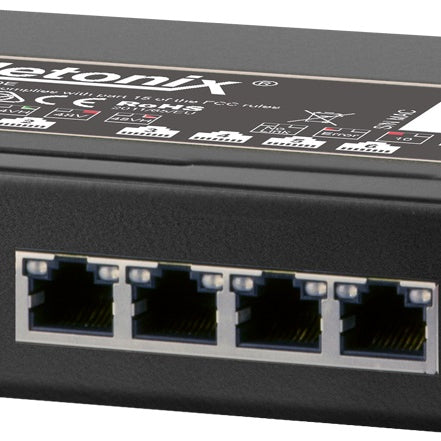

Netonix WS-6-MINI Mini Managed Passive POE Switch

Netonix

Netonix WS-6-MINI Mini Managed Passive POE Switch

MPN: WS-6-Mini

SKU: NETONIX-WS-6-MINI

$229

- 8VH 1.5A passive POE port from another WISP Switch.
- 48-54V DC POE adapter up to 2A
- 48-54V DC barrel connector up to 2A

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

Designed with a rugged chassis and extended operating temperature range with a simple yet powerful user interface.

Configureable voltage / current

  24V PoE Ports
Pins 4,5 (+)
Pins 7,8 (-)
1A

  48V PoE Ports
Pins 4,5 (+)
Pins 7,8 (-)
1A

  24VH PoE Ports
Pins 1,2,4,5 (+)
Pins 3,6,7,8 (-)
2A

  48VH PoE Ports
Pins 1,2,4,5 (+)
Pins 3,6,7,8 (-)
2A
Ports 02-06 Ports 02-06 N/A Port 02

  • Manufactured in North America
  • Standard Desktop / Wall mount
  • Optional DIN Rail
  • Dimensions 127mm x 118mm x 32mm
  • Operating temperature -25 to 55°C (-13 to 131° F)
  • Serial console port
  • Passive PoE current sensors on each port



Managed 6 Port passive POE Switch

  • 100 Watt power input capacity - Power adapter (POE or Barrel) NOT included.
  • (5) Gbps POE Ports
  • (1) Gbps Uplink Port

Can be powered from:

  • 48VH passive POE port up to 2A from another WISP Switch into port 1
  • 48-54V DC POE adapter up to 2A into port 1
  • 48-54V DC barrel connector up to 2A  into barrel adapter jack



Note: Port 1 will accept passive 48VH (48-56V) using all 4 pairs like a POE injector used to power an airFIBER 24 GHz.

DO NOT power the WS-6-MINI  with a standard passive POE adapter that only supplies 48V power on 2 pairs.

If powering the WS-6-MINI with a 48-56V barrel connector power supply port 1 has no POE options, it is just a standard Ethernet port.

If powering the WS-6-MINI with a barrel connector power supply be sure to connect the ground screw to Earth Ground for ESD protection.
