Planet 2-Port 802.3at PoE+ PCI Express Server Adapter (60W PoE Budget, PCIe x4,

Simple Plug and Play PoE Solution for IPC System

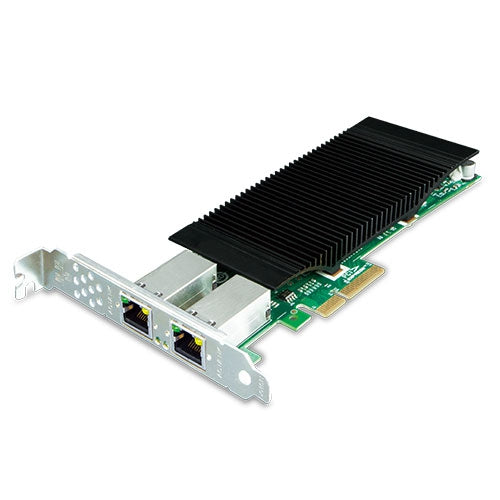

PLANET ENW-9720P is a 2-port 10/100/1000T 802.3at PoE+ PCI Express server adapter with a maximum of up to 60 watts of power output over Ethernet cables. Incorporated with Intel server-grade GbE Mac controller, the ENW-9720P provides superb performance to fulfill the requirements of Industrial networks. Complied with PCIe standard, the ENW-9720P can be easily installed on any IPC or server motherboard with a PCIe socket to make the IPC or server able to communicate with other Ethernet devices and deliver power to PD devices.

Each port of the ENW-9720P can deliver 30W of power and 1000 Mbps bandwidth over a networking cable of up to 100 meters. Its 30W PoE+ can now power not only PTZ (pan, tilt and zoom) cameras for surveillance applications but also 802.11ac AP for ultra-high-speed wireless application.

Hassle-free Installation for PoE Deployment

PLANET ENW-9720P is backward compatible with both IEEE 802.3af/at PoE standards which allow users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters.  In addition, the ENW-9720P is powered by bus power without an external power input. Thus, an additional electrical outlet is not necessary.

With PoE application, the ENW-9720P frees the IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.

Standard 802.1Q VLAN Support

The ENW-9720P supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9.5K jumbo frame ability and IEEE 802.3 flow control support, it further optimizes throughput and wire-speed packet transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments.

Multiple OS Support

The ENW-9720P operates completely well with most of the popular and latest operating systems including Microsoft Windows Server, Linux and VMware, enabling simple integration into network designs. There is no need of any modification to the server's operating system or any special software required for the ENW-9720P to be integrated into the system.

Low Profile design

The ENW-9720P supports both full-height and low profile PCI Express slot. The ENW-9720P provides an accessory of low profile bracket to fulfill IPC with low profile slot. The flexibility of low profile design can help the ENW-9720P meet various applications of industrial networks.
