Mimosa Networks B11 11GHz 1.5Gbps capable PtP Backhaul Radio

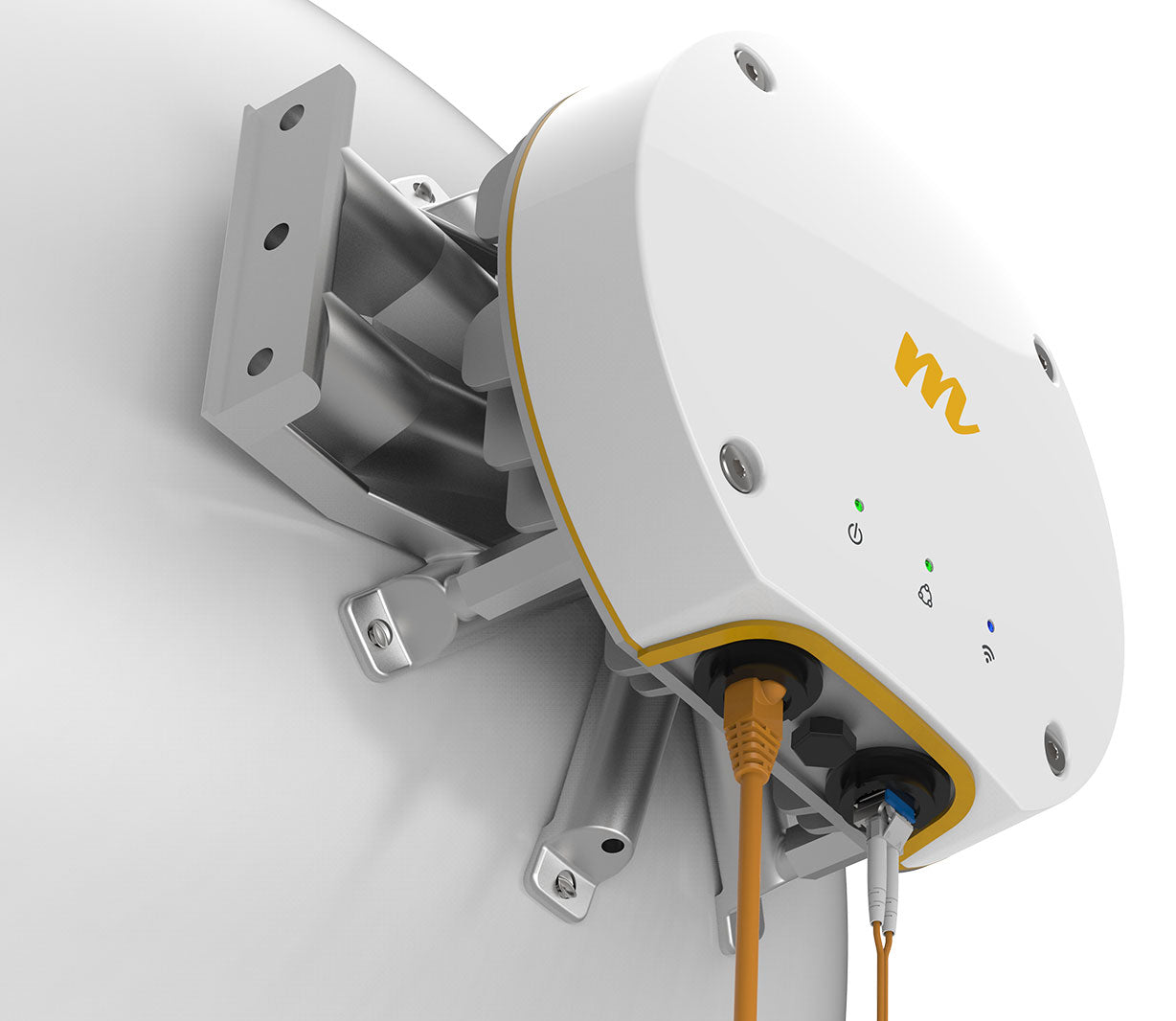

Introducing the Mimosa B11 Redefining 10.0-11.7 GHz Gigabit Backhaul

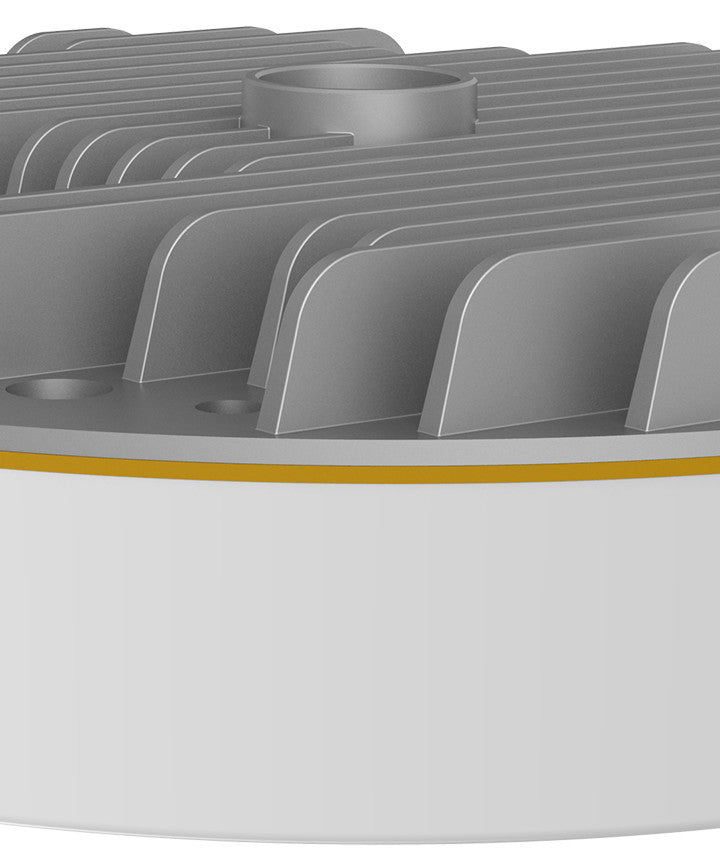

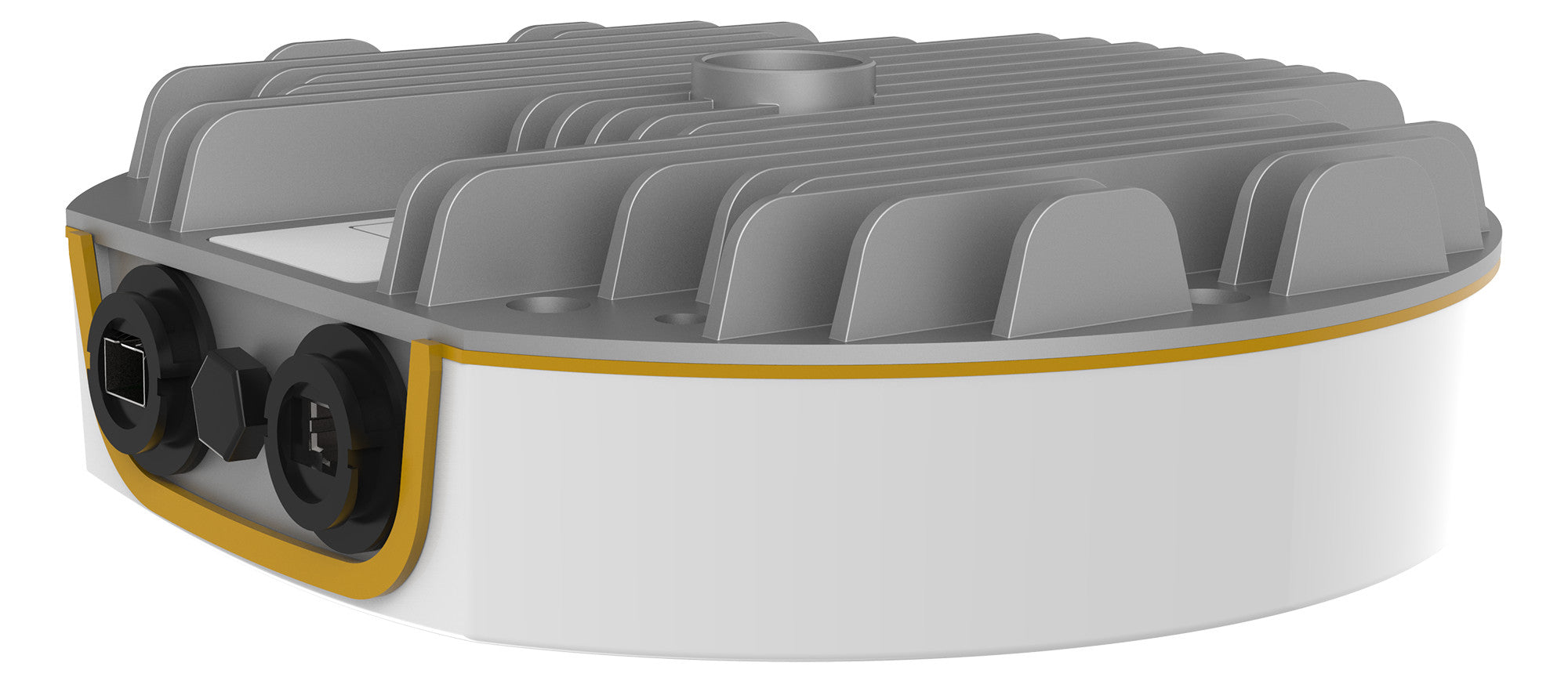

Mimosa Networks B11 Precision Engineered for Reliability

Mimosa

Mimosa Networks B11 11GHz 1.5Gbps capable PtP Backhaul Radio

MPN: 100-00036

SKU: MIMOSA-B11

$2,350


  • Max Throughput: Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)

  • MIMO & Modulation: 4x4:4 MIMO OFDM up to 256 QAM

  • Bandwidth: Dual 20/40/80 MHz channels

  • Frequency Range: 10000–11700 MHz restricted by country of operation

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

Includes PoE Injector 56V


MFG # 100-00036

The Mimosa B11 backhaul radio is designed for the modern Internet era, adapting instantly to variable
upstream and downstream bandwidth requirements. The B11 is fiber-ready - simply add your preferred SFP
module and you’ll be lit up with gigabit fiber speeds. If you are not quite ready for fiber, the B11 also comes with
a standard Gigabit Power-over-Ethernet connection.

Mimosa simplified the licensing process and offer instant visibility into the FCC ULS database to quickly assess
surrounding links, providing an early indication of coordination viability. A single B11 can support an entire
10.7 - 11.7 GHz band, maximizing your ability to find a clear, licensable channel.

With up to 1.5 Gbps aggregate speed and under 1 ms latency, high performance has never been this affordable. The B11 has the lowest cost per Mpbs in the industry with link distances over 100km.

Carrier grade IP67 design allows the B11 to withstand the harshest of environmental conditions.
Performance
Max Throughput Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY), 750 Mbps IP aggregate running in TDMA-FD mode typically required in ETSI markets
Low Latency < 1 ms
Wireless Protocols TDMA, TDMA-FD
Radio
MIMO & Modulation 4x4:4 MIMO OFDM up to 256QAM
Bandwidth Single or Dual 20/40/80 MHz channels
Frequency Range 10000-11700 MHz restricted by country of operation
Max Output Power 27 dBm
Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
Max Power Consumption 30 W
System Power Method 48 V DC 802.3 at compliant power injectors
System Lightning & ESD Protection 6 kV
PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection
Physical
Dimensions Height: 260 mm (10.2") Width: 158 mm (9.6") Depth: 70 mm (2.8")
Weight 2 kg (4.5 lbs)
Enclosure Characteristics Outdoor UV stabilized plastic Aluminum mounting panel
Wind Survivability 200 km/h (125 mph)
Wind Loading 9.89 Kg @ 160 km/h (21.8 lbs @ 100 mph)
Mounting Direct mount to compatible antenna
Antenna Connection Direct connect to circular dual polarized antenna
Network Interfaces Single connection ethernet or fiber
Environmental
Outdoor Ingress Protection Rating IP67
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4420 m (14500') maximum
Shock & Vibration ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet 10/100/1000-BASE-T
Fiber Capable SFP Cage included Radio accepts either copper Ethernet or SFP but does not support simultaneous operation
Dual Protocol Operation 2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM
Management Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI
2.4 GHz 802.11b/g/n radio for local management access
Smart Antenna Alignment Hands-Free dedicated 2.4 GHz Wi-Fi management radio
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
Security 128-bit AES PSK with hardware acceleration
QoS Supports 4 pre-configured QoS levels
GPS Location GNSS-1 (GPS + GLONASS)
Colocation Synchronization 1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth ratio
Regulatory + Compliance
Approvals FCC Part 101
RoHS Compliance Yes
