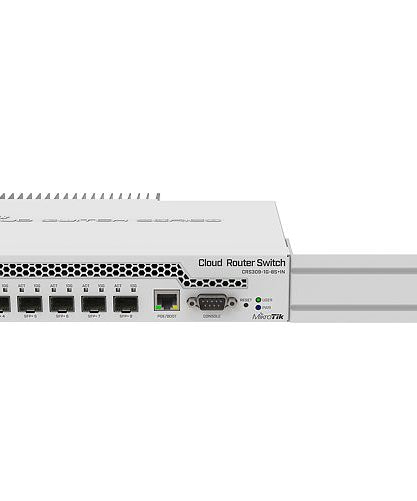

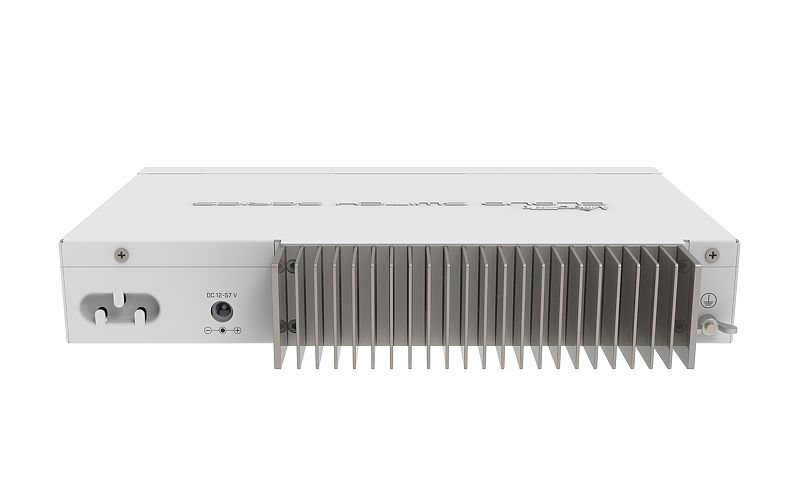

MikroTik CRS309-1G-8S+IN Cloud Router Switch 800MHz 512MB 8xSFP+

MPN: CRS309-1G-8S+IN

SKU: MIK-CRS309-1G-8S-IN

$279
$299


  •  8 SFP+ ports for 10 Gigabit connectivity

  •  Dual-core 800 MHz CPU, 512 MB RAM

  •  Management Ethernet port with PoE power input

  •  RS232 serial port and a grounding terminal

  •  Dual boot feature that allows to choose RouterOs or SwOS

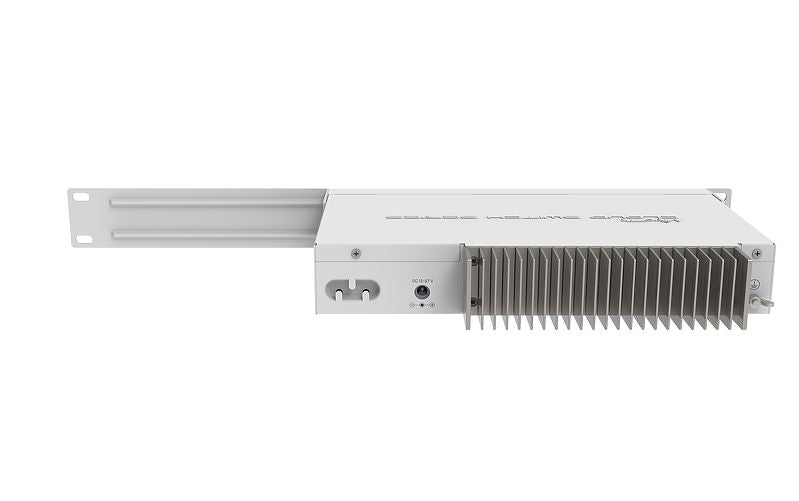

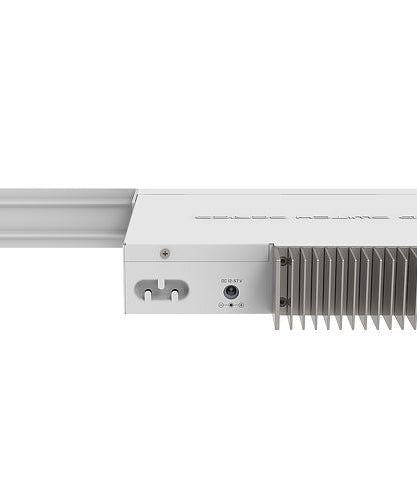

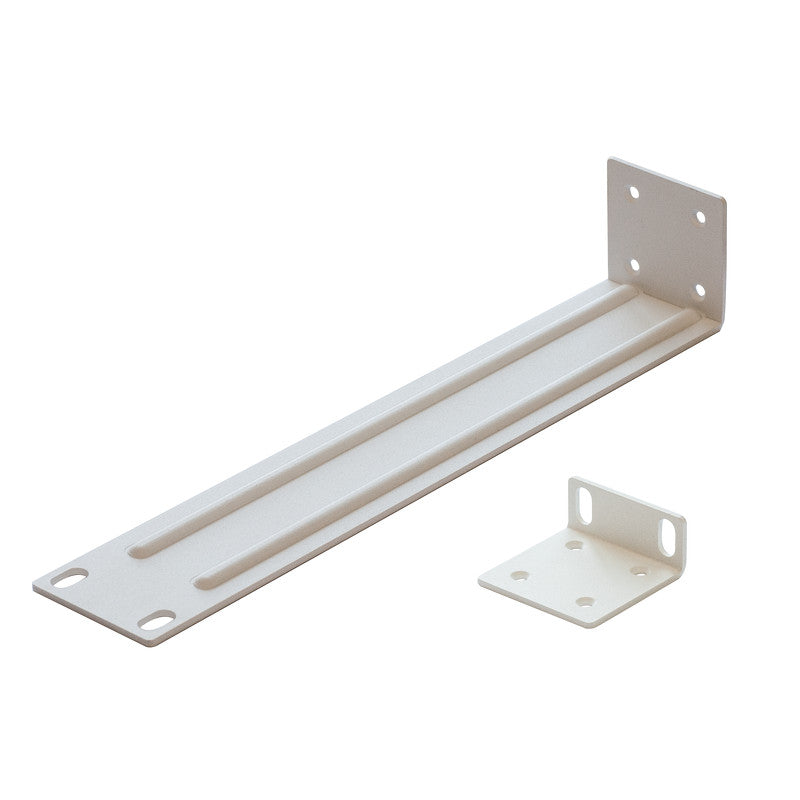

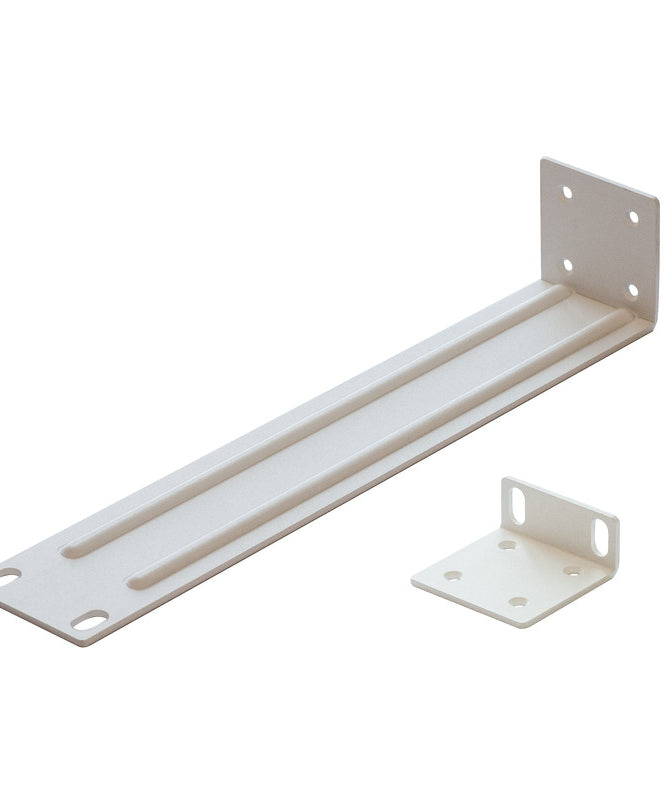

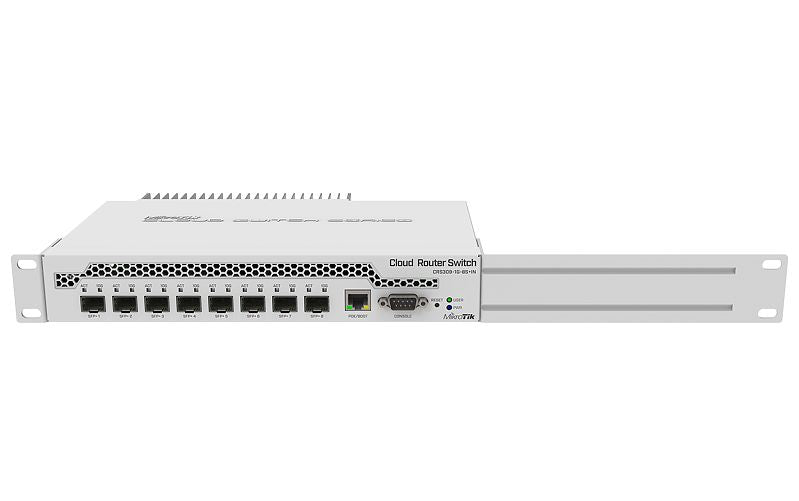

  •  Special rackmount ears for installing unit into the standard rack

Availability Call (877) 271-9484 For Availability
Ask about this product
Delivery and Return
Description

CRS309-1G-8S+IN

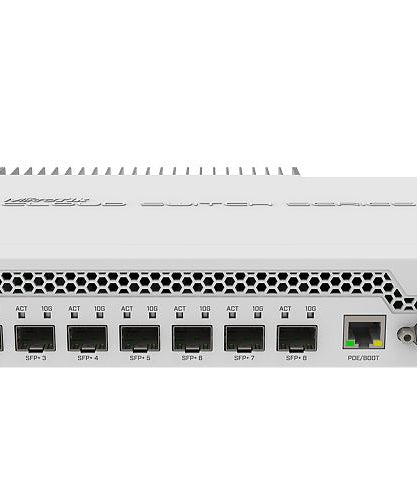

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).





Specifications

Details
Product code CRS309-1G-8S+IN
Architecture ARM 32bit
CPU 98DX8208
CPU core count 2
CPU nominal frequency 800 MHz
Dimensions 272 x 191 x 44 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $269.00


Powering

Details

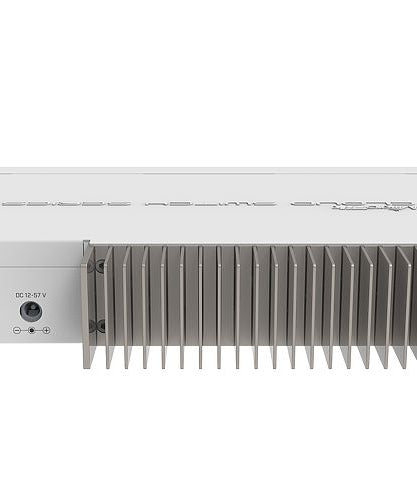

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max power consumption 23 W
Max power consumption without attachments 17 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V


Ethernet

Details
10/100/1000 Ethernet ports 1


Fiber

Details
SFP+ ports 8


Peripherals

Details
Serial port RS232


Other

Details
CPU temperature monitor Yes


Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP20
