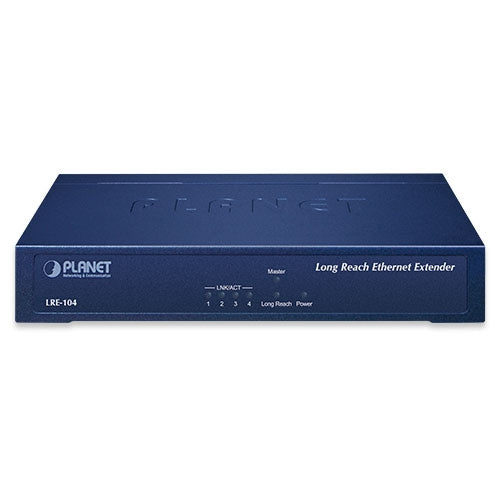

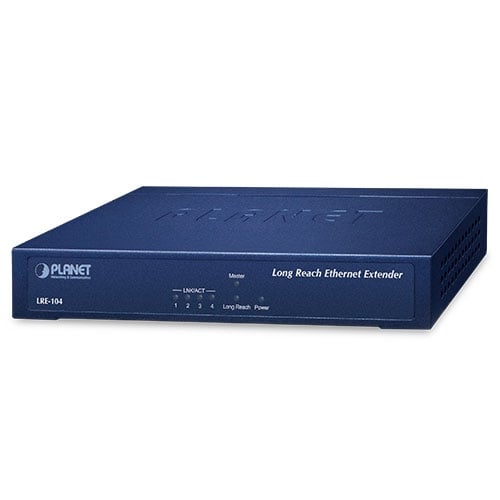

Planet 4-Port 10/100TX + 1-Port UTP/BNC Long Reach Ethernet Extender

MPN: LRE-104

SKU: PLA-LRE-104

$163.80


  • 4 x 10/100Mbps RJ45 ports, auto-negotiation and half/full duplex mode

  • 1 x RJ45 port for Long reach function

  • 1 x BNC female connector for Long reach function

Availability Usually Ships 10-14 Business Days
Ask about this product
Delivery and Return
Description
Community/Campus Surveillance and Security over IP

To take advantage of digital surveillance system and keep the benefits of UTP cable, the LRE-104 helps the community, campus and enterprises to upgrade analog camera system to IP camera surveillance without using additional new wires. The LRE-104 is a switching architecture with four RJ45 ports, one Long Reach Ethernet interface and BNC connector. Just plug in the UTP cable of IP camera to one of the 4 Ethernet ports and the existing UTP cable or Phone wire to the UTP connector or BNC cable to the BNC connector to easily deploy and extend the distance with signal conversion by transmitting the Ethernet data from the standard cable.





Point-to-Point Application -- LAN to LAN Connection

One set of the LRE-104 Extender could be used to link two local area networks that are located in different places. Through the Cat.5e UTP cable, Phone wire or BNC cable, it could set up a 100Mbps backbone, but one must be Master and the other one is Slave.


Hardware Specifications
LAN Ethernet Interface
Connector4 x 10/100BASE-TX RJ45 copper port, auto-negotiation / auto-MDI/MDI-X
CablingCat5e UTP or above
Maximum distance100 meters
Maximum frame size1522 bytes
Long Reach Interface
Connector1 x RJ45 copper port1 x BNC female port
Cabling
  • Cat5 UTP cable

  • phone wire
  • Coaxial cable: 75 ohm

  • RG-6/U cable, less than12Ω/1000 ft

  • RG-59/U cable, less than 30Ω/1000 ft
Maximum Distance Max. Data transmission of 800m (Cat5 UTP)
Max. Data transmission of 1200m (phone wire)
Max. Data transmission of 2000m (6,561ft.)
Long Reach Ethernet StandardIEEE 1901
Modulation TypeWavelet-OFDM
Security128-bit AES encryption
Frequency Band2~28MHz
DIP Switch Select Master or Slave mode
Dimensions (W x D x H) 154.6 x 86.0 x 26.3 mm
Weight 347g
Housing Metal
Power Requirement 12V DC, 1A external power
LED Indicators Power: Green
LAN: Green, 10/100Mbps LNK/ACT
Long Reach: Green, LNK
Master: Green
Compatible Long Reach Extender LRE-101
LRE-101C
Standards Conformance
Standards Compliance IEEE 802.3/ 802.3u Ethernet standard compliant
IEEE 802.3x Full-duplex flow control
IEEE 802.1q Tag VLAN Transparent, Multicast pass-through
Regulatory Compliance FCC Part 15 Class A, CE
Environment
Temperature Operating: 0~50 degrees C
Storage: -10~70 degrees C
Humidity Operating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Performance
Distance (meter)
  Upstream / Downstream (Unit: Mbps)
  UTP Cable (RJ45) Phone Wire (RJ11) Coaxial Cable (BNC)
200m 78/78 84/79 85/80
400m 78/70 82/76 83/80
600m 73/63 62/45 81/80
800m 8/3 35/23 83/82
1000m － 28/22 79/77
1200m － 8/3 68/65
1400m － － 56/47
1600m － － 38/30
1800m － － 23/23
2000m － － 46
**The actual data rate will vary in the quality of the coaxial cable, UTP cables or phone wire and environmental factors.
**UTP and BNC cannot be used for long reach port at the same time.
