Ubiquiti Networks

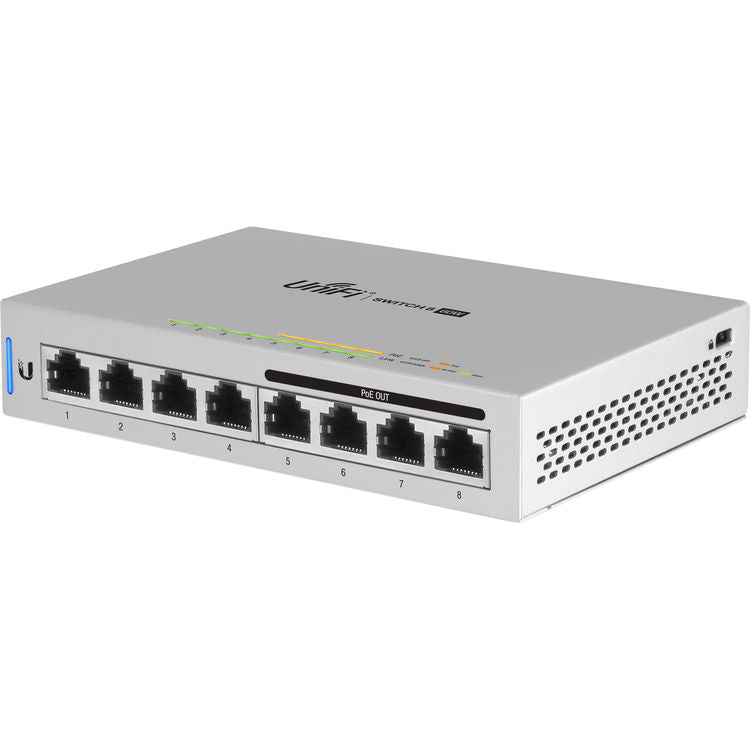

Ubiquiti US-8-60W-5 UniFi 8-Port Gigabit PoE Compliant Managed Switch 5-Pack
MPN: US-8-60W-5
SKU: UBI-US-8-60W-5
Share
8-Port Managed Gigabit Switches
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
| UNIFI SWITCH US-8-60W | |
|---|---|
| Dimensions | 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21") |
| Weight | 432 g (15.24 oz) |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports |
| PoE Interfaces | (4) Ports 5, 6, 7, 8: IEEE 802.3af |
| Power Method | 48VDC, Max. 2A |
| Power Supply | External AC/DC Adapter: 48V, 1.25A |
| Max. Power Consumption | 12W (Excluding PoE Output) |
| Max. PoE Wattage per Port | 15.4W |
| PoE Output (Ports 5 to 8) | IEEE 802.3af 2-Pair (Pins 1, 2+; 3, 6-) |
| Line Rate | 8 Gbps, Non-Blocking |
| LEDs System RJ45 Data Ports |
Status PoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
