Ubiquiti Networks

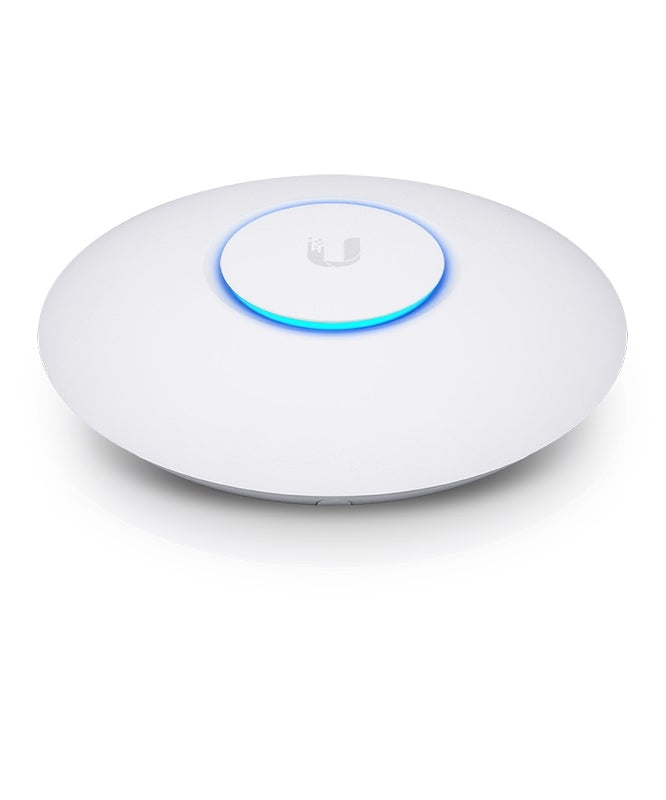

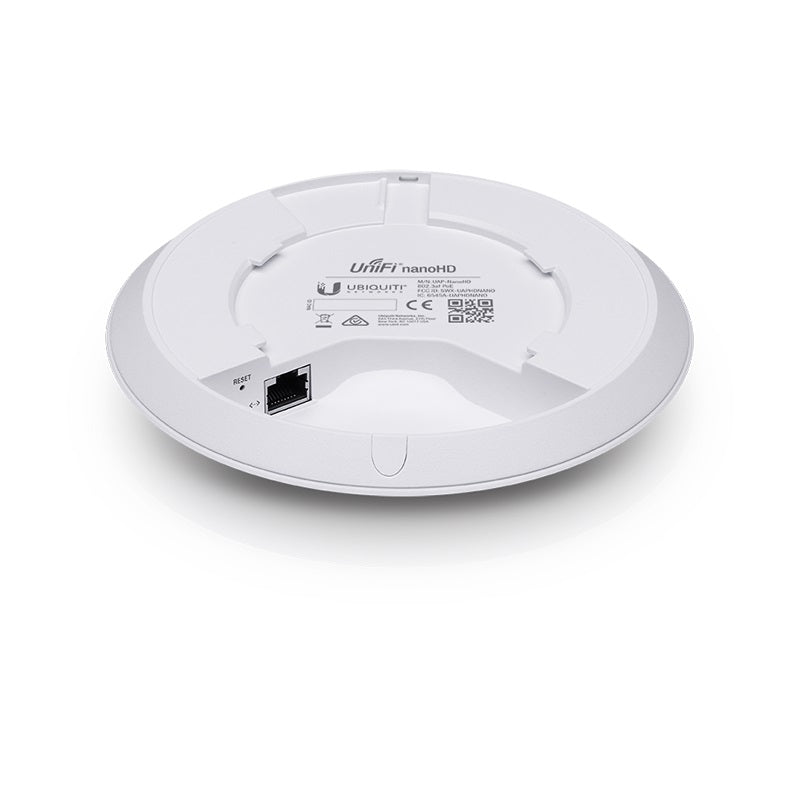

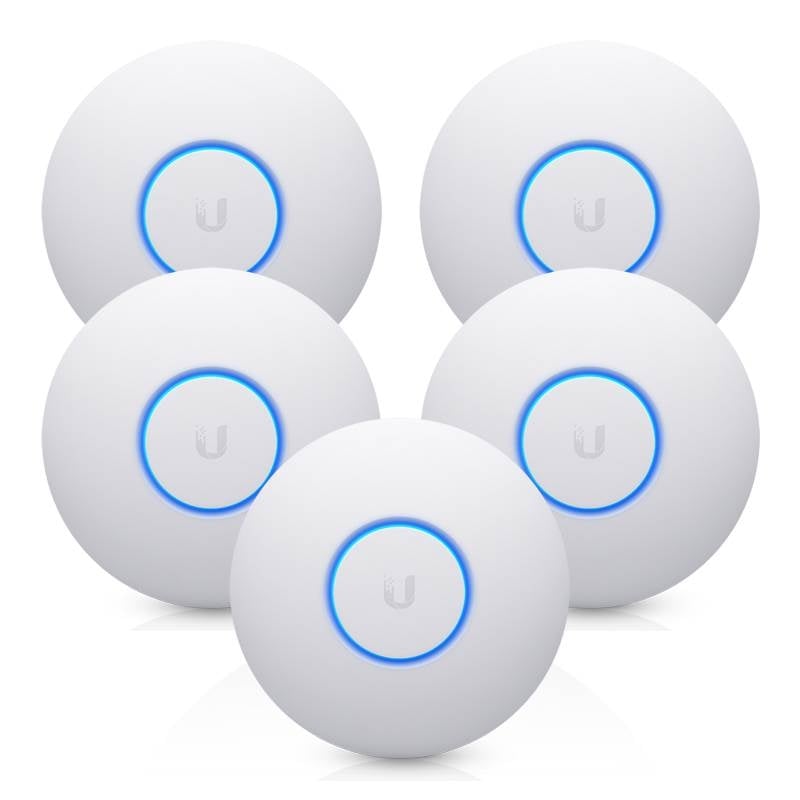

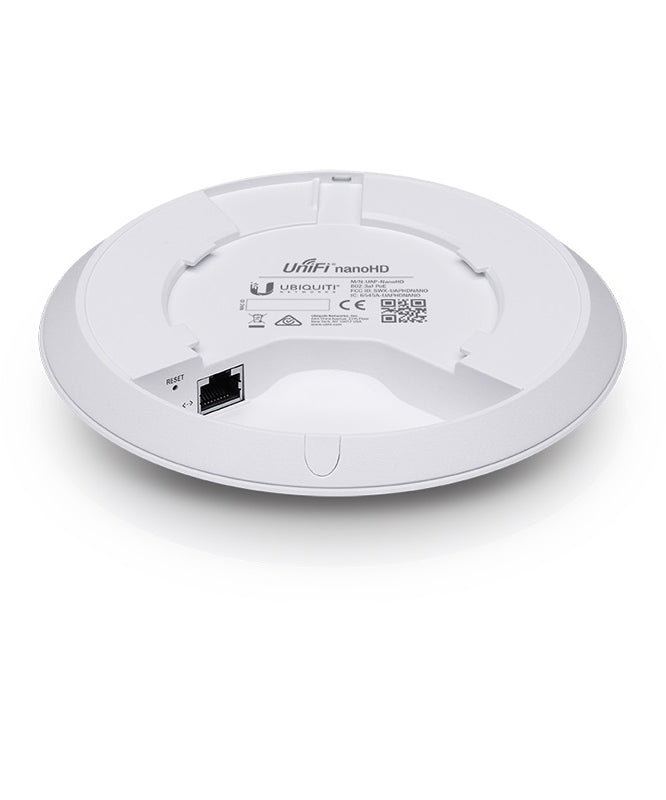

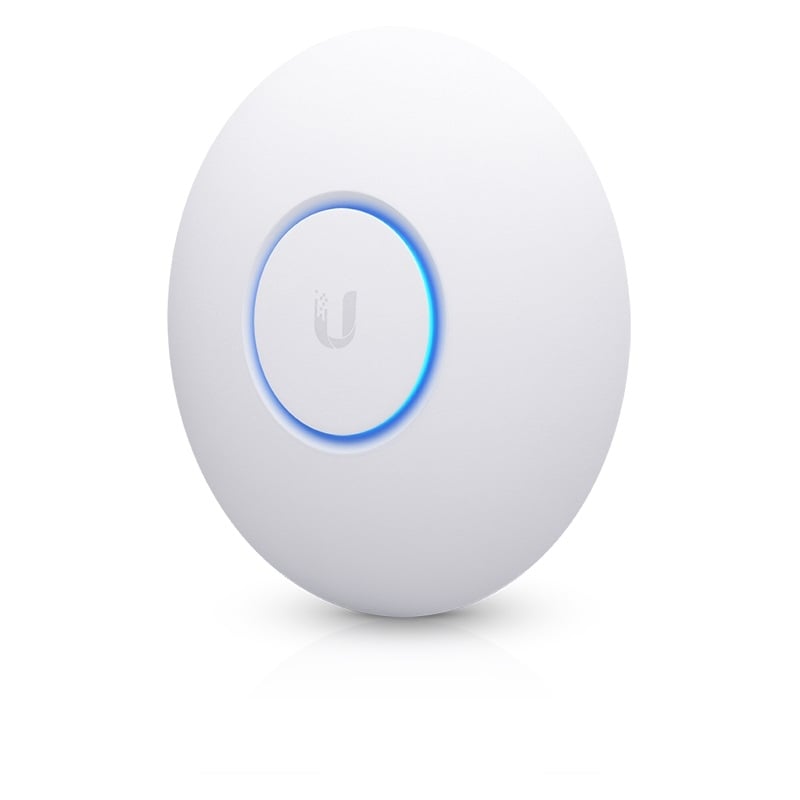

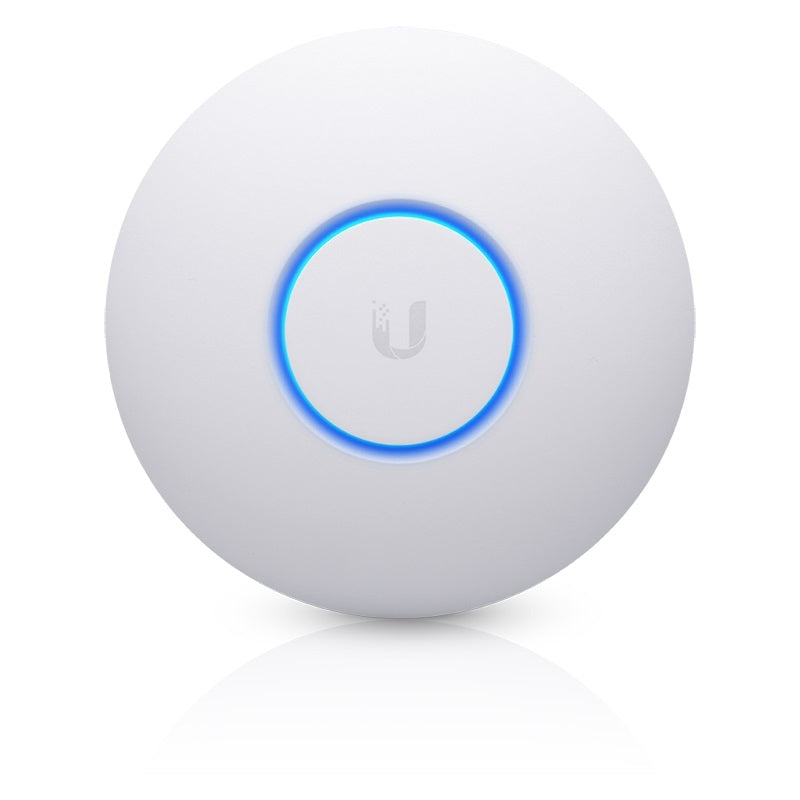

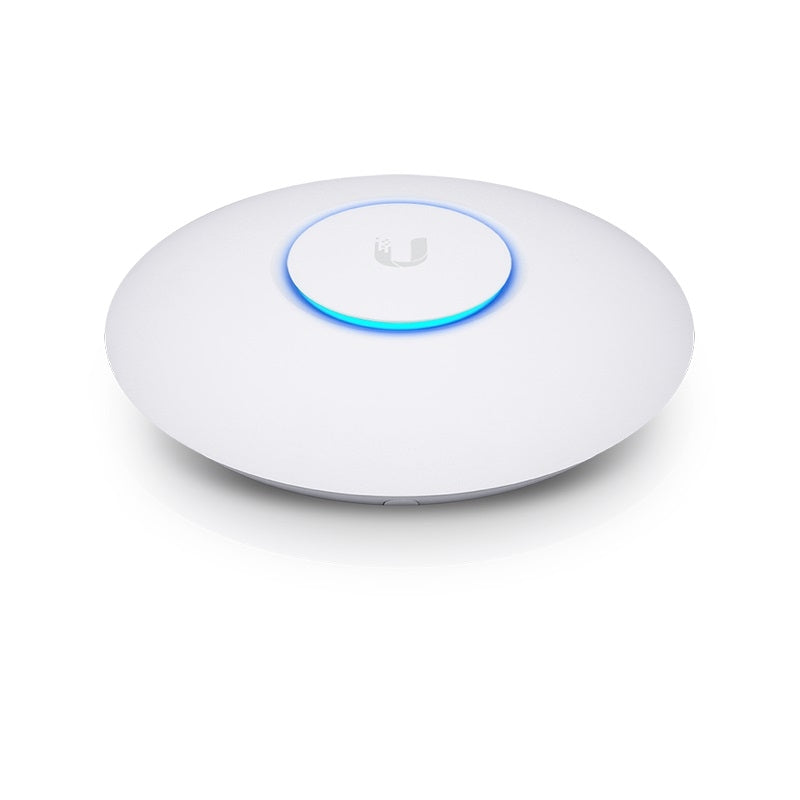

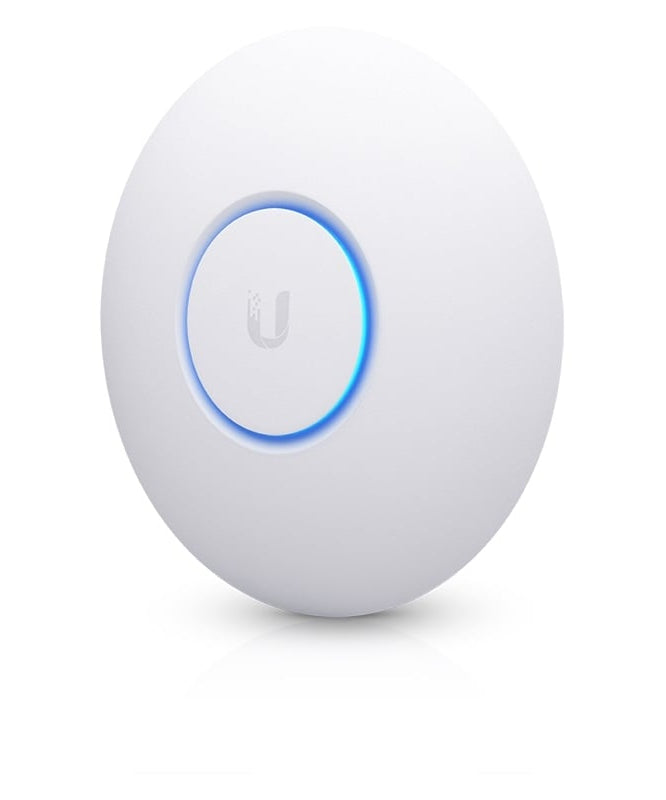

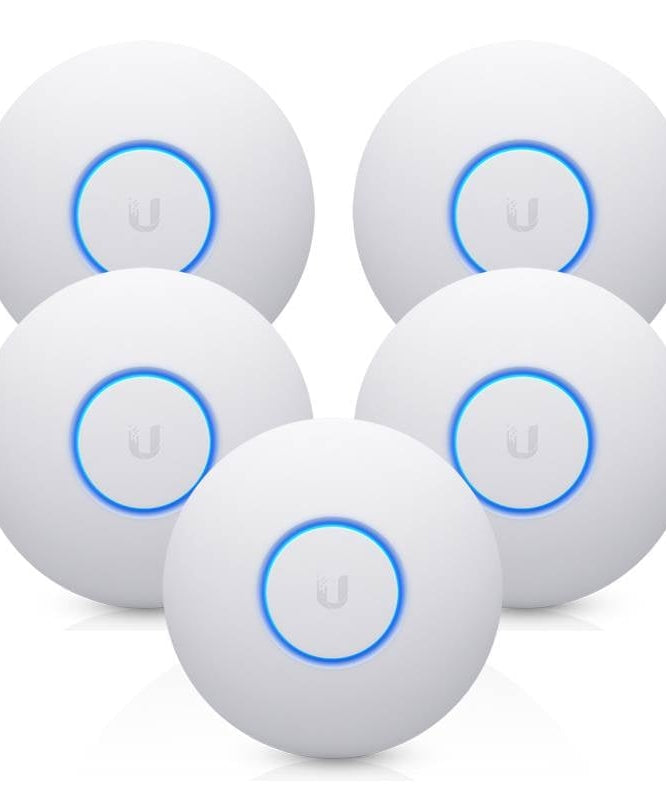

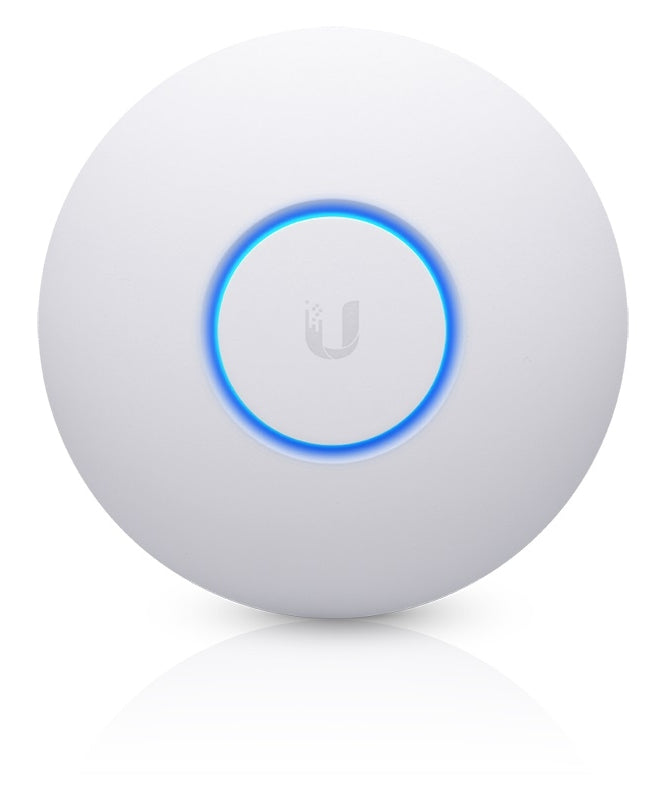

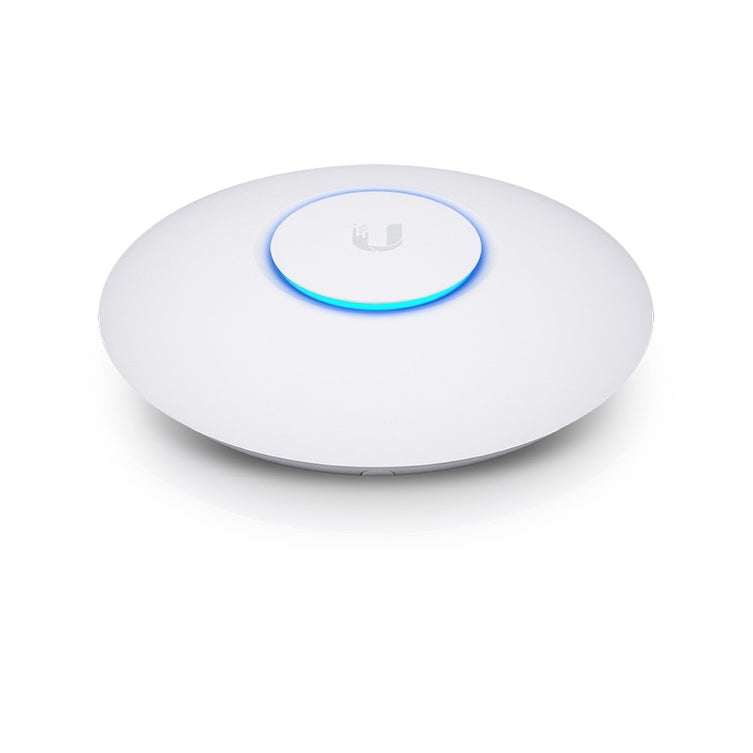

Ubiquiti UniFi NanoHD 802.11ac Wave-2 4x4 MU-MIMO Access Point
MPN: UAP-NANOHD-US

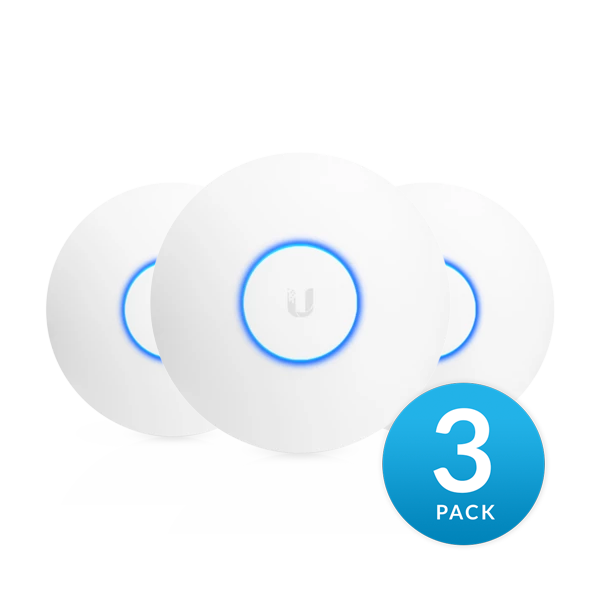

SKU: UBI-UAP-NANOHD-3-US
$527
Share
The Newest Price / Performance Leader in Enterprise Wi-Fi
4x4 MU-MIMO technology
Powered by Software Defined Networking
Easily deploy your UniFi Enterprise System using the included UniFi Controller software. Manage thousands of UniFi devices across multiple sites, and scale your network as needed without any ongoing licensing fees.
Designed for Seamless Integration *

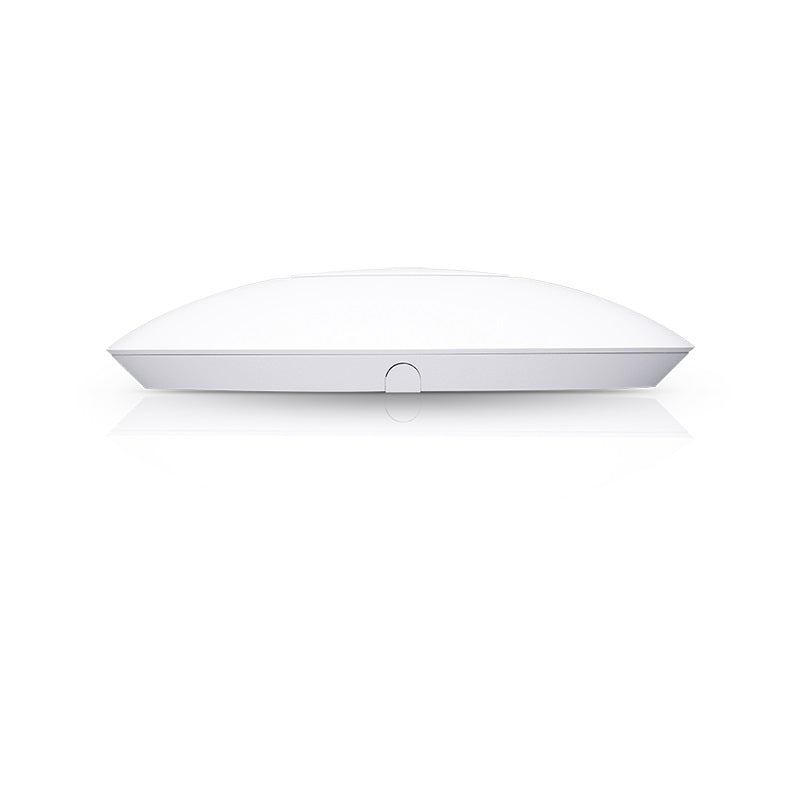

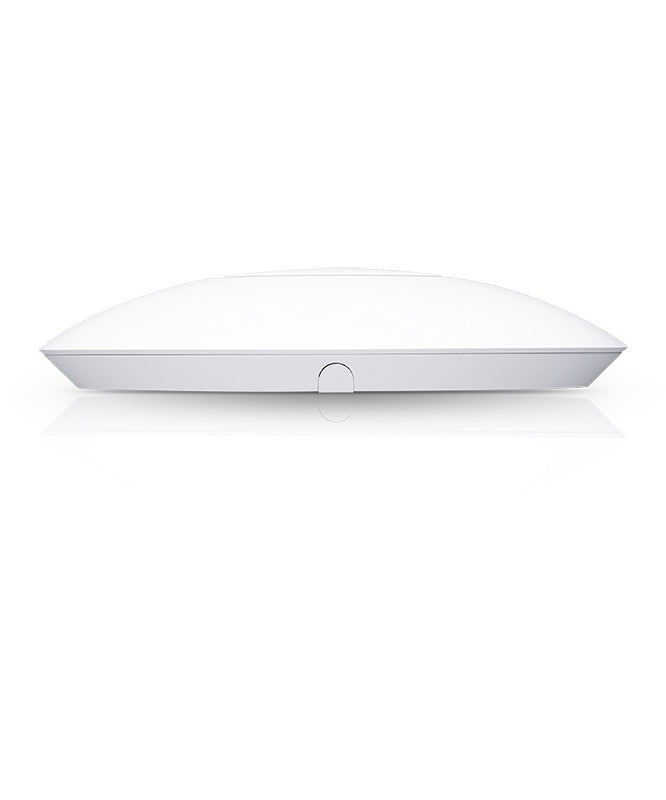

The UniFi nanoHD Access Point features a low-profile form factor. The optional ceiling mount or custom skins allow the AP to blend even more discreetly into its setting.
* Low-profile mounting accessory is sold separately
Custome Skin - sold separately
Ubiquiti Networks nanoHD Specs
| Ethernet Networking Interfaces | 1 x 10/100/1000 Ethernet port |
| Buttons | Reset |
| Power Method | 802.3af PoE |
| Power Supply | UniFi Switch (PoE) |
| Maximum Power Consumption | 10.5 W |
| Supported Voltage | 44 to 57 VDC |
| TX Power | 2.4 GHz: 23 dBm 5 GHz: 26 dBm |
| MIMO Technology | 2.4 GHz: 2x2 5 GHz: 4x4 |
| Data Rates | 2.4 GHz: 300 Mb/s 5 GHz: 1733 Mb/s |
| Antennas | 2.4 GHz: 2.8 dBi 5 GHz: 3 dBi |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per radio |
| Mounting | Wall/ceiling (kits included) |
| Temperature & Humidity | Operating Temperature: 14 to 158°F / -10 to 70°C Operating Humidity: 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| Traffic Management and QoS | VLAN: 802.1Q Advanced QoS: Per-user rate limiting Guest Traffic Isolation: Supported WMM: Voice, video, best effort, and background Concurrent Clients: 200+ |
| Supported Data Rates (Mbps) | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mb/s 802.11n: 6.5 to 300 Mb/s (MCS0 - MCS15, HT 20/40) 802.11ac: 6.5 Mb/s to 1.7 Gb/s (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11b: 1, 2, 5.5, 11 Mb/s 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mb/s |
| Dimensions | 6.30 x 6.30 x 1.29" / 160.00 x 160.00 x 32.65 |
| Weight | AP: 10.6 oz / 300 g With Mounting Kits: 11.1 oz / 315 g |
| Packaging Info | |
|---|---|
| Package Weight | 2.27 lb |
| Box Dimensions (LxWxH) | 7.95 x 7.95 x 3.6" |
