Ubiquiti Networks

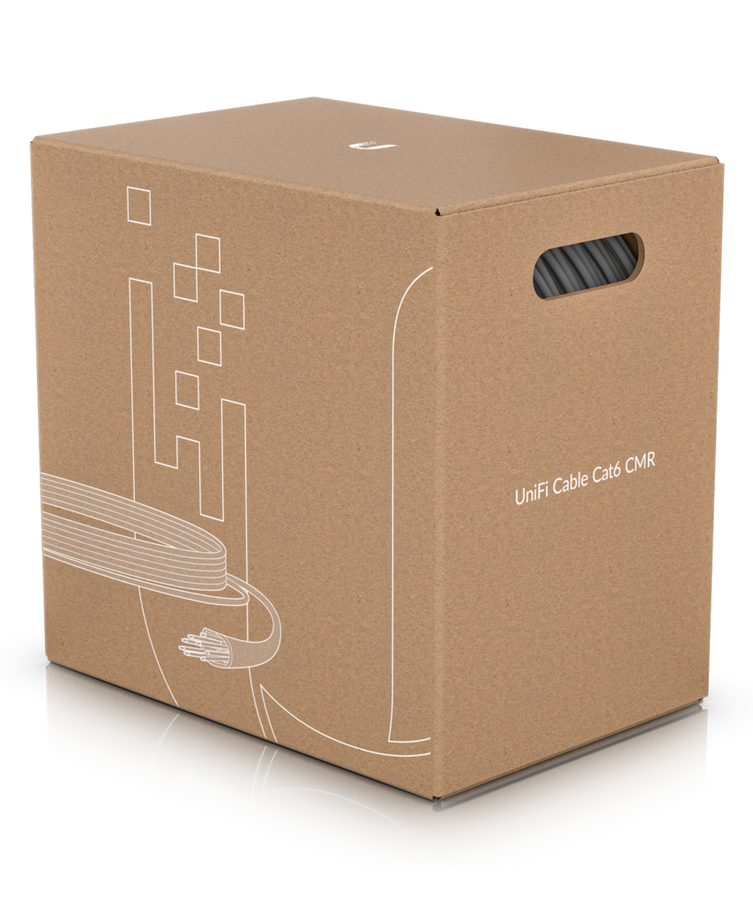

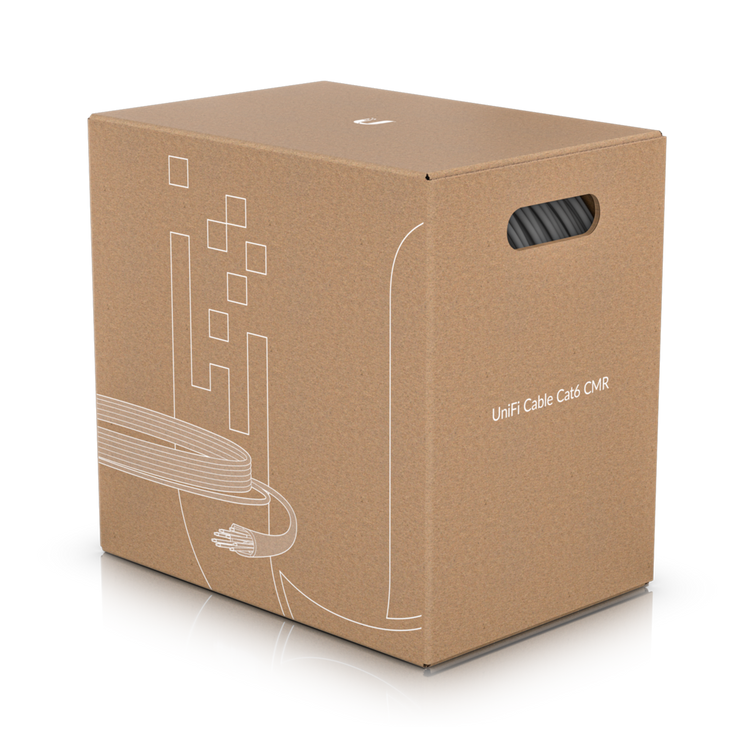

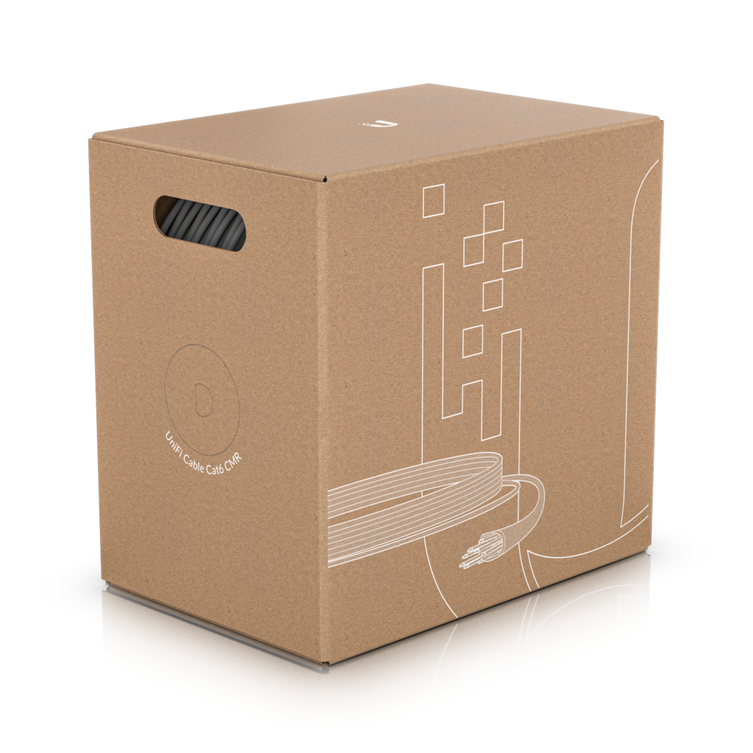

Ubiquiti U-Cable-C6-CMR UniFi Cable Cat6 CMR 23AWG 1000ft

MPN: U-Cable-C6-CMR

SKU: UBI-UC-C6-CMR

$159

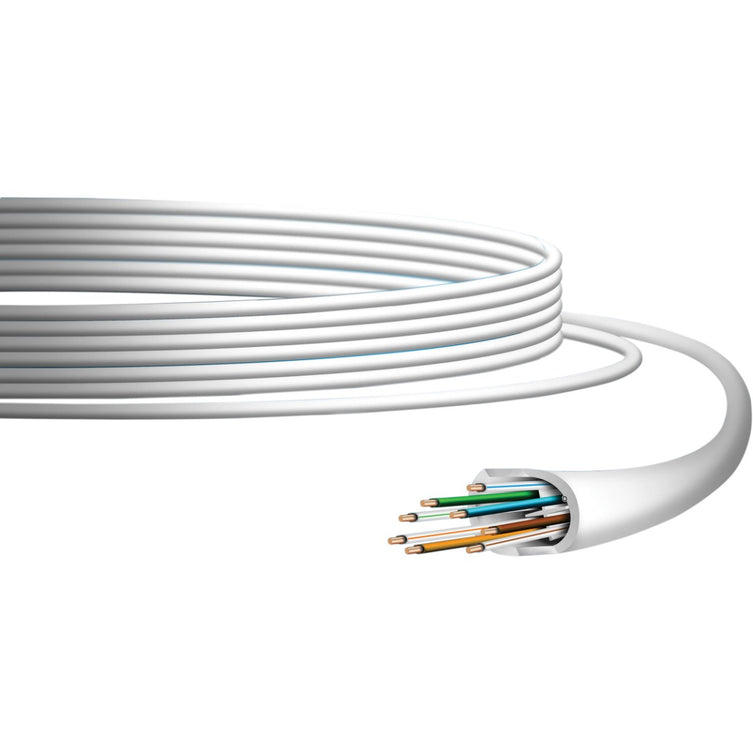

  • Category 6 Unshielded Twisted Pair (UTP) cable

  • Communications Multipurpose Cable, Riser (CMR)-rated, fire-resistant jacket

  • 1,000 ft (305 m)

  • 23 AWG solid copper, twisted pair conductor

  • Anti-crosstalk divider

  • For 1000BASE-T Ethernet applications


Availability Call (877) 271-9484 For Availability
Description
Category 6 Ethernet cable for high-speed, indoor deployments <p>The U-Cable-C6-CMR is a Category 6 UTP cable that supports speeds up to 1Gbps with its 23 AWG solid copper, twisted pair conductor. The conductor's small diameter, combined with the cable's anti-crosstalk divider, isolates and protects signals from interference. The U-Cable-C6 is also a CMR cable with a fire-resistant jacket that ensures safe operation across multiple floors and vertical shafts. Category 6 Ethernet connectors are recommended to accommodate the conductor's size and optimize its performance.</p> <p><strong>Features:</strong></p> <ul> <li>Category 6 Unshielded Twisted Pair (UTP) cable</li> <li>Communications Multipurpose Cable, Riser (CMR)-rated, fire-resistant jacket</li> <li>1,000 ft (305 m)</li> <li>23 AWG solid copper, twisted pair conductor</li> <li>Anti-crosstalk divider</li> <li>For 1000BASE-T Ethernet applications</li> </ul>
Mechanical
Box Dimensions474 x 346 x 458 mm (18.7 x 13.6 x 18")
Box Weight14.83 kg (32.69 lb)
Cable Length305 m (1000 ft)
Cable ColorWhite
Cable TypeCategory 6
Shielding TypeUTP
Flame RatingCMR
Conductor Wire Gauge23 AWG
Conductor TypeSolid Bare Copper
Jacket MaterialPVC
Jacket Diameter6.0 ± 0.2 mm
Bend RadiusMin. 24 mm
Pulling TensionMax. 110 N
Storage Temperature-20 to 75°C (-4 to 167°F)
Installation Temperature0 to 60°C (32 to 140°F)
Operation Temperature-20 to 60°C (-4 to 60°F)
Anti-Crosstalk DividerYes
RipcordYes
Data Rate10/100/1000 Base-T
Reference BandwithUp to 600 MHz
StandardsElectrical Transmission:
ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
IEC 61156-5 (Edition 2.1)

Flame Test: UL 1666 (CMR)

Material and Construction:
UL 444
CSA 22.2 NO.214
EU Directive 2011/65/EU (RoHS2)
EU Directive 2006/95/EC (LVD)
