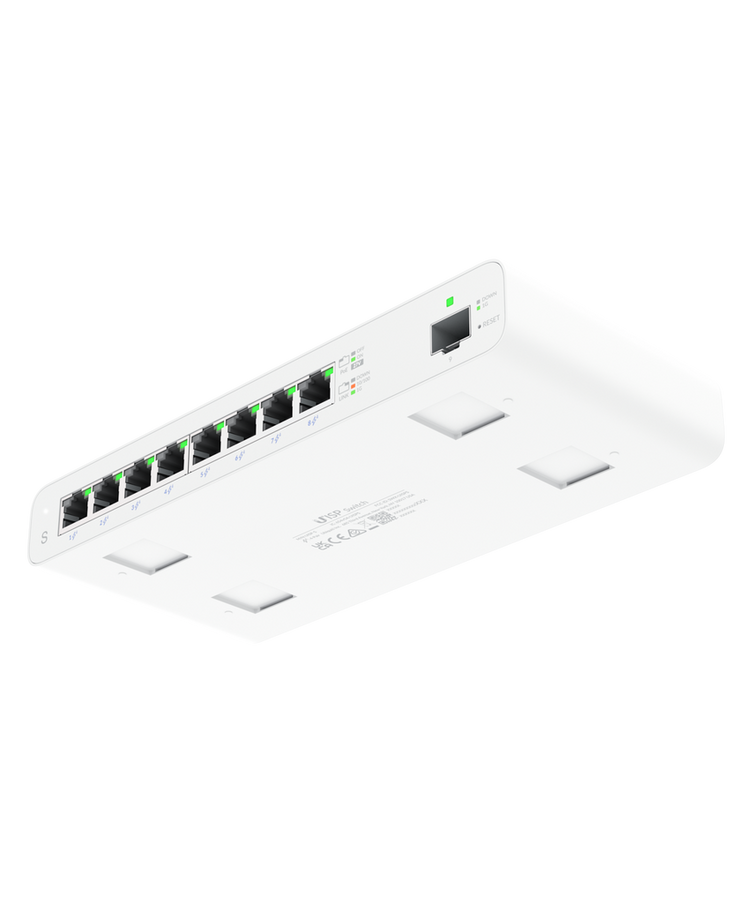

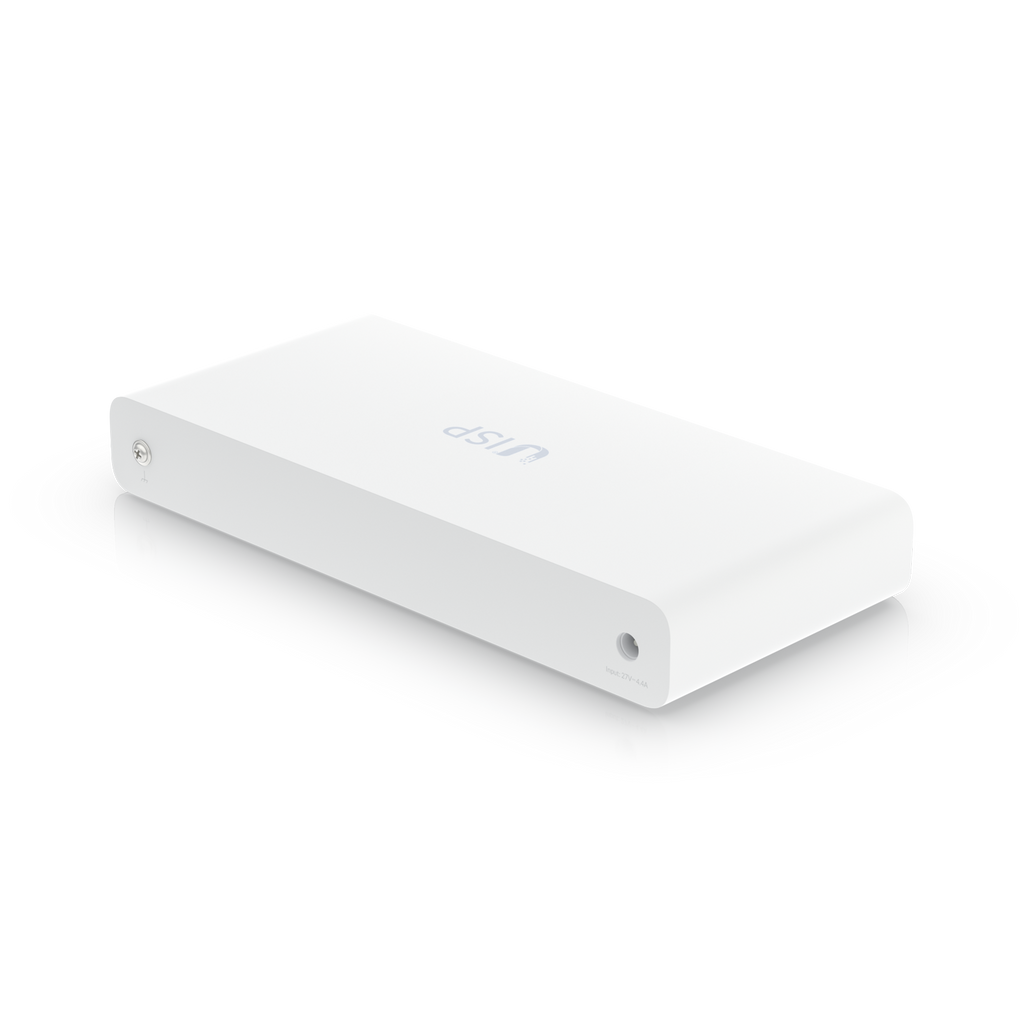

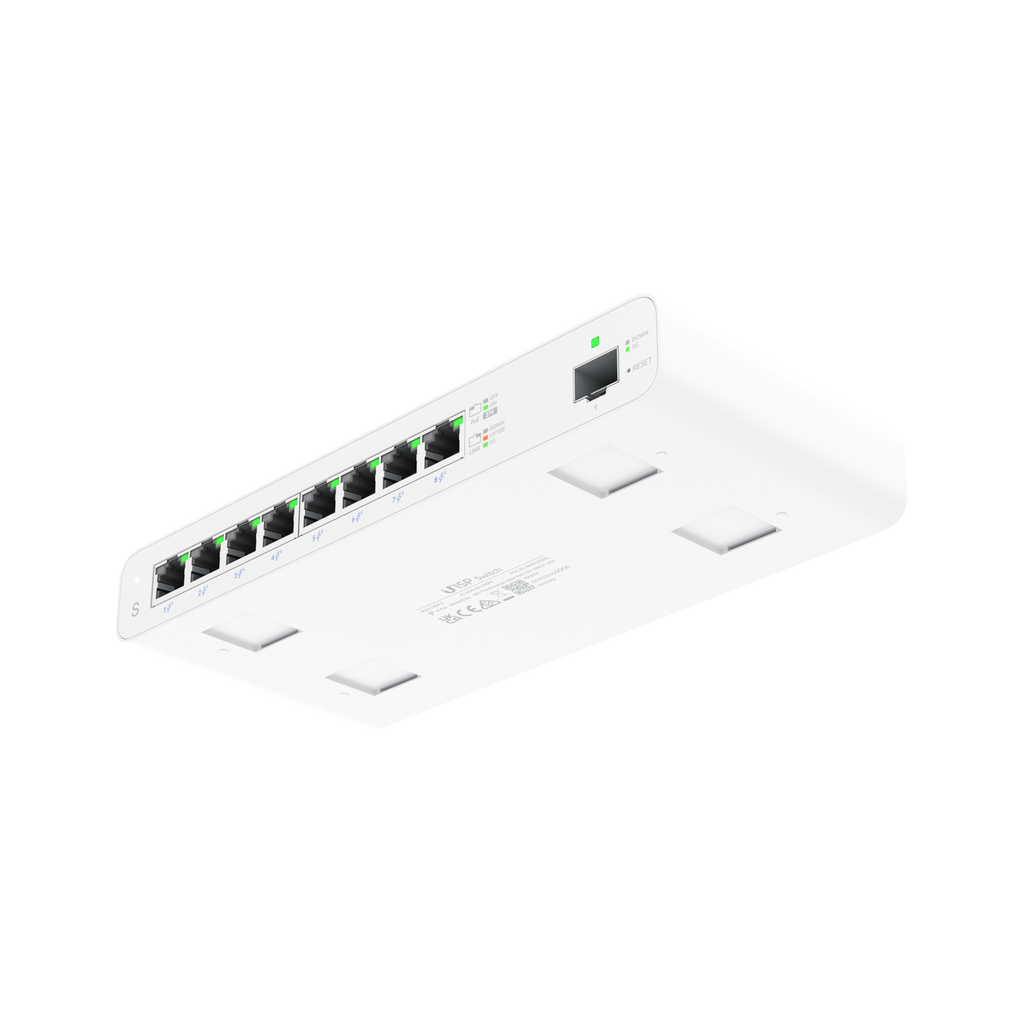

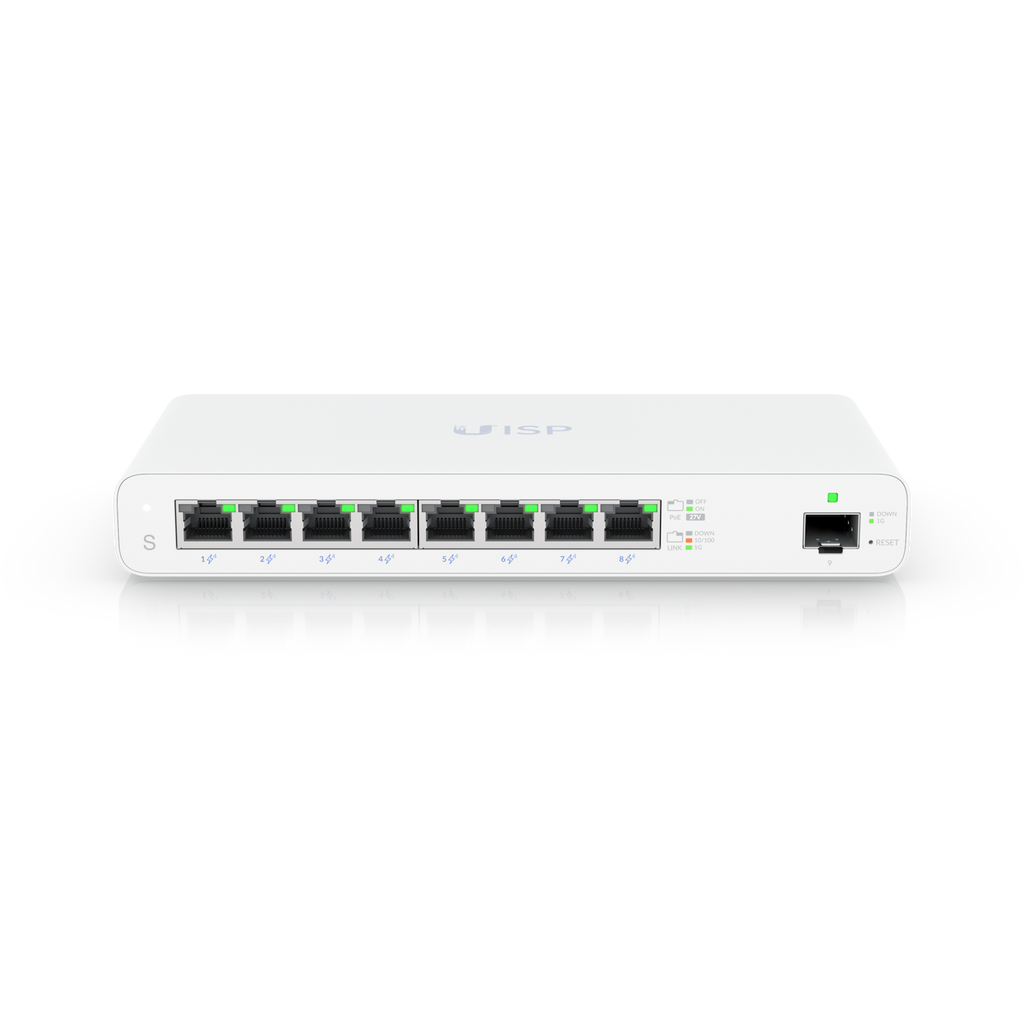

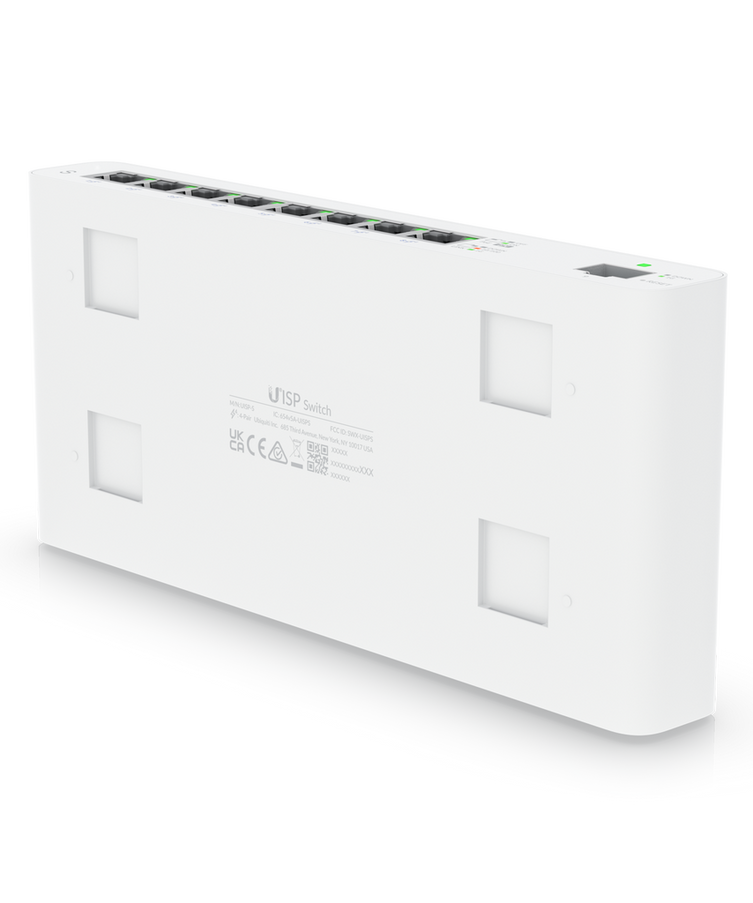

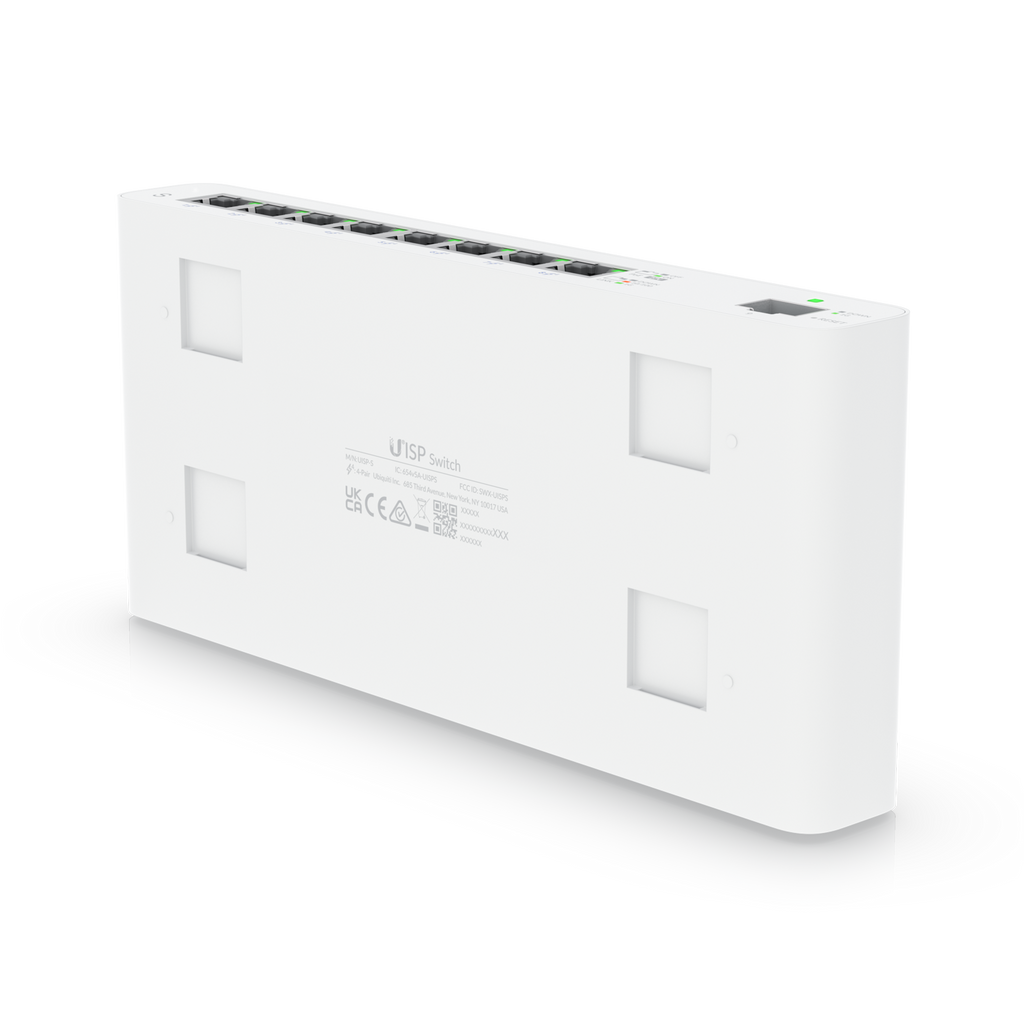

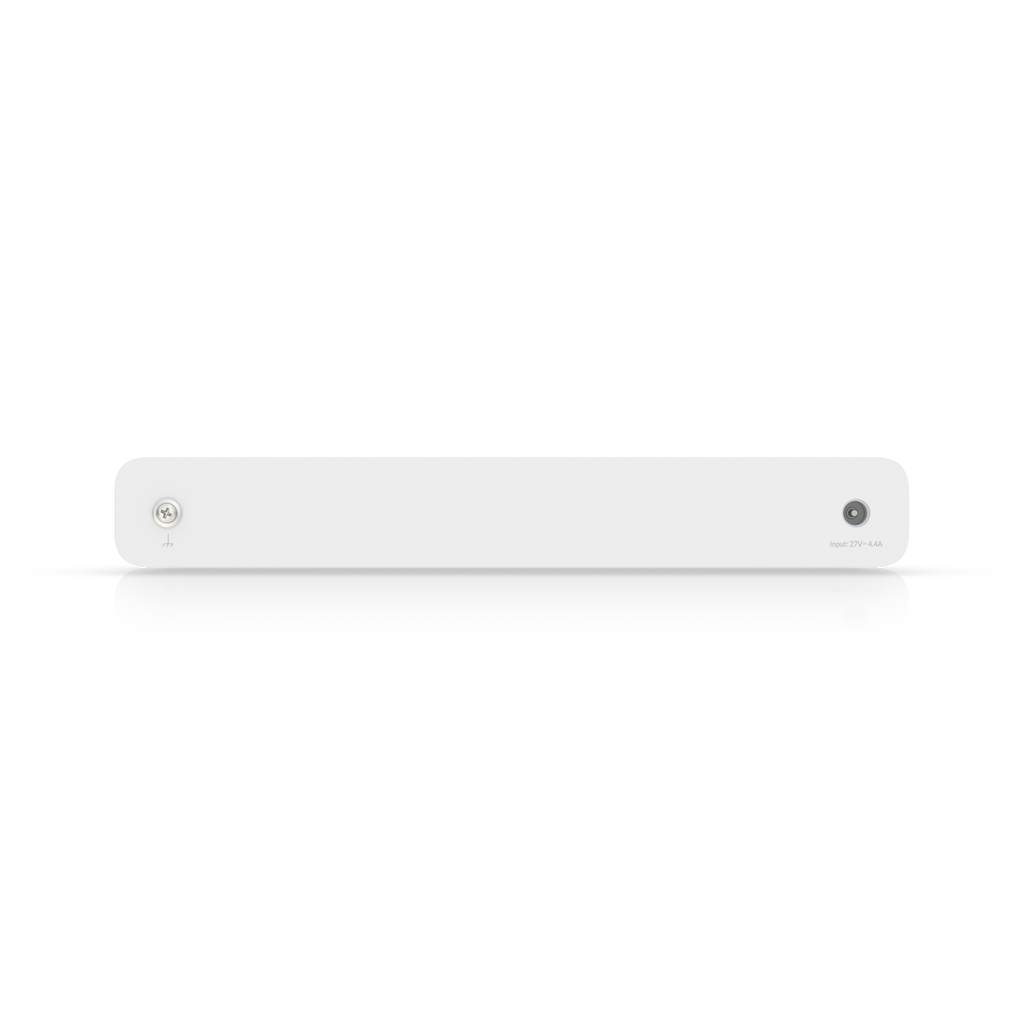

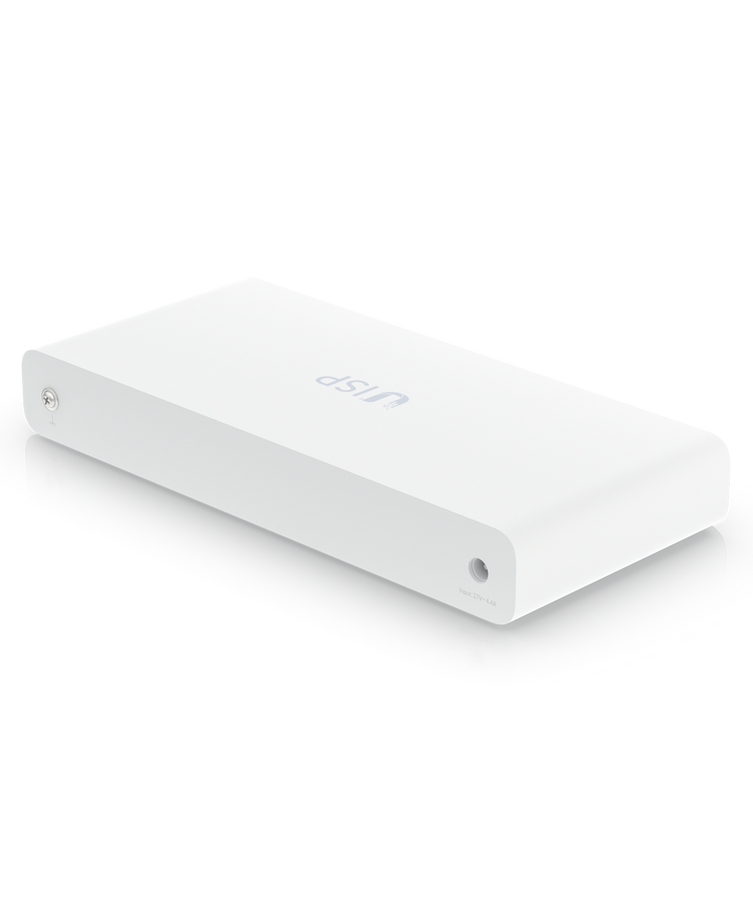

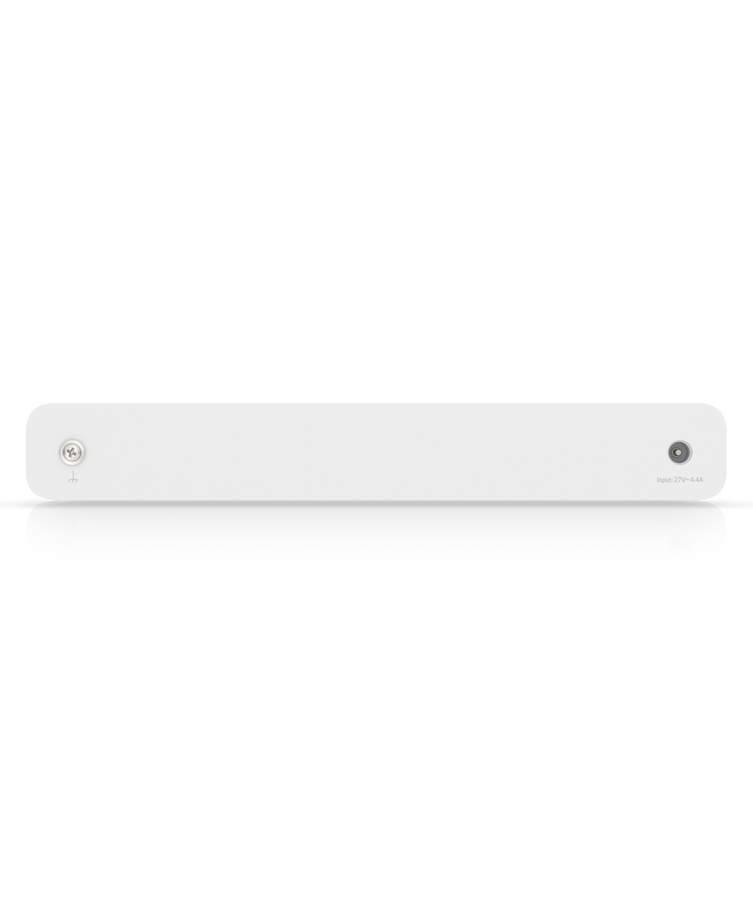

Ubiquiti Networks UISP-S UISP Switch

MPN: UISP-S

SKU: UBI-UISP-S

$149


  • (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes

  • (1) 1G SFP port

  • 110W PoE supply when powered with the included AC/DC adapter

  • Fanless, thermal cooling for silent operation

  • Wall-mountable (kit included)

  • Layer 2 switching features

Availability Out of Stock – Available to Backorder
Ask about this product
Delivery and Return
Description

UISP Switch

Gigabit PoE switch for MicroPoP applications.

Ideal for wireless ISP (WISP) deployments, the UISP™ Switch is a fanless, Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option. The UISP Switch is a cost-effective solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Switch delivers substantial power to every radio in your service network. For larger deployments, pair it with the UISP Console to create a cohesive routing and switching hub. The UISP Switch is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.



Features:

  • (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
  • (1) 1G SFP port
  • 110W PoE supply when powered with the included AC/DC adapter
  • Fanless, thermal cooling for silent operation
  • Wall-mountable (kit included)
  • Layer 2 switching features
  • Easy, Bluetooth-powered setup via the UISP Mobile app
Mechanical
Dimensions

210.4 x 95 x 29 mm (8.28 x 3.74 x 1.14")
Weight

610 g (1.34 lb)
Enclosure material

Polycarbonate
Hardware
Total non-blocking throughput

9 Gbps
Switching capacity

18 Gbps
Forwarding rate

13.392 Mpps
Networking interface

(8) 10/100/1000 MbE RJ45 ports
(1) 1G SFP port
Management interface

Ethernet in-band

Bluetooth BLE
Power method

External AC/DC adapter
Power supply

27VDC, 4.4A power adapter (included)
Supported voltage range

24 - 28VDC
Max. power consumption

8W (excludes PoE output)
ESD/EMP protection

Air: ± 15 kV, contact: ± 8 kV
Operating temperature

-10 to 50° C (14 to 122° F)
Operating humidity

5 to 95% non-condensing
Certifications

CE, FCC, IC
PoE
PoE interface

(8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
Max. Passive PoE wattage per port

30W/27VDC
Passive PoE voltage range

27VDC
LEDs
System

Status
RJ45 data ports

PoE
Speed/link/activity
SFP data ports

Link/activity
