Ubiquiti Networks

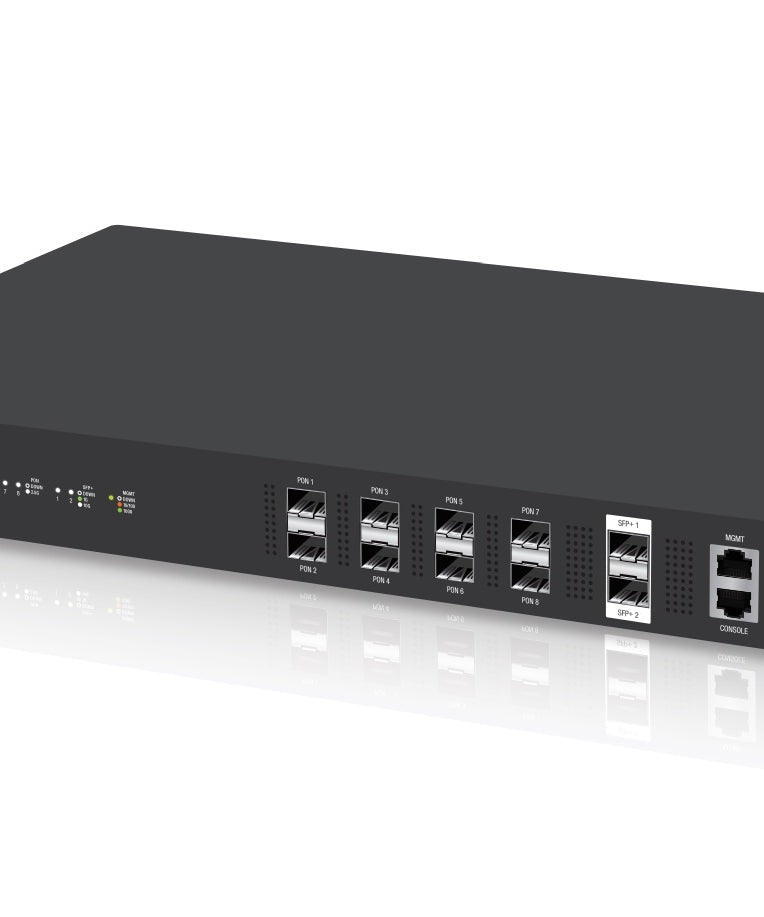

Ubiquiti Networks UF-OLT 8-Port GPON Optical Line Terminal
MPN: UF-OLT
SKU: UBI-UF-OLT
$1,799
Share
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285.6 x 43.7 mm(17.42 x 11.24 x 1.72") |
| Weight | Without Mount Brackets: 4.4 kg (9.70 lb) With Mount Brackets: 4.5 kg (9.91 lb) |
| Hardware | |
| Processor | MIPS 1004Kc 880 MHz Dual-Core |
| Data Ports Interfaces | (8) GPON Ports (2.488 Gbps TX/1.244 Gbps RX per Port) (2) 1G/10G SFP+ Ports |
| Serial Console Port Interfaces | (1) RJ45 Ethernet Port (1) RJ45 Serial Port |
| Max. Power Consumption | 40W (Excluding SFP Transceivers) |
| Power Method | 110 - 240VAC Modular PSU |
| Power Supply | (1) Hot-Swappable AC/DC 100W PSU (Included) |
| Supported Voltage Range | AC Input: 100 to 240VAC |
| Button | Reset |
| System Memory | 512 MB DDR3, 512 MB NAND |
| LEDs System PON Data Ports SFP+ Data Ports RJ45 (MGMT) Port | Status Link/Activity Link/ActivityLink/Activity Link/Activity |
| GPON SFP OLT Transceiver (UF-GP-B+ ) | Single Fiber, SM SC/UPC, 20 km,
1490 nm TX/1310 nm RX, ITU-T G984.2 Class B+ |
| Rackmount | Yes |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
